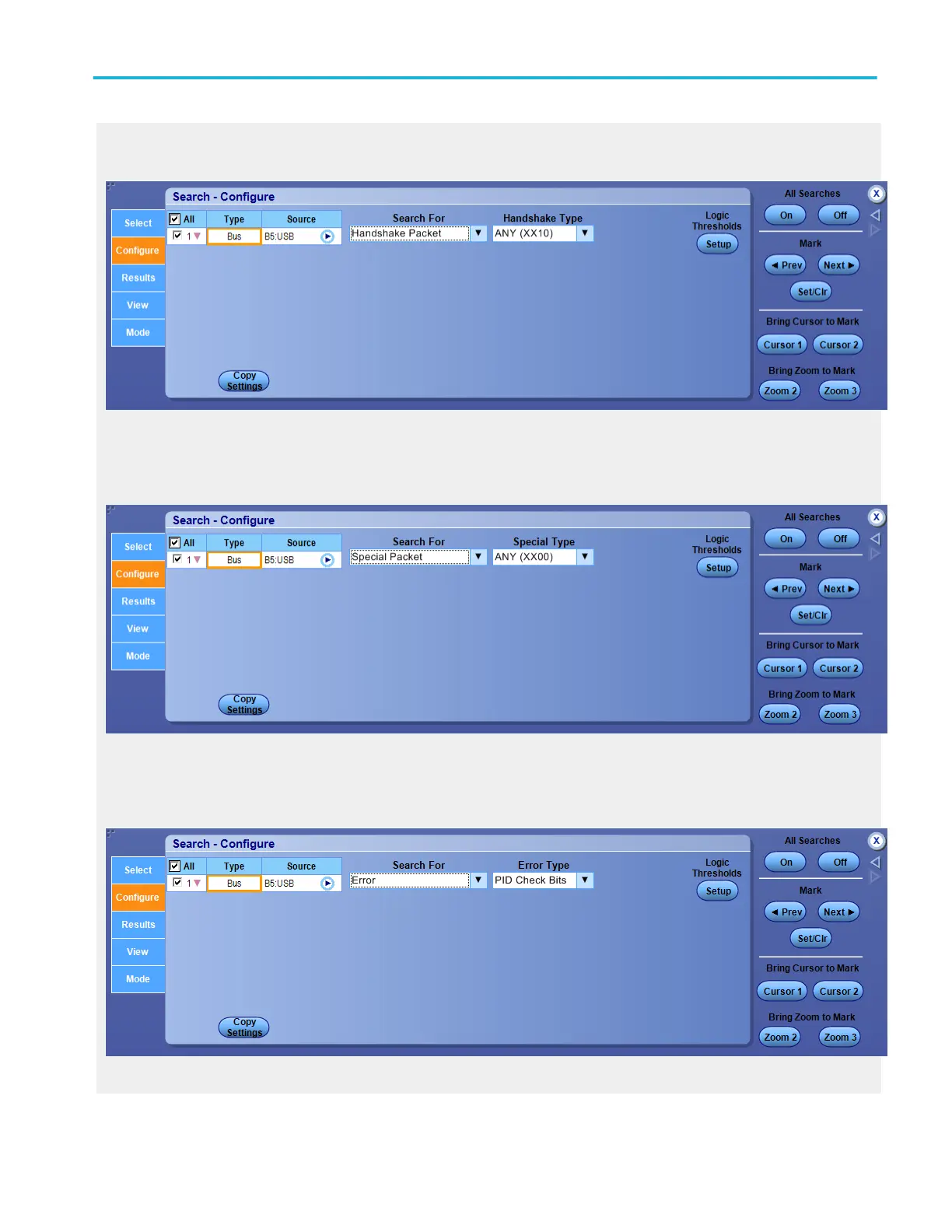

Search for handshake packet
The handshake packet option available in Search For Handshake Packet is Handshake Type.
Select the Handshake Type from the drop-down list. Click Setup to adjust the logic thresholds.
Search for special packet
The special packet option available in Search For Special Packet is Special Type.
Select the Special Type from the drop-down list. Click Setup to adjust the logic thresholds.
Search for error
The Error option available in Search For Error is Error Type.
Select the Error Type from the drop-down list. Click Setup to adjust the logic thresholds.
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 329
