XY cursor readout Cursor type Display format Cursor position
Rectangular Waveform and Screen XY Shown as rectangular
coordinate positions. There are
nine readouts for Waveform
cursors and six for Screen
cursors.
Polar Waveform and Screen XY Shown as polar coordinate
positions. There are nine
readouts for Waveform cursors
and six for Screen cursors.
Product Waveform and Screen XY Shown as rectangular
coordinates and the X vertical
value is multiplied by the Y
vertical value. There are six
readouts for Waveform cursors
and three for Screen cursors.
Ratio Waveform and Screen XY Shown as rectangular
coordinates and the Y vertical
value is divided by X vertical
value.

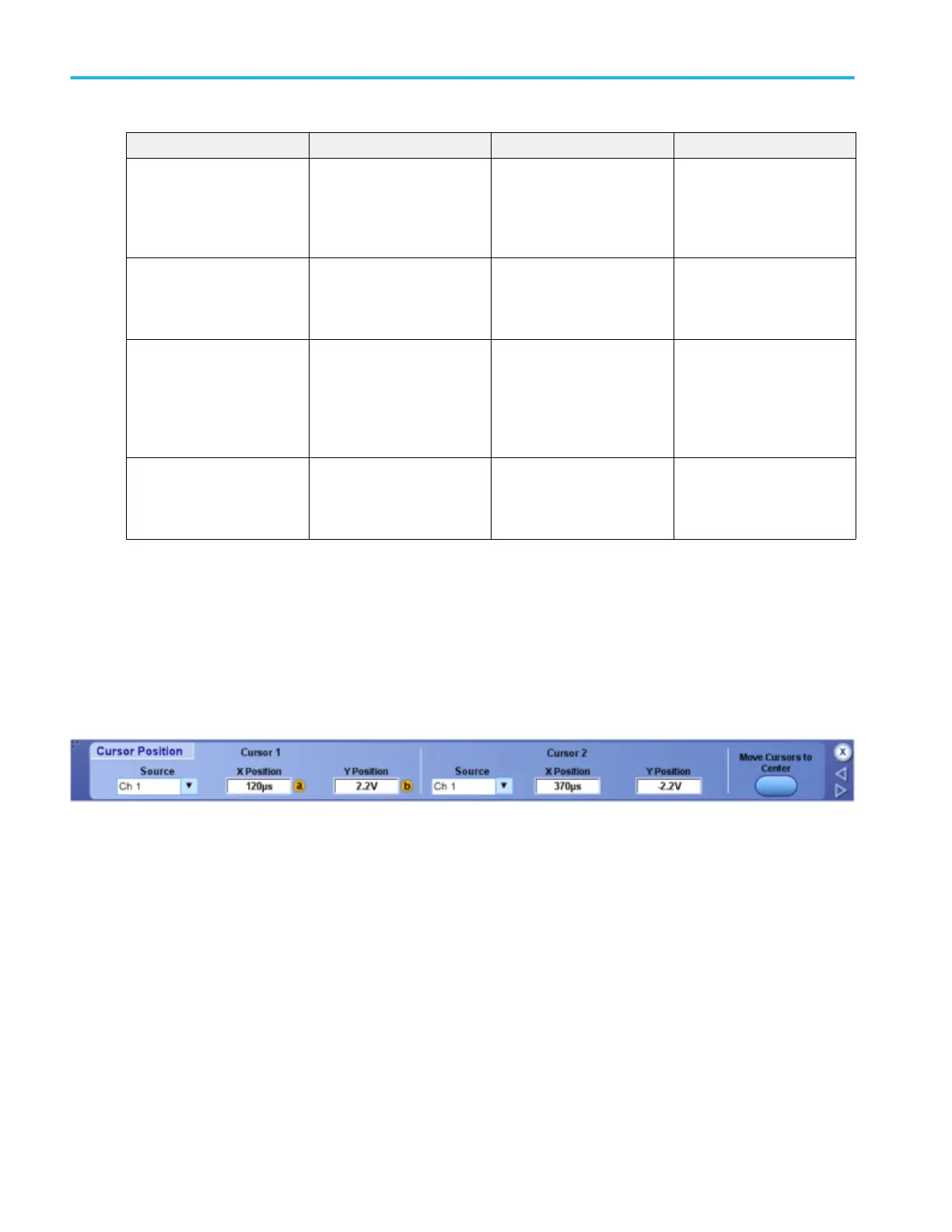

Cursor position control window
From the Cursor menu, select Cursor Position.
Overview
Use the Cursor Position control window to position the cursors with the multipurpose knobs.
To use
1. Click the Source drop-down list to select the measurement source for the cursor.
2. Click in one of the cursor Position entry boxes, and use a multipurpose knob to enter the cursor position.
Cursor setups
90 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
