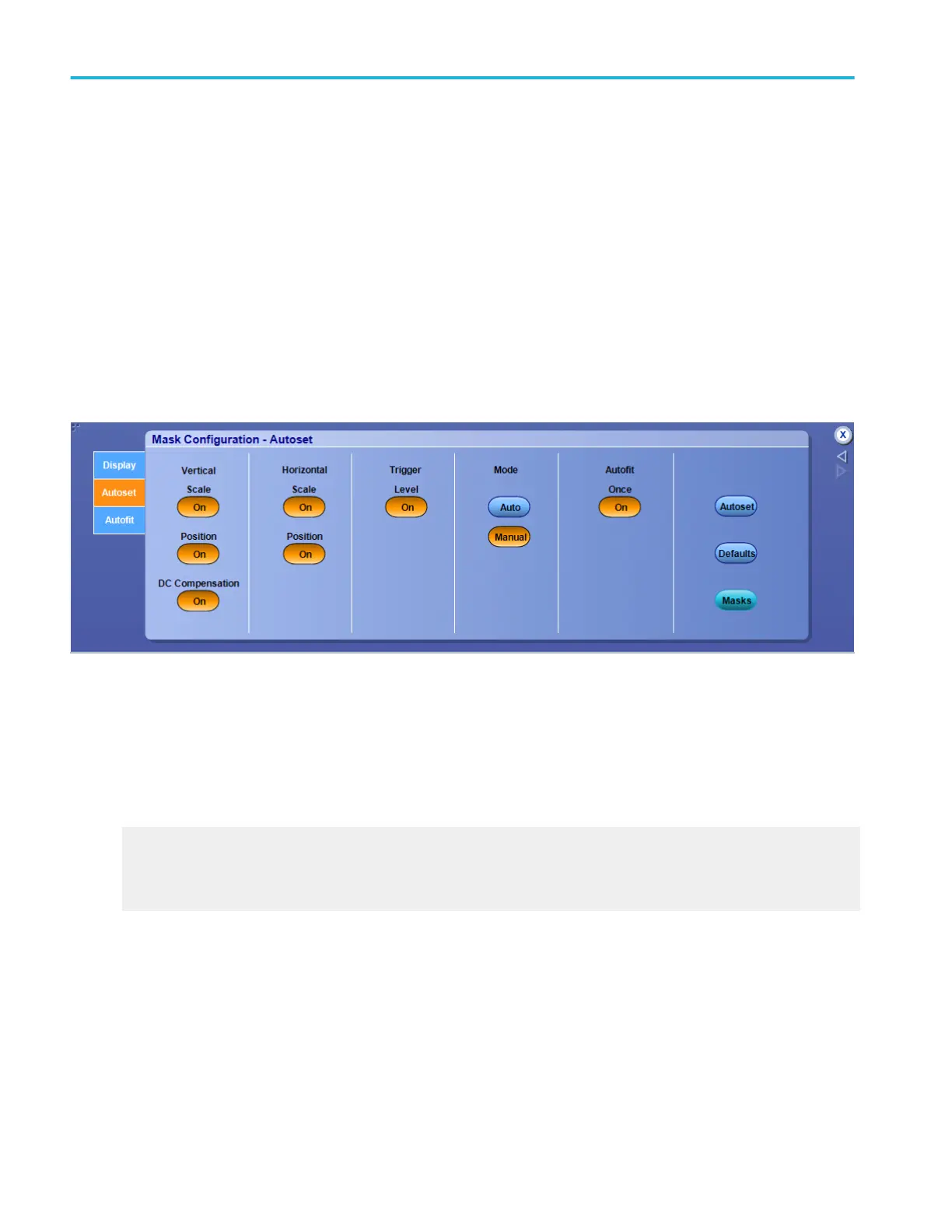

Configure mask autoset. From the Mask menu, highlight Mask Configure; then select Autoset. From the Mask Testing control

window, click the Autoset Config button.

Use this control window to set the vertical, horizontal, and trigger autoset parameters, activate autofit or autoset, choose the

autoset mode, return to the default autoset configuration, or go to the Mask Testing control window.

For information on the controls, click the buttons.

■

Vertical

■

Horizontal

■

Trigger

■

Mode

■

Autofit

To use.

■

Click Autoset to align the signal within the mask. This operates the same as the Autoset button on the front panel.

■

Click Defaults to return the instrument to the default autoset configuration.

■

Click Masks to replace this control window with the Mask Testing control window.

What do you want to do next?

Go to the Mask Setup control window.

Learn about mask display configuration.

Learn about mask autofit configuration.

Mask testing setups

222 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
