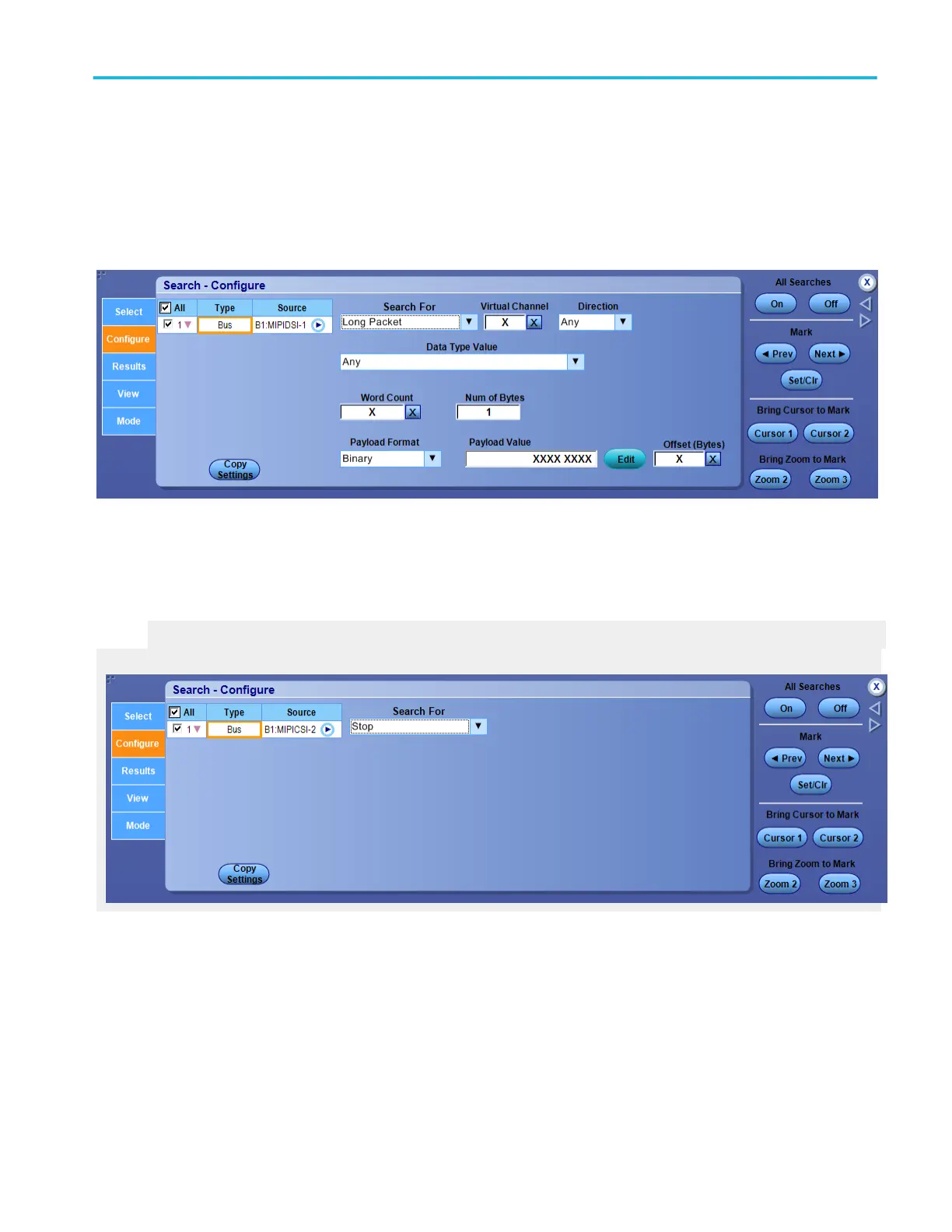

For some Search For selections, you must set additional fields to define other parameters such as for a Long Packet.
In this example, you need to set a Data Type Value, Virtual Channel, Direction, Word Count, Number of Bytes, Payload
Format, Payload Value, and Byte Offset (click the Edit button). Optionally, you can also set the component threshold levels
through the Logic Thresholds Setup button.
Click the Search For selections Stop, Start of Transmission, End of Transmission, Bus Turn Around, Escape Mode, Warning,
Error, Short Packet, or Long Packet to view their parameters.
What do you want to do next?
Learn about bus setups.
Search for stop
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 333
