Behavior. Use this sequence to trigger the instrument on the nth occurrence of the B event after the A event.

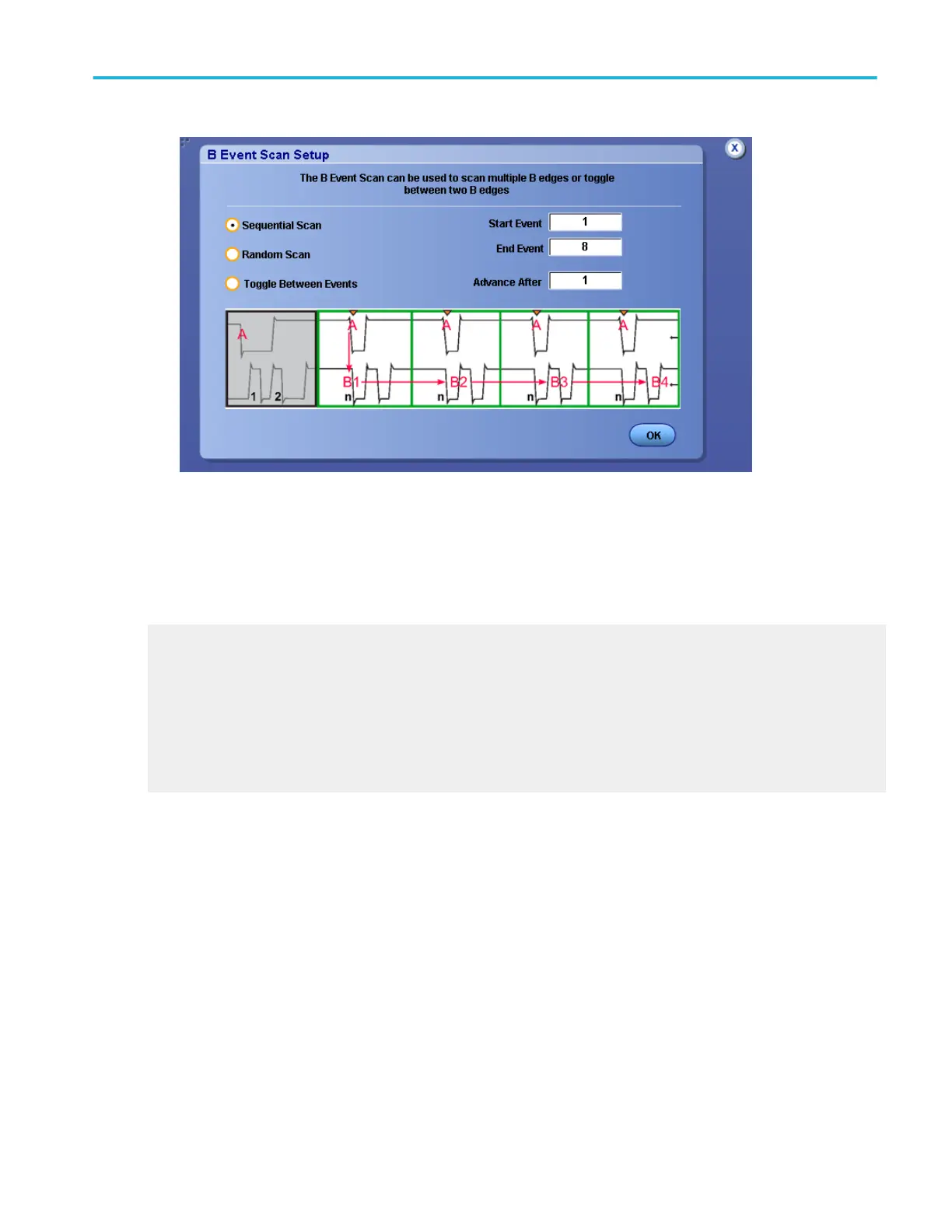

When you enable the B-Event Scan, the instrument automatically advances the B-Event value to capture a different portion of the
signal. The B-Event value is initialized to the Start Event value and is advanced to the End Event value by one of three Advance
Methods: Sequential, Random, and Toggle.
What do you want to do next?
Learn more about B-Event scan setup.
Learn more about other trigger types.
Return to the Trigger Setup control window.
Trigger on nth Event (Horizontal Delay Off).
Trigger on nth Event (Horizontal Delay On).
Trigger on nth Event (B-Event Scan and Horizontal Delay On).
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 457
