Operating Considerations
2
P6137 10X Passive Probe Instructions

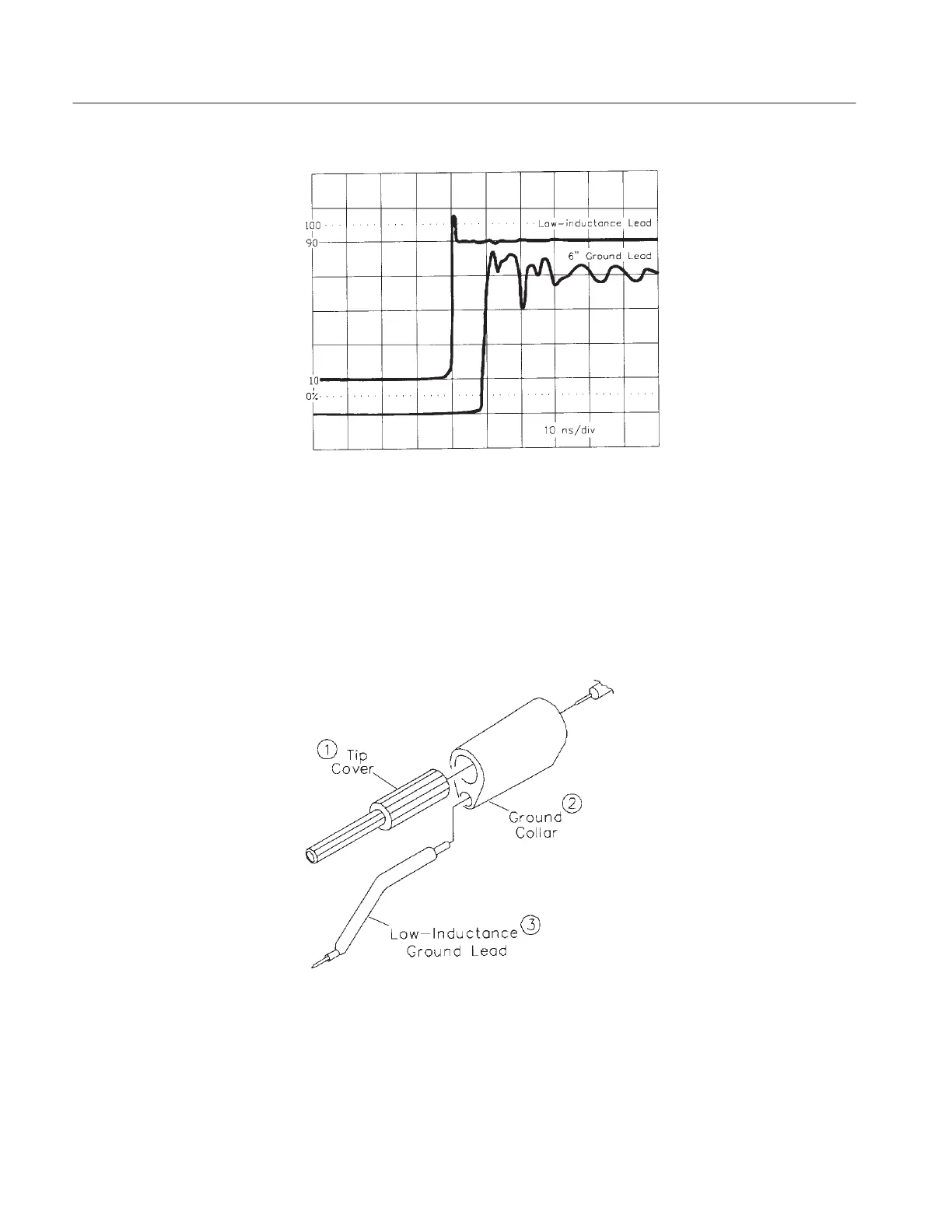

Figure 2: Typical response with a 6-inch ground lead (Tr = 2 ns)
The Low-Inductance Lead (shown in Figure 3) provided with all P6137 probes
allows for a substantial reduction of ground-lead inductance (32 nH instead of
140 nH). Remove the ribbed plastic tip cover (1), install the ground collar (2), so
that the socket is pointing toward the probe tip. Reinstall the ribbed cover. Insert
the Low-Inductance Lead (3), from the accessory pack, into the ground socket.
Figure 3: Low-inductance lead
