P6137 10X Passive Probe Instructions
7
Parts Replacement
NOTE. Probe adjustment may be necessary after assembly replacement (refer to
the adjustment procedures).
The probe tip assembly, compensation box, and cable are available as separate
units through your local Tektronix field Office or representative. Individual
components within the compensation box are not replaceable.
Compensation Box/Cable Disassembly and Replacement
Use the following procedure to disassemble and replace the compensation box or
the cable assembly (refer to Figure 8 for parts nomenclature).

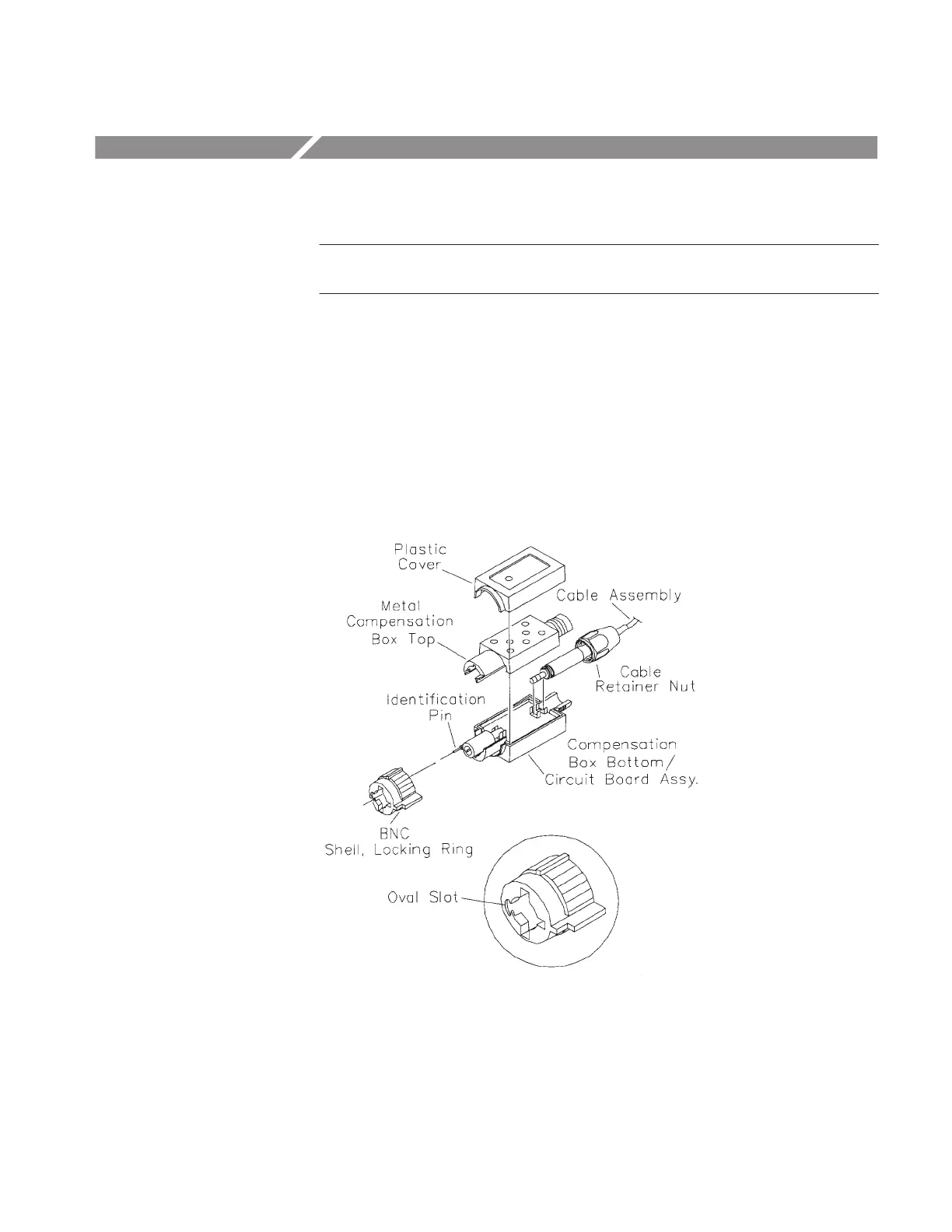

Figure 8: Compensation box assembly
