Probe Adjustment/Maintenance
6
P6137 10X Passive Probe Instructions

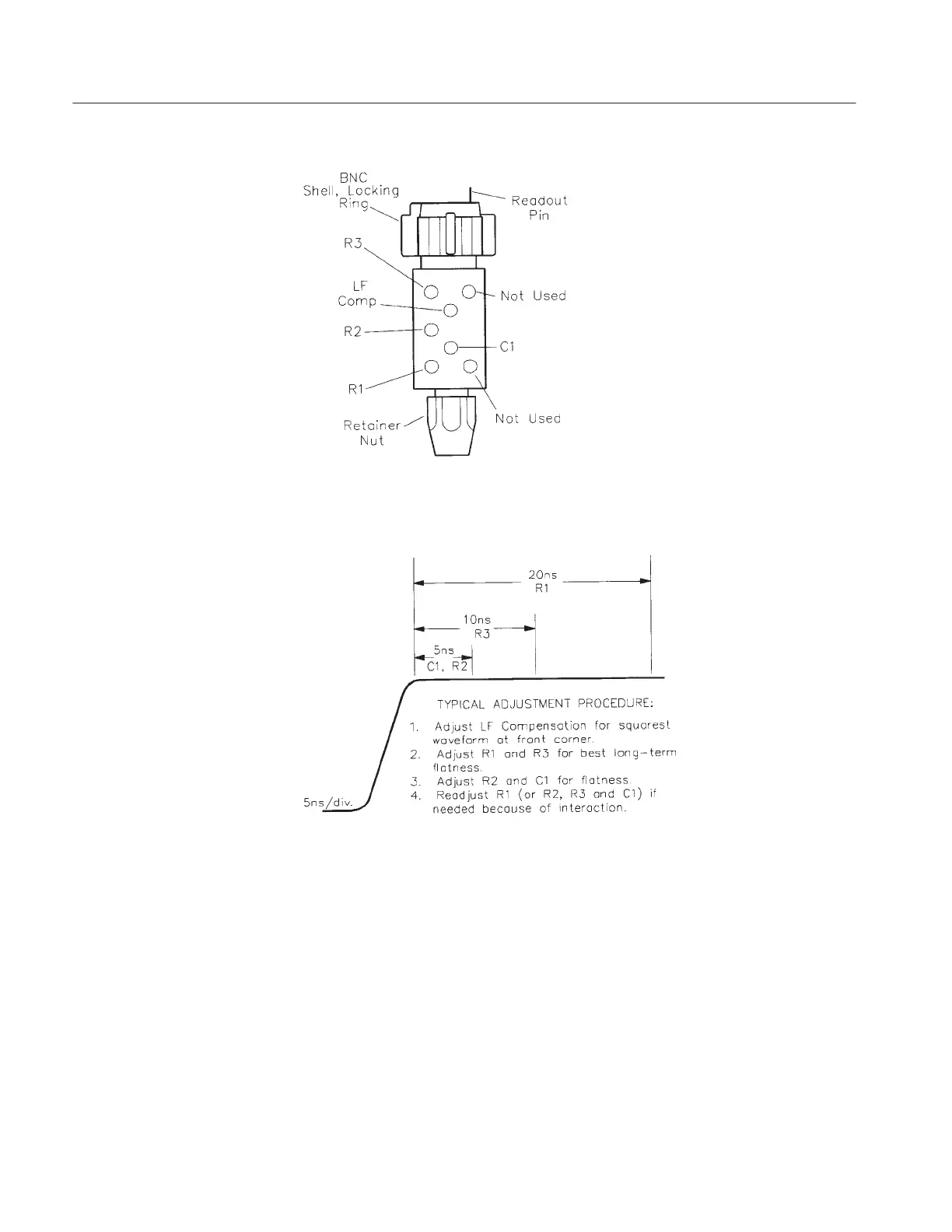

Figure 6: Location of compensation adjustments
Figure 7: Effect of compensation adjustments
Cleaning
Accumulated dirt can be removed with a soft cloth dampened with a non-residue
type cleaner, preferably isopropyl alcohol. Before using any other type of
cleaner, consult your Tektronix Service Center or representative. In particular,
avoid benzene, toluene, xylene, acetone, or similar solvents.
