P6137 10X Passive Probe Instructions
3
Specifications
The P6137 is a compact, 1.5 meter 10X, passive voltage probe designed
specifically for use with the Tektronix 2400 Series oscilloscopes. It is fully
compatible with the Tektronix family of compact probe accessories.
Table 1: Electrical Characteristics (Probe installed on 2400 Series
Oscilloscopes)
Characteristic Description
Attenuation 10X ±1% at DC
Input Impedance (System) 10 MW shunted by 10.8 pF at DC (See Figure 4)
Compensation Range 12 pF to 18 pF
Signal Delay Delay difference between any two probes of equal
length is <200 ps
System Bandwidth (–3 dB, using a
properly terminated 50 W source)
With 2467X or 2465B oscilloscopes >400 MHz
With 2467 or 2465A oscilloscopes >350 MHz
With 2455X oscilloscopes >250 MHz
With 2445X oscilloscopes >200 MHz
Maximum Non-Destructive Input Voltage 500 V (DC + peak AC) to 1.3 MHz (See Figure 5 for
voltage curve.)

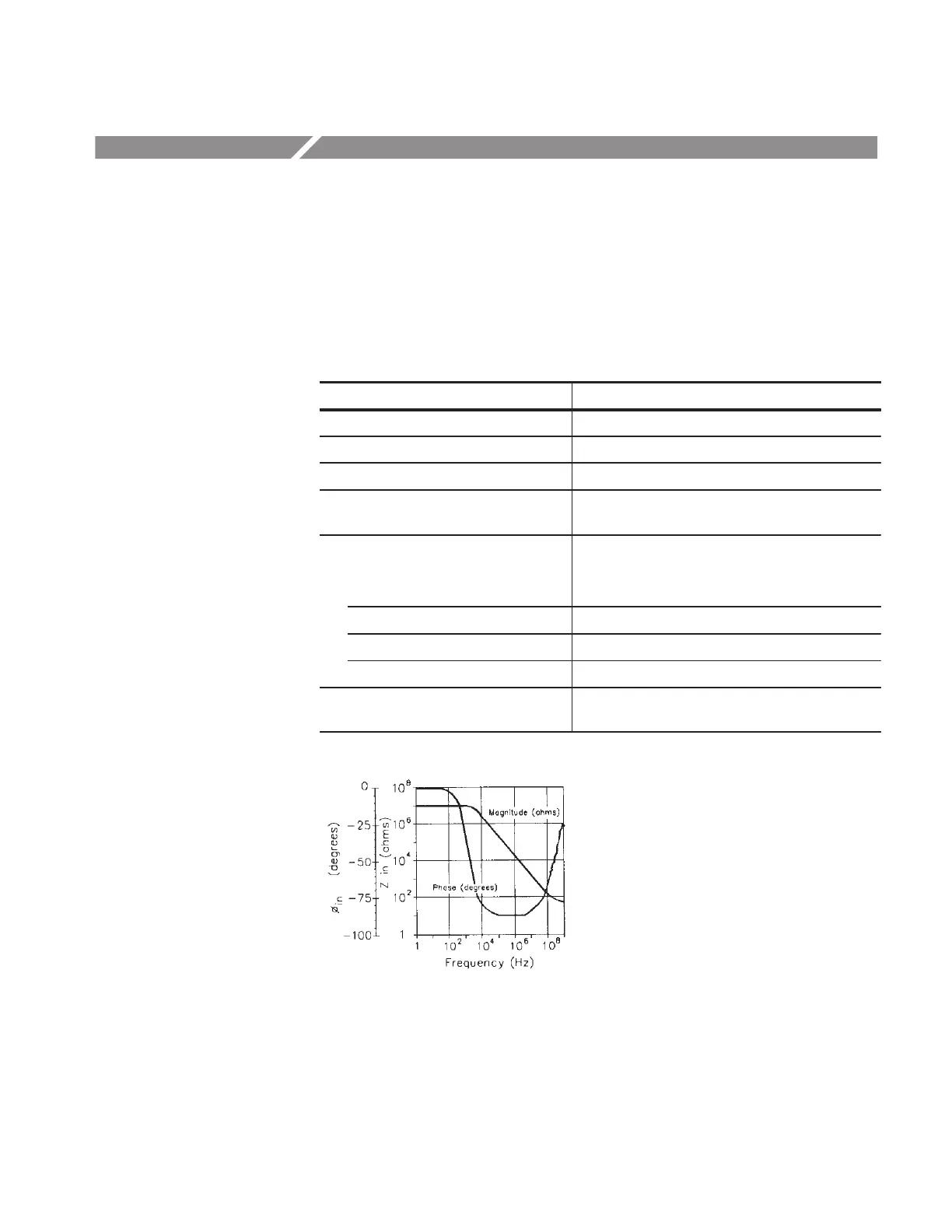

Figure 4: Typical input impedance
