Parts Replacement
10
P6137 10X Passive Probe Instructions

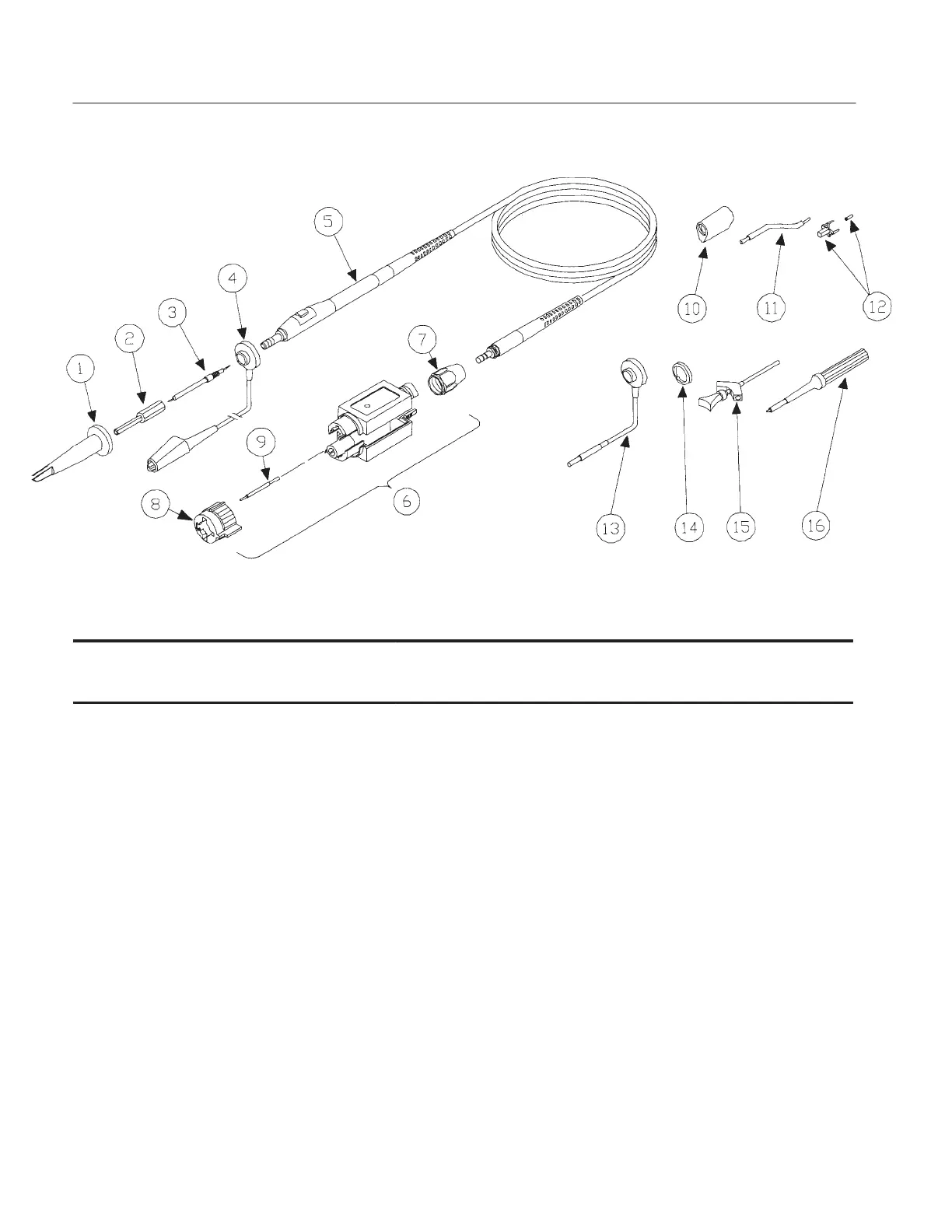

Replaceable parts list
Fig. &
index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont’d
Qty Name & description Mfr. code Mfr. part number
1 013–0107–06 9139 1 TIP,PROBE:MINIATURE/COMPACT
SIZE,RETRACTABLE HOOK ASSY
80009 013–0107–06
013–0107–07 9140 1 TIP, PROBE:RETRACTABLE HOOK TIP, SLATE
GRAY, FOR 5MM PROBES SAFETY CONTROLLED
TK2565 013–0107–07
2 204–1049–00 1 BODY SHELL:TIP COVER, SAFETY CONTROLLED TK2565 204–1049–00
3 206–0378–00 1 PROBE TIP ASSY:10X,11.8PF,9M OHM 80009 206–0378–00
4 344–0398–00 8935 1 CLIP,ELECTRICAL:ALLIGATOR,0.155 L,STL CS PL 80009 344–0398–00
196–3305–00 8936 1 LEAD, ELECTRICAL:22 AWG, 6.0 L, WITH CLIP,
SAFETY CONTROLLED
060D9 196–3305–00
5 174–1081–01 8829 1 CABLE ASSY,RF:50 OHM COAX,1.5MW/CONN
SHELL
80009 174–1081–01
174–1081–03 8830 8908 1 CABLE ASSY,RF:50 OHM COAX,1.5M
L,W/CONNSHELL
80009 174–1081–03
174–1081–04 8909 1 CABLE ASSY,RF:50 OHM COAX,1.5 L,W/CONN
SHELL
80009 174–1081–04
6 206–0389–00 8908 1 COMP BOX ASSY:1.5 METER,P6137 80009 206–0389–00
206–0389–01 8909 1 COMP BOX ASSY:1.5M,P6137 80009 206–0389–01
7 220–0099–00 1 NUT,RETAINING:CABLE/COMP BOX TK1287 ORDER BY
DESCRIPTION
8 205–0192–00 8908 1 SHELL,ELEC CONN:BNC,ACETAL,DOVE GRAY 80009 205–0192–00
205–0192–01 8909 1 SHELL,ELEC CONN:BNC,ACETAL,DOVE GRAY TK2565 205–0192–01
