Tektronix P6139A User Manual

Specifications
4
P6139A Instructions
@25% Duty Factor
=(1/2 Peak V) RMS
@50% Duty Factor
=(1.414 (Peak V)) RMS
Special case of square wave:
@20% Duty Factor
=[(V
Peak
)
2
(Duty Factor)]
1/2
Example: Maximum Input Voltage
=[(930 V Pk)
2
(.20)]
1/2
= 415 V RMS
0V
0V
0V

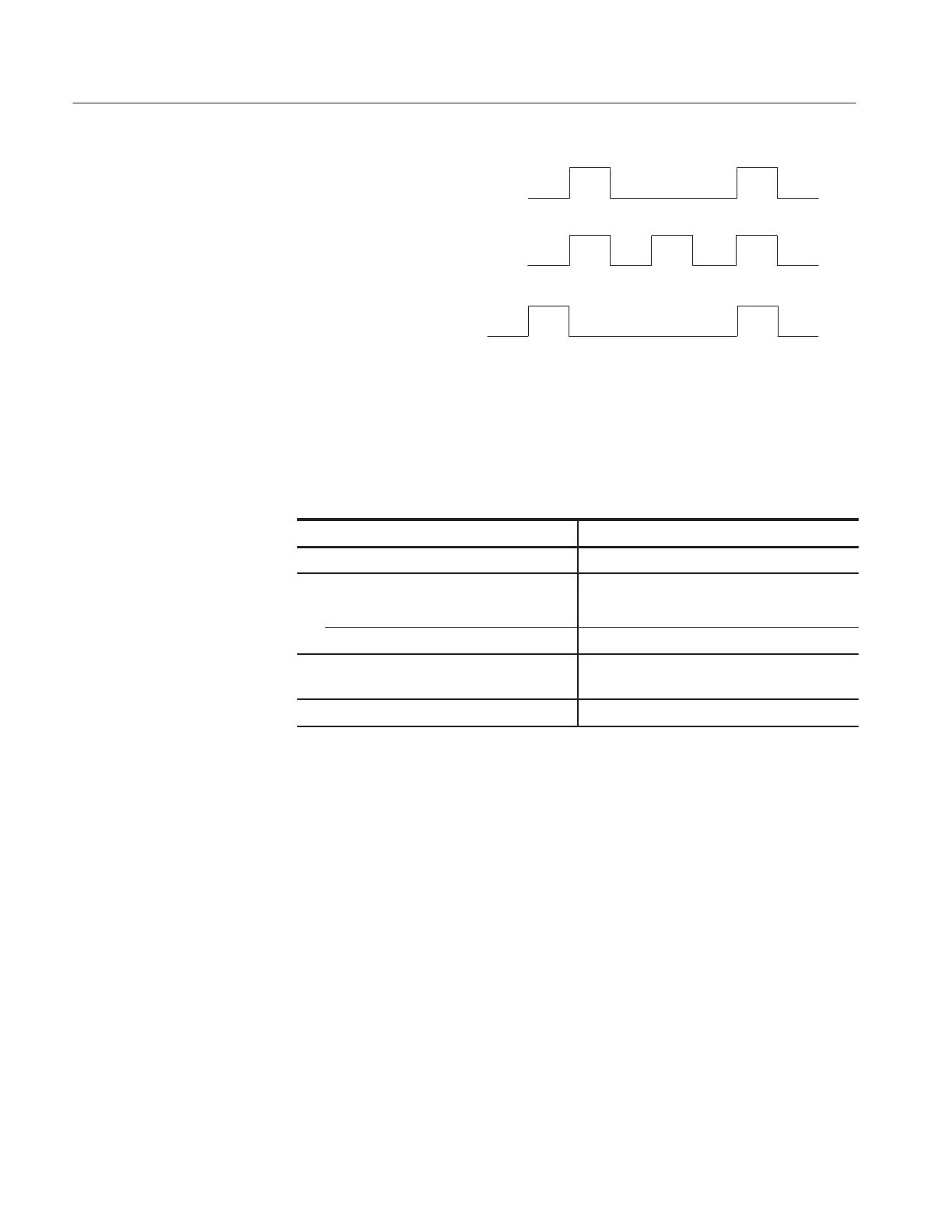

Figure 2: Maximum input voltage calculation example
Table 3: Physical and environmental characteristics
Characteristic Description
Net Weight (Including Accessories) <110 g (0.24 lb)
Temperature Range
Operating –15_ C to +65_ C (+5_ F to +149_ F)
Nonoperating –62_ C to +85_ C (–80_ F to +185_ F)
Humidity
1
Five cycles (120 hr) at 95% to 97% relative
humidity
Altitude < 2000 meters
1
Tektronix standard 062-2847-00, class 3. Refer to MIL-E-16400F, paragraph 4.5.9
through 4.5.9.5.1, class 4.
