Tektronix T921 - Page 187

Fig .
&
Index

Tektronix

Serial/Model No .

Mfr
N o .

Part No .

Eff

Dscont

Qty 1 2 3 4 5

Name & Description

Code

Mfr Part Number
REV
.
C JULY
1977

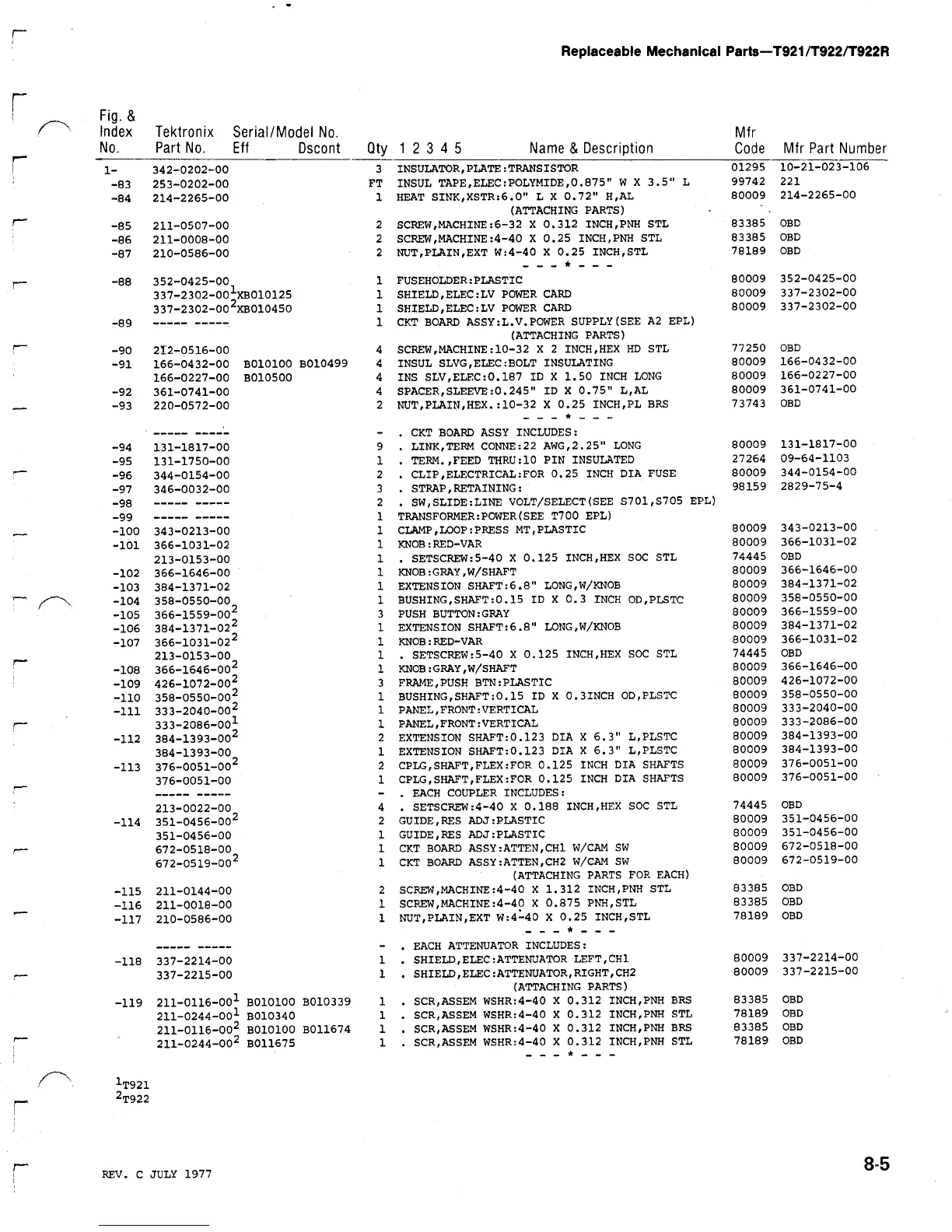

Replaceable Mechanical Parts-T921/T922/T922R
8-5
1-
342-0202-00 3
INSULATOR,PLATE:TRANSISTOR 01295 10-21-023-106
-83 253-0202-00
FT INSUL TAPE,ELEC :POLYMIDE,0
.875" W X 3 .5" L 99742 221
-84
214-2265-00 1 HEAT SINK,XSTR
:6 .0" L X 0 .72" H,AL 80009 214-2265-00
(ATTACHING PARTS)
-85
211-0507-00
2 SCREW,MACHINE :6-32 X 0 .312 INCH,PNH STL 83385 OBD
-86
211-0008-00 2 SCREW,MACHINE :4-40
X 0 .25 INCH,PNH STL 83385
OBD
-87 210-0586-00
2 NUT,PLAIN,EXT W :4-40 X 0 .25 INCH,STL 78189
OBD
-88 352-0425-00 1
FUSEHOLDER :PLASTIC
80009 352-0425-00
337-2302-00 l xB010125 1
SHIELD,ELEC :LV POWER CARD
80009 337-2302-00
337-2302-00 2 XBO10450
1 SHIELD,ELEC :LV POWER CARD
80009 337-2302-00
-89 ----- -----
1 CKT BOARD ASSY :L .V .POWER SUPPLY(SEE
A2 EPL)
(ATTACHING PARTS)
-90 212-0516-00
4 SCREW,MACHINE :10-32
X 2 INCH,HEX HD STL 77250 OBD
-91 166-0432-00 B010100B010499 4 INSUL SLVG,ELEC :BOLT
INSULATING 80009
166-0432-00
166-0227-00 BO10500 4 INS SLV,ELEC :0
.187 ID X 1 .50 INCHLONG
80009 166-0227-00
-92 361-0741-00 4 SPACER,SLEEVE :0 .245"
ID X 0 .75" L,AL 80009
361-0741-00
-93 220-0572-00
2 NUT,PLAIN,HEX . :10-32 X 0 .25 INCH,PL BRS
73743 OBD
---------- - . CKT BOARD ASSY INCLUDES :
-94 131-1817-00
9 . LINK,TERMCONNE :22 AWG,2 .25" LONG
80009 131-1817-00
-95 131-1750-00
1 . TERM .,FEED THRU :10 PIN INSULATED
27264 09-64-1103
-96 344-0154-00
2 . CLIP,ELECTRICAL :FOR 0 .25 INCH DIA
FUSE 80009 344-0154-00
-97 346-0032-00
3 . STRAP,RETAINING :
98159 2829-75-4
-98 ----------
2 . SW,SLIDE :LINE VOLT/SELECT(SEE
S701,S705 EPL)
-99 ----------
1 TRANSFORMER :POWER(SEE T700 EPL)
-100 343-0213-00
1 CLAMP,LOOP :PRESS MT,PLASTIC
80009 343-0213-00
-101 366-1031-02
1 KNOB:RED-VAR
80009
366-1031-02
213-0153-00 1 .
SETSCREW :5-40 X 0 .125 INCH,HEX SOC
STL 74445 OBD
-102 366-1646-00
1 KNOB :GRAY,W/SHAFT
80009
366-1646-00
-103 384-1371-02
1 EXTENSIONSHAFT :6 .8"
LONG,W/KNOB 80009
384-1371-02
-104 358-0550-00
1 BUSHING,SHAFT :0 .15 ID
X 0 .3 INCH
OD,PLSTC
80009 358-0550-00
-105 366-1559-00
2 3 PUSH BUTTON:GRAY
80009
366-1559-00
-106
384-1371-02 2 1 EXTENSION
SHAFT :6 .8" LONG,W/KNOB
80009 384-1371-02
-107 366-1031-02
2 1 KNOB :RED-VAR
80009 366-1031-02
213-0153-00
1 . SETSCREW :5-40 X 0 .125 INCH,HEX
SOCSTL 74445 OBD
-108 366-1646-00 2
1 KNOB :GRAY,W/SHAFT
80009
366-1646-00
-109 426-1072-00 2
3 FRAME,PUSH BTN :PLASTIC
80009 426-1072-00
-110 358-0550-00 2
1 BUSHING,SHAFT :0 .15 ID X 0 .3INCH
OD,PLSTC 80009
358-0550-00
-111
333-2040-00 2 1 PANEL,FRONT
:VERTICAL 80009
333-2040-00
333-2086-00 1 1 PANEL,FRONT
:VERTICAL
80009 333-2086-00
-112
384-1393-00 2
2 EXTENSIONSHAFT :0 .123 DIA X 6 .3" L,PLSTC
80009 384-1393-00
384-1393-00 1
EXTENSIONSHAFT :0 .123 DIA X 6 .3" L,PLSTC
80009 384-1393-00
-113
376-0051-00 2 2
CPLG,SHAFT,FLEX :FOR 0 .125 INCH DIA SHAFTS
80009 376-0051-00
376-0051-00 1
CPLG,SHAFT,FLEX :FOR 0 .125 INCH DIA SHAFTS
80009 376-0051-00
---------- - . EACH COUPLER INCLUDES :
213-0022-00
4 . SETSCREW :4-40 X 0 .188 INCH,HEX
SOC STL 74445 OBD
-114 351-0456-00 2
2 GUIDE,RES ADJ :PLASTIC
80009
351-0456-00
351-0456-00
1 GUIDE,RES ADJ :PLASTIC
80009 351-0456-00
672-0518-00
1 CKT BOARD ASSY :ATTEN,CH1
W/CAM SW
80009 672-0518-00
672-0519-00
2 1 CKT BOARD ASSY
:ATTEN,CH2 W/CAM SW
80009 672-0519-00
(ATTACHING PARTS FOR EACH)
-115
211-0144-00
2 SCREW,MACHINE :4-40 X 1 .312 INCH,PNH
STL 83385 OBD
-116
211-0018-00 1
SCREW,MACHINE :4-40 X 0 .875 PNH,STL
83385 OBD
-117
210-0586-00 1
NUT,PLAIN,EXT W :4-40 X 0 .25 INCH,STL
a
78189 OBD
---------- - .
EACHATTENUATOR INCLUDES :
-118
337-2214-00 1 .
SHIELD,ELEC :ATTENUATOR LEFT,CH1
80009 337-2214-00
337-2215-00 1 .
SHIELD,ELEC :ATTENUATOR,RIGHT,CH2
80009 337-2215-00
(ATTACHING PARTS)
-119 211-0116-00 1 B010100
B010339 1 . SCR,ASSEM WSHR :4-40 X 0 .312
INCH,PNH BRS 83385 OBD
211-0244-00 1 B010340
1 . SCR,ASSEM WSHR :4-40 X 0 .312
INCH,PNH STL 78189 OBD
211-0116-00
2 B010100 B011674 1 . SCR,ASSEM WSHR
:4-40 X 0 .312 INCH,PNH BRS 83385
OBD
211-0244-00
2 B011675 1 . SCR,ASSEM
WSHR :4-40 X 0 .312 INCH,PNH STL
78189 OBD
1 T921
2 T922
