Operating Instructions-T921/T922/T922R
v
v
NOWNWEEN
LEENNEEN
NEEMEN
Norm No
1982-49
@
FRONT-REAR-Pushbutton switch which selects
either the front or rear EXT TRIG or
X input
.
READY-An indicator, that when
lit indicates the
RESET button has been pushed and that a
single
sweep
will
be
presented when an adequate trigger
signal is received .
2- 1 0
another
single sweep display cannot be presented
until the
RESET button is pushed .

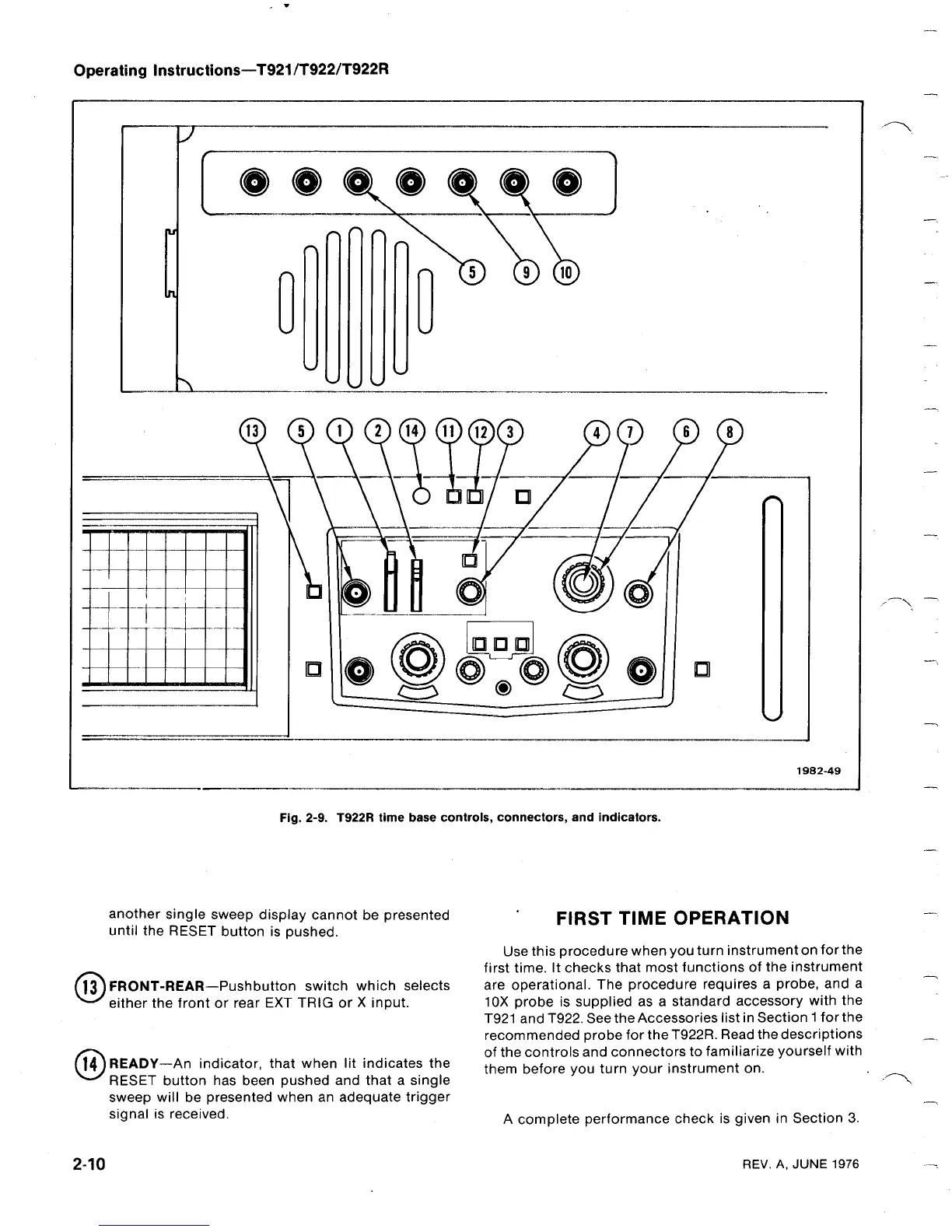

Fig . 2-9 . T922R time base controls, connectors, and indicators .
FIRST
TIME OPERATION
Use
this procedure when you turn instrument on forthe
first time . It checks that most functions of the
instrument
are operational . The procedure requires a
probe, and a
10Xprobe is supplied as a standard
accessory with the
T921 and T922 . Seethe
Accessories list in Section 1 for the
recommended probe for the T922R . Read thedescriptions
of the controls
and connectors to familiarize yourselfwith
them before you turn your instrument on .
A complete performance check is given in Section 3 .
REV . A, JUNE 1976
