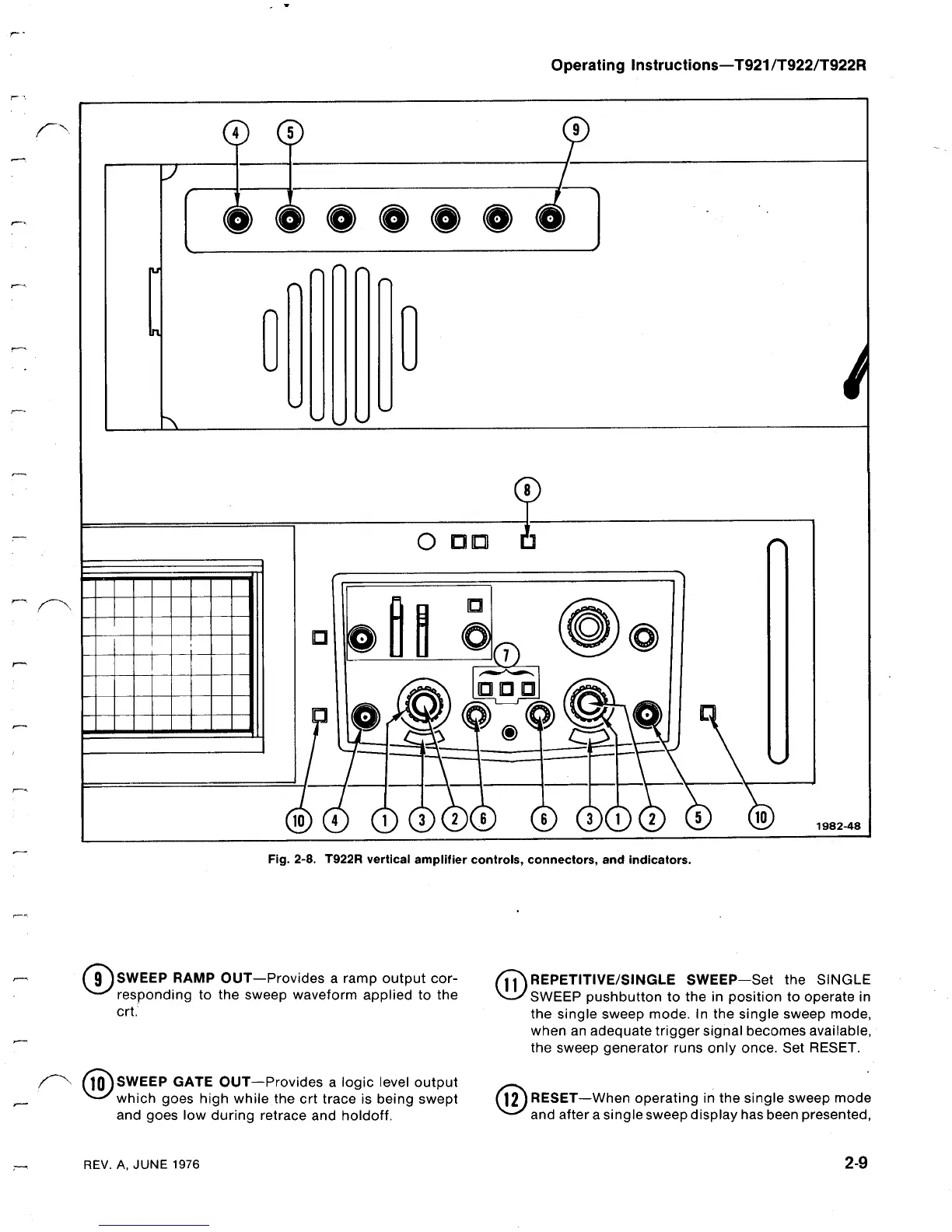

Fig . 2-8 . T922R vertical amplifier controls, connectors, and indicators .
O SWEEP RAMP OUT-Provides a ramp output cor-
responding to the sweep waveform applied to the
crt .
0
SWEEP GATE
OUT-Provides a logic level output
which goes high while the
crt trace is being swept
and goes low during retrace and holdoff .
REV . A,
JUNE
1976
Operating Instructions-T921/T922/T922R
1982-48
REPETITIVE/SINGLE SWEEP-Set the SINGLE
SWEEP pushbutton to the in position to operate in
the single sweep mode . In the single sweep mode,
when an adequate trigger signal becomes available,
the sweep generator runs only once . Set
RESET .
RESET-When operating in the single sweep mode
and after a single sweep display has been presented,
2- 9
