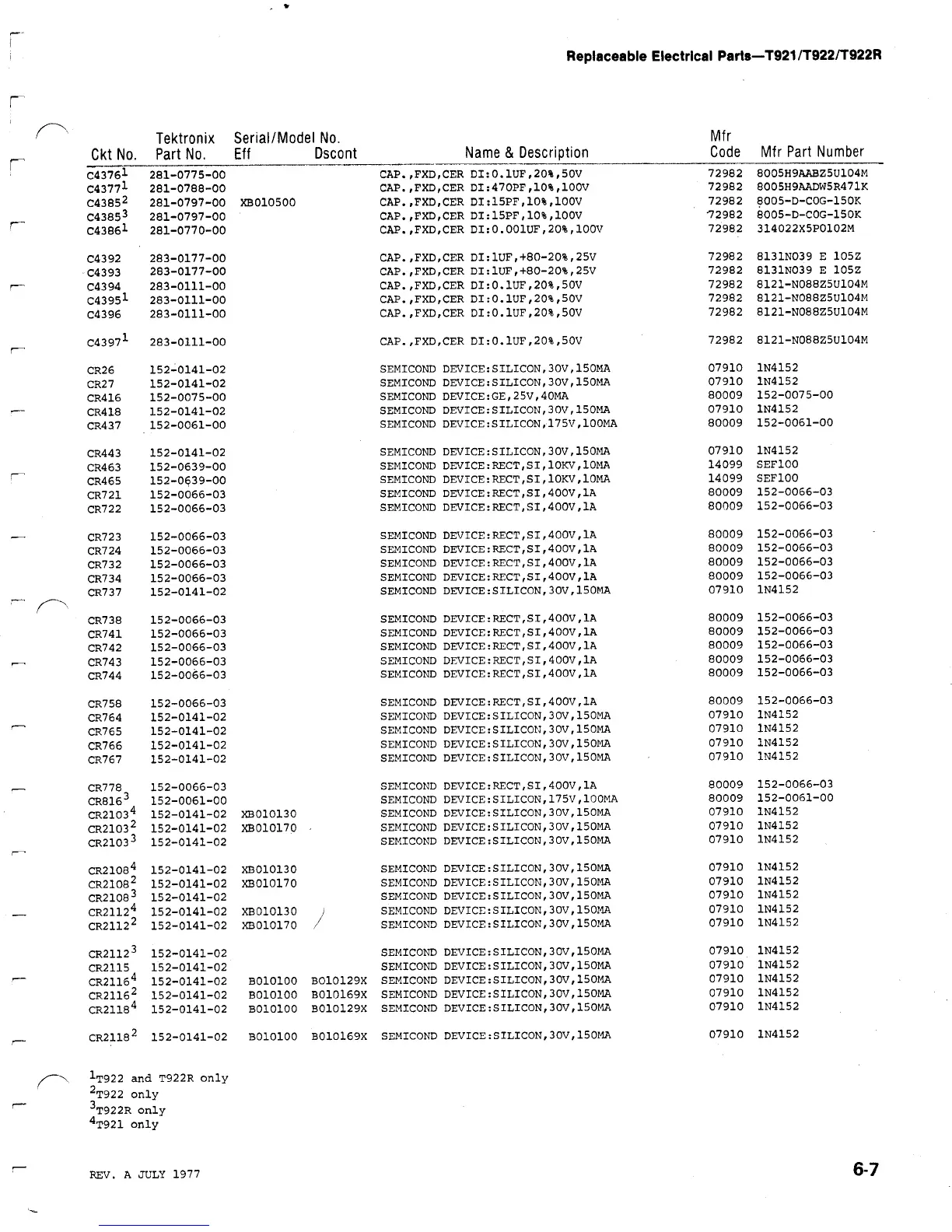

Tektronix T921 User Manual

Replaceable Electrical
Parts-T921/T922/T922R
1 T922 and
T922R only
2 T922 only
3 T922R only
4 T921
only
REV . A JULY 1977
Ckt No .
Tektronix
Part No .
Serial/Model
Eff
No .
Dsco n t
Name & D escrip tion
Mfr
Code Mfr Part
Number
C4376 1 281-0775-00
CAP .,FXD,CER DI :O .lUF,20%,50V 72982
8005H9AABZ5Ul04M
C4377 1
281-0788-00 CAP .,FXD,CER DI
:470PF,10%,100V 72982 8005H9AADW5R471K
C4385 2 281-0797-00
XBO10500 CAP .,FXD,CER DI :15PF,10%,100V
72982 8005-D-COG-150K
C4385 3
281-0797-00 CAP .,FXr),CERDI :15PF,10%,100V
'2982 8005-D-COG-150K
C4386 1
281-0770-00 CAP .,FXD,CER DI :0
.001UF,20%,100V 72982 314022X5PO102M
C4392
283-0177-00 CAP .,FXD,CER DI
:lUF,+80-20%,25V 72982 8131NO39 E 105Z
C4393 283-0177-00
CAP .,FXD,CER
DI
.lUF,+80-20%,25V 72982 8131NO39 E 105Z
C4394
283-0111-00 CAP .,FXD,CER DI :O
.lUF,20%,50V 72982 8121-NO88Z5U104M
C4395 1 283-0111-00
CAP .,FXD,CER DI :O .JUF,20%,50V 72982 8121-NO88Z5U104M
C4396
283-0111-00 CAP
.,FXD,CER DI :O .lUF,20%,50V 72982 8121-NO88Z5U104M
C4397
1 283-0111-00 CAP
.,FXD,CER DI :O .lUF,20%,50V 72982 8121-NO88Z5U104M
CR26 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR27 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR416 152-0075-00
SEMICOND DEVICE :GE,25V,40MA
80009 152-0075-00
CR418 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
07910 1N4152
CR437 152-0061-00
SEMICOND DEVICE
:SILICON,175V,100MA 80009 152-0061-00
CR443
152-0141-02 SEMICOND
DEVICE :SILICON,30V,150MA 07910 1N4152
CR463
152-0639-00 SEMICOND DEVICE
:RECT,SI,l0KV,l0MA 14099 SEF100
CR465
152-0639-00
SEMICOND DEVICE :RECT,SI,l0KV,l0MA 14099
SEF100
CR721 152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA 80009
152-0066-03
CR722 152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR723
152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA 80009
152-0066-03
CR724 152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA 80009
152-0066-03
CR732 152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR734 152-0066-03
SEMICOND DEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR737 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
07910 1N4152
CR738 152-0066-03
SEMICONDDEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR741 152-0066-03
SEMICONDDEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR742
152-0066-03 SEMICONDDEVICE
:RECT,SI,400V,lA 80009 152-0066-03
CR743 152-0066-03
SEMICONDDEVICE :RECT,SI,400V,lA
80009 152-0066-03
CR744
152-0066-03
SEMICONDDEVICE :RECT,SI,400V,lA 80009
152-0066-03
CR758 152-0066-03
SEMICONDDEVICE
:RECT,SI,400V,lA 80009 152-0066-03
CR764
152-0141-02 SEMICONDDEVICE
:SILICON,30V,150MA 07910 1N4152
CR765
152-0141-02 SEMICOND
DEVICE :SILICON,30V,150MA 07910
1N4152
CR766 152-0141-02
SEMICONDDEVICE
:SILICON,30V,150MA 07910 1N4152
CR767
152-0141-02 SEMICOND
DEVICE :SILICON,30V,150MA 07910
1N4152
CR778
152-0066-03 SEMICOND
DEVICE :RECT,SI,400V,lA 80009
152-0066-03
CR816 3
152-0061-00
SEMICONDDEVICE :SILICON,175V,100MA
80009 152-0061-00
CR2103 4 152-0141-02 XBO10130
SEMICOND DEVICE :SILICON,30V,150MA
07910 1N4152
CR2103 2 152-0141-02 X8010170 -
SEMICONDDEVICE :SILICON,30V,150MA
07910 1N4152
CR2103 3 152-0141-02
SEMICOND DEVICE
:SILICON,30V,150MA 07910 1N4152
CR2108 4 152-0141-02
XBO10130 SEMICOND DEVICE
:SILICON,30V,150MA 07910 1N4152
CR2108 2 152-0141-02
XBO10170 SEMICOND DEVICE
:SILICON,30V,150MA 07910 1N4152
CR2108
3 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR2112 4 152-0141-02
XBO10130 SEMICOND DEVICE
:SILICON,30V,150MA 07910 1N4152
CR2112 2
152-0141-02 XBO10170 SEMICOND
DEVICE :SILICON,30V,150MA 07910
1N4152
CR2112
3 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR2115
152-0141-02 SEMICOND
DEVICE :SILICON,30V,150MA 07910
1N4152
CR2116 4
152-0141-02 B010100 B010129X
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR2116 2
152-0141-02 B010100 B010169XSEMICOND
DEVICE :SILICON,30V,150MA 07910
1N4152
CR2118 4 152-0141-02 B010100 B010129X
SEMICOND DEVICE :SILICON,30V,150MA 07910
1N4152
CR2118 2 152-0141-02 B010100
B010169XSEMICOND DEVICE :SILICON,30V,150MA
07910 1N4152
