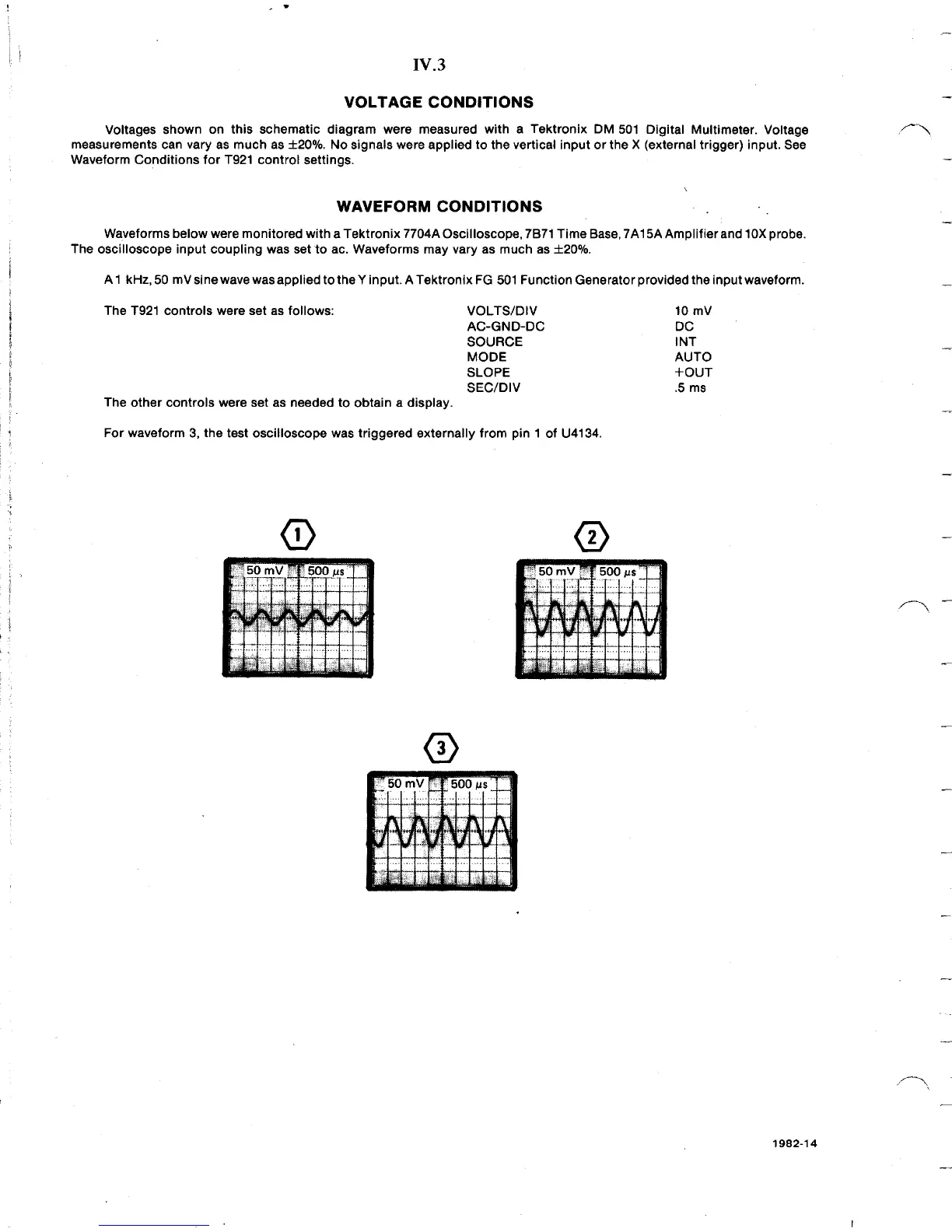

The T921 controls were set as follows :
IV
. 3
VOLTAGE CONDITIONS
Voltages shown on this schematic diagram were measured with a Tektronix DM 501 Digital Multimeter .
Voltage
measurements can vary as much as ±20% . No signals were applied to the vertical input or the X (external trigger) input . See
Waveform
Conditions
for
T921 control settings .
WAVEFORM CONDITIONS
Waveforms below were monitored with a Tektronix 7704A Oscilloscope, 71371 Time Base, 7A15A Amplifier and10X probe .
The oscilloscope input coupling was set to ac . Waveforms may vary as much as ±20% .
A 1 kHz,
50 mV sinewave was applied to the Y input . A Tektronix FG 501 Function Generator provided the input waveform .
The other controls were set as needed to obtain a display .
For waveform 3, the test oscilloscope
was
triggered externally from pin 1
of
U4134 .
40
VOLTS/DIV

10 mV
AC-GND-DC

DC
SOURCE

INT
MODE

AUTO
SLOPE

-BOUT
SEC/DIV

.5 ms
0
1982-14
