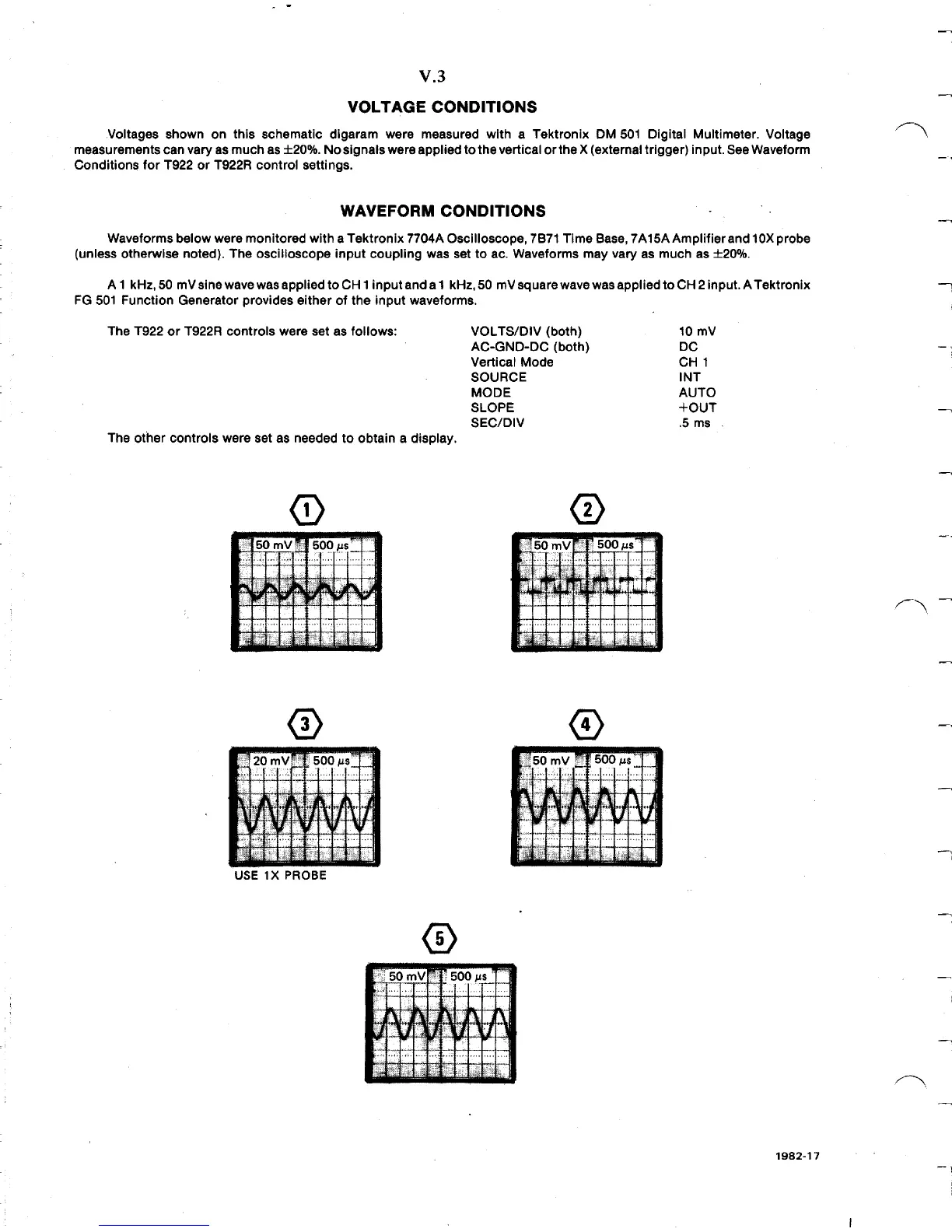

V . 3
VOLTAGE CONDITIONS
Voltages shown on this schematic digaram were measured with a Tektronix DM 501 Digital Multimeter . Voltage
measurements can vary as much as ±20% . No signals were applied to the vertical orthe X (external trigger) input . See Waveform
Conditions for T922 or T922R control settings .
USE1X PROBE
WAVEFORM CONDITIONS
Waveforms below were monitored with a Tektronix 7704A Oscilloscope, 7B71 Time Base, 7A15AAmplifierand 10X probe
(unless otherwise noted) . The oscilloscope input coupling was set to ac . Waveforms may vary as much as ±20% .
A 1 kHz, 50 mV sine wave was applied to CH 1 input and a 1 kHz, 50 mV square wave was applied to CH 2 input . A Tektronix
FG 501 Function Generator provides either of the input waveforms .
The T922 or T922R controls were set as follows :

VOLTS/DIV (both)

10 mV
AC-GND-DC (both)

DC
Vertical Mode

CH 1
SOURCE

INT
MODE

AUTO
SLOPE

+OUT
SEC/DIV

.5 ms
The other controls were set as needed to obtain a display .
0 IQ
0
1982-17
