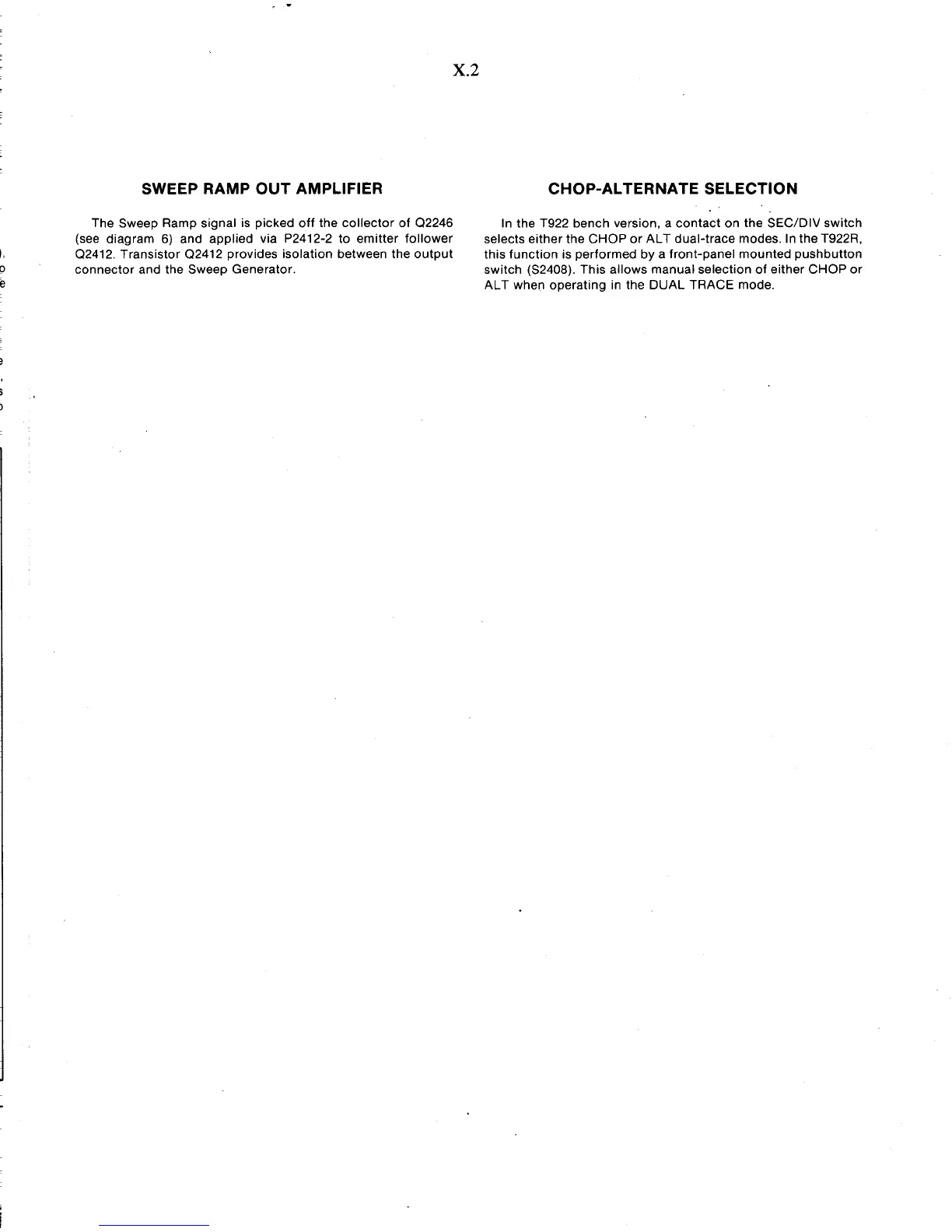

SWEEP
RAMP
OUT
AMPLIFIER
The Sweep Ramp signal is picked off the collector of 02246
(see diagram 6) and applied via P2412-2 to emitter follower
02412 . Transistor 02412 provides isolation between the output
connector and the Sweep Generator
.
X .2
CHOP-ALTERNATE SELECTION
In the T922 bench version, a contact on the SEC/DIV switch
selects either the CHOP or ALT dual-trace modes . In the T922R,
this function is performed by a front-panel mounted pushbutton
switch (S2408) . This allows manual selection of either CHOP or
ALTwhen operating in the DUAL TRACE mode .
