Performance Check-T921 /T922/T922R
3-6
b . Connect sine-wavegenerator through 50 O cable
and 50 0 termination to X (EXT) input .
c . Set generator
frequency to 50 kHz (reference) and
adjust output amplitude for
10
divisions
(about 1 volt) of
horizontal deflection .
d . Set generator frequency to 1 MHz .
e . CHECK-Display
amplitude is at least
7
divisions .

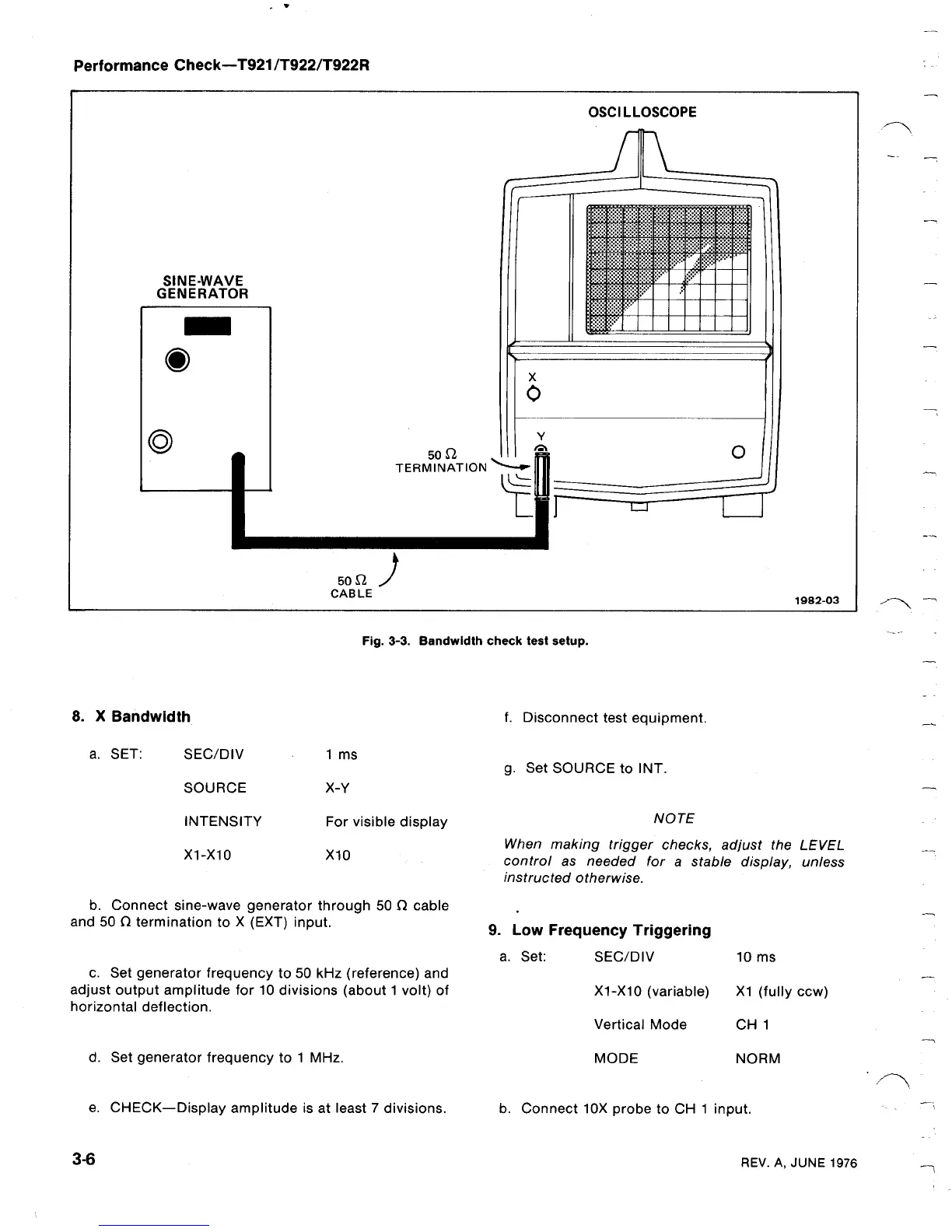

Fig . 3-3 . Bandwidth check test setup .
9 . Low Frequency Triggering
a . Set :

SEC/DIV

10 ms
X1-X10 (variable)

X1 (fully ccw)
Vertical Mode

CH 1
MODE NORM
b . Connect 10X probe to CH 1 input .
REV . A, JUNE
1976
8 . X Bandwidth f . Disconnect test equipment .
a
.
SET : SEC/DIV 1 ms
g . Set SOURCE to INT .
SOURCE
X-Y
INTENSITY For visible display
NOTE
When making trigger checks, adjust the LEVEL
X1-X10 X10
control
as needed for a stable display, unless
instructed otherwise .
