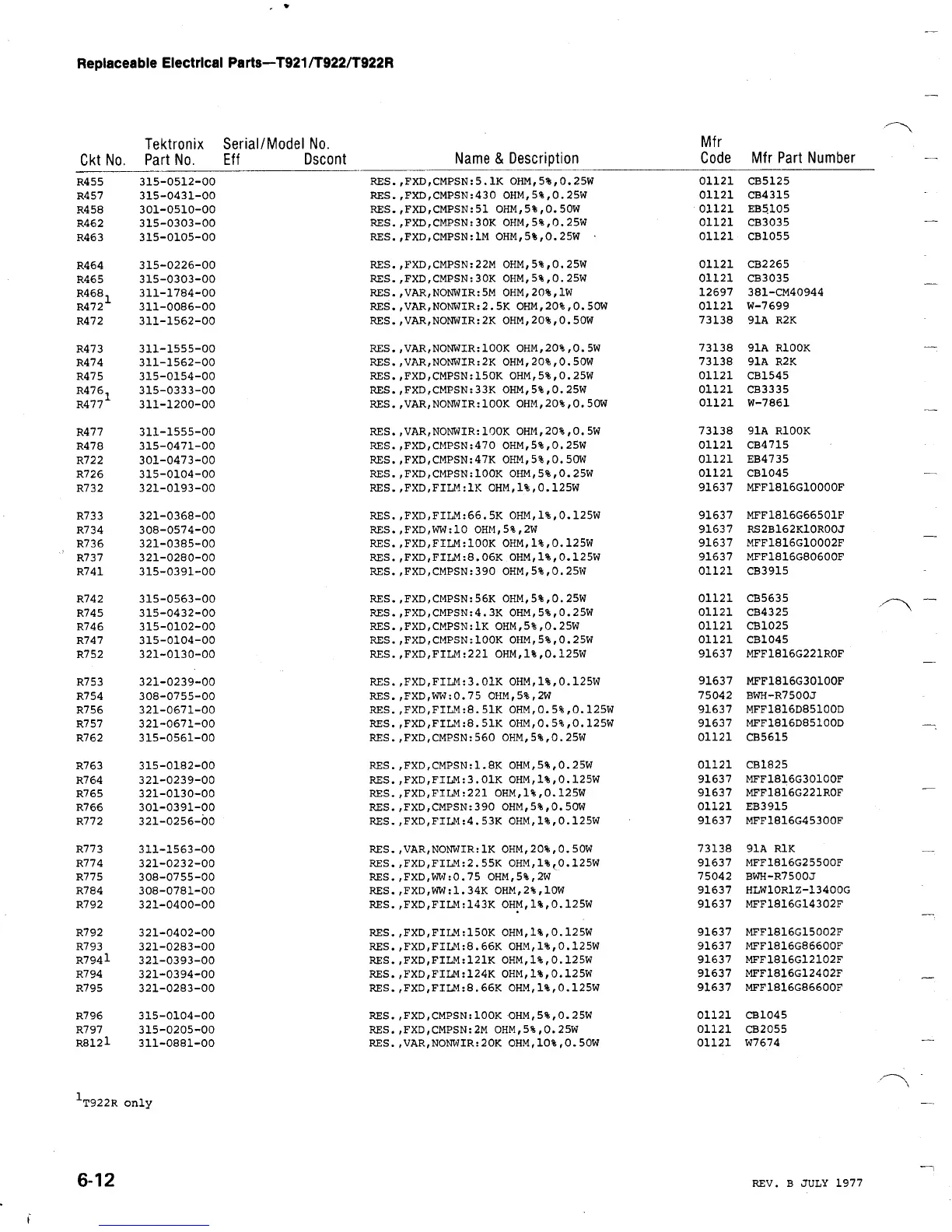

Replaceable
Electrical Parts-T921/T922/T922R
1 T922R only
6- 1 2 REV . B JULY 1977
Ckt No .
Tektronix Serial/Model
No .
Part No . Eff
Dscont Name & Description
Mfr
Code
Mfr Part Number
8455 315-0512-00 RES .,FXD,CMPSN :5
.1K OHM,5%,0 .25W 01121 CB5125
8457 315-0431-00 RES .,FXD,CMPSN :430
OHM,5%,0
.25W 01121 CB4315
8458 301-0510-00 RES .,FXD,CMPSN
:51 OHM,5%,0 .50W 01121 EB5105
8462 315-0303-00
RES .,FXD,CMPSN :30K OHM,5%,0 .25W 01121 CB3035
8463 315-0105-00
RES .,FXD,CMPSN :IM OHM,58,0 .25W 01121 CB1055
8464 315-0226-00
RES .,FXD,CMPSN :22M OHM,5%,0 .25W 01121 CB2265
8465 315-0303-00
RES .,FXD,CMPSN :30K OHM,5%,0 .25W 01121 CB3035
8468 1
311-1784-00 RES .,VAR,NONWIR :5M OHM,20%,lW 12697 381-CM40944
8472
311-0086-00
RES .,VAR,NONWIR :2 .5K OHM,20%,0 .50W 01121 W-7699
R472 311-1562-00 RES .,VAR,NONWIR :2K OHM,20%,0 .50W 73138 91AR2K
8473 311-1555-00 RES .,VAR,NONWIR :l00K OHM,20%,0 .5W 73138 91A R100K
8474 311-1562-00 RES .,VAR,NONWIR :2K OHM,20%,0 .50W 73138 91AR2K
8475 315-0154-00 RES .,FXD,CMPSN :150K OHM,5%,0
.25W
01121
CB1545
R476 1 315-0333-00 RES .,FXD,CMPSN :33K OHM,5%,0 .25W 01121 CB3335
8477 311-1200-00 RES .,VAR,NONWIR:100K
OHM,20%,0 .50W 01121 W-7861
8477 311-1555-00
RES .,VAR,NONWIR:100K OHM,20%,O .5W 73138 91A R100K
8478 315-0471-00 RES .,FXD,CMPSN :470
OHM,5%,0 .25W 01121 CB4715
8722 301-0473-00 RES .,FXD,CMPSN
:47K OHM,5%,0 .50W 01121 EB4735
8726 315-0104-00 RES .,FXD,CMPSN :l00K OHM,5%,0 .25W
01121 CB1045
R732 321-0193-00 RES .,FXD,FILM :IK OHM,1%,0 .125W
91637 MFF1816G10000F
8733 321-0368-00 RES
.,FXD,FILM :66 .5K OHM,1%,0 .125W 91637 MFF1816G66501F
8734 308-0574-00 RES .,FXD,WW :l0
OHM,5%,2W 91637 RS2B162KlOROOJ
8736 321-0385-00
RES .,FXD,FILM :100K OHM,1%,0 .125W 91637 MFF1816G10002F
8737 321-0280-00 RES
.,FXD,FILM :8 .06K OHM,1%,0 .125W 91637 MFF1816G80600F
8741 315-0391-00
RES .,FXD,CMPSN :390 OHM,5%,0 .25W 01121 CB3915
8742 315-0563-00 RES .,FXD,CMPSN :56K OHM,5%,0 .25W 01121 CB5635
8745 315-0432-00 RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
8746 315-0102-00 RES .,FXD,CMPSN :IK
OHM,5%,0 .25W 01121 CB1025
R747 315-0104-00 RES .,FXD,CMPSN :l00K
OHM,5%,0 .25W 01121 CB1045
8752 321-0130-00 RES .,FXD,FILM :221
OHM,1%,0 .125W 91637 MFF1816G221ROF
8753 321-0239-00
RES .,FXD,FILM :3 .OlK OHM,1%,0 .125W 91637 MFF1816G30100F
8754 308-0755-00 RES .,FXD,WW :0 .75
OHM,5%,2W 75042 BWH-R7500J
8756 321-0671-00 RES
.,FXD,FILM :8 .51K OHM,0 .5%,0 .125W 91637 MFF1816DB5100D
8757 321-0671-00
RES .,FXD,FILM :8 .51K OHM,0.5%,0.125W 91637 MFF1816DB5100D
8762 315-0561-00
RES .,FXD,CMPSN :560 OHM,5%,0 .25W 01121 CB5615
8763
315-0182-00 RES .,FXD,CMPSN :I .8K OHM,5%,0 .25W 01121 CB1825
8764 321-0239-00 RES .,FXD,FILM
:3 .01K OHM,18,0 .125W 91637 MFF1816G30100F
8765 321-0130-00 RES .,FXD,FILM :221 OHM,1%,0 .125W 91637 MFF1816G221ROF
R766 301-0391-00 RES .,FXD,CMPSN :390 OHM,5%,0 .50W 01121 EB3915
8772 321-0256-00 RES .,FXD,FILM :4 .53K OHM,1%,0 .125W 91637 MFF1816G45300F
8773 311-1563-00 RES .,VAR,NONWIR :IK OHM,20%,0 .50W 73138 91ARlK
8774 321-0232-00 RES .,FXD,FILM :2 .55K OHM,1%,0 .125W 91637 MFF1816G25500F
8775 308-0755-00 RES .,FXD,WW :0 .75 OHM,5%,2W 75042 BWH-R7500J
R784 308-0781-00 RES .,FXD,WW :1 .34K OHM,2%,1OW
91637 HLW10RlZ-134000
8792 321-0400-00 RES .,FXD,FILM :143K OHM,1%,0 .125W 91637 MFF1816G14302F
8792 321-0402-00 RES .,FXD,FILM :150K OHM,1%,0 .125W 91637 MFF1816G15002F
R793 321-0283-00 RES .,FXD,FILM :8 .66K
OHM,1%,0 .125W 91637 MFF1816G86600F
87941 321-0393-00 RES .,FXD,FILM :121K OHM,1%,0
.125W 91637 MFF1816G12102F
8794
321-0394-00
RES .,FXD,FILM :124K OHM,1%,0 .125W 91637 MFF1816G12402F
8795 321-0283-00 RES .,FXD,FILM
:8 .66K OHM,1%,0 .125W 91637 MFF1816G86600F
8796 315-0104-00 RES .,FXD,CMPSN :l00K OHM,5%,0 .25W 01121 CB1045
8797 315-0205-00 RES .,FXD,CMPSN :2M OHM,5%,0 .25W 01121 CB2055
88121 311-0881-00 RES .,VAR,NONWIR :20K OHM,l0%,O .50W 01121 W7674
