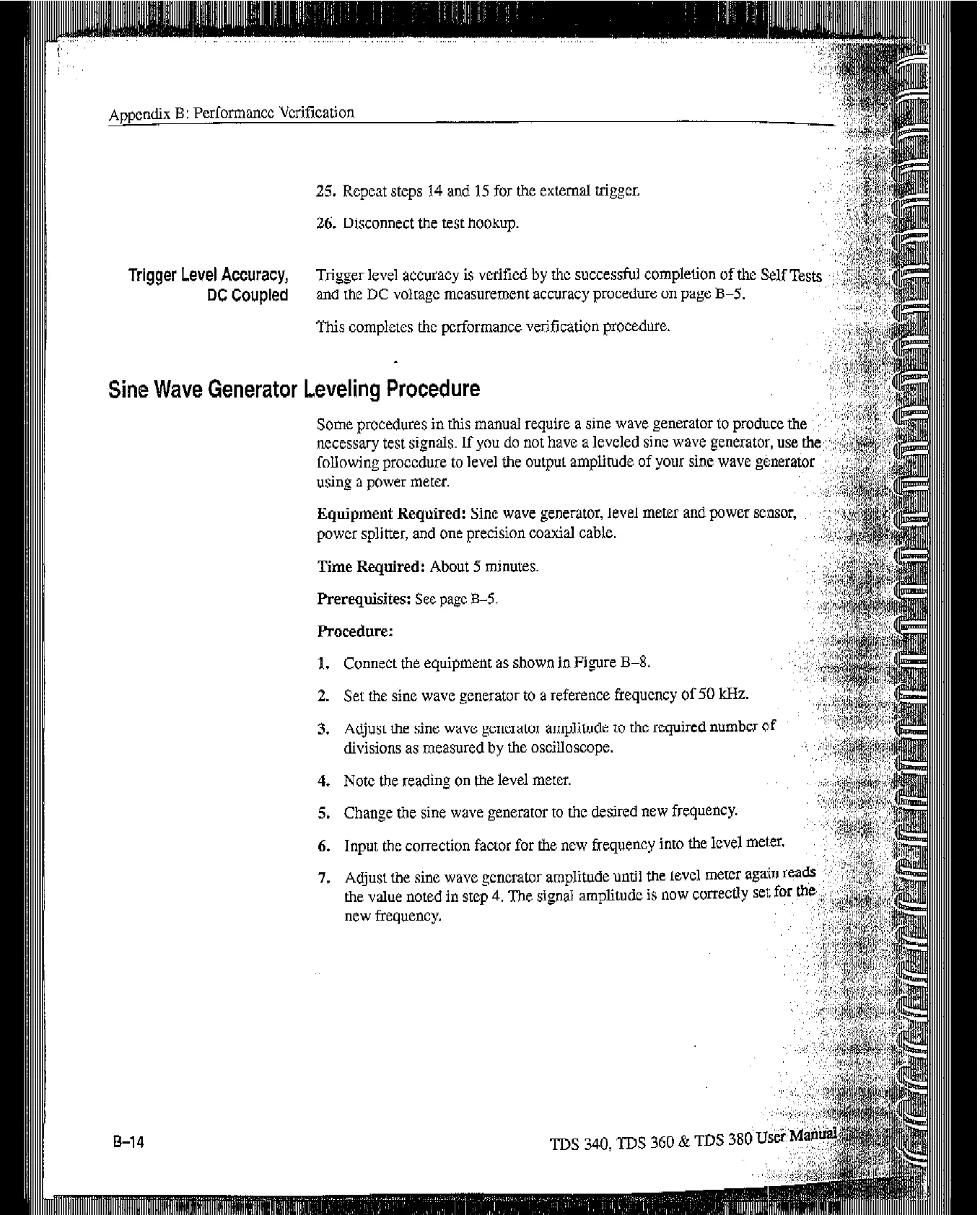

Connect the equipment as shown in Figure B-8.
Set the sine wave generator to a reference frequency of 50 Wz.
Adjust
me sine wave gcncramr amplitude to tic required number of
divisions as measured by the oscilloscope.
Note the reading on the level meter.
Change the sine wave generator to the desired new frequency.
Input the correction factor for the new frequency into the level
meter.
,&djuS[
the sine wave _~cncrabr amplitude until the level mMH
again
the value noted in step 4. The signal amplimde is now correctly set
new frequency.
