Operatins Basics
Using Autoset

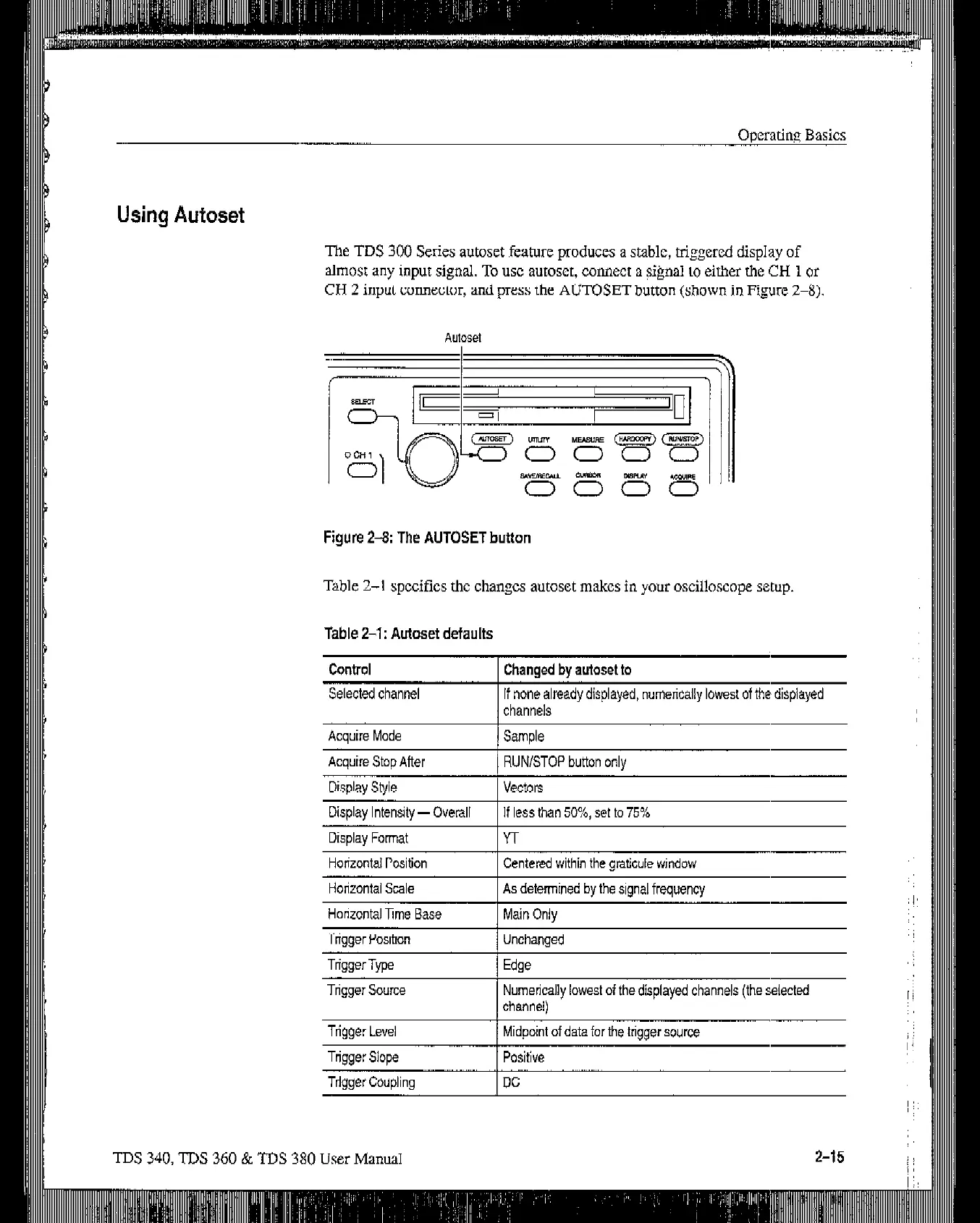

The TDS 300 Series autoset feature produces a stable, triggered display of
almost any input signal. To USC autosct, connect a $@a1 to either the CH 1 or
CH 2 input connector, and press the AUTOSET button
(shown  j,n Figure  Z-8)
Figure  2-8:  The  AUTOSET  button
Table 24  specifics the changes autoset makes in your oscilloscope setup.
table  Z-l:  Autoset  defaults
Control
Selected channel
Changed  by autoset  to
If none already displayed, numetically lowesf of the displayed
channels
Acauire Mode
I Sam&
Acquire Stop After
Display Style
Disolav lntensitv -  Overall
RUN/STOP button only
vectors
If less than 50%. set to 75%
,,  ,
Display Format
Horizontal Position
Yr
Centered within the graticule window
Horizontal Scale
1 As determined by the signal frequency
Horizontal Ime  Base  1 Main Only
Triqqer Position  1 Unchanged
TriggerType
Trigger Source  Numerically lowest of the displayed channels (the selected
channel)
Triqqer Level  1 Midpoint of data for the triqqer source
Tnsaer Slope  I Positive
Triaaer Coudina
I DC
TDS 340, TDS 360 & TDS 380 User Manual
