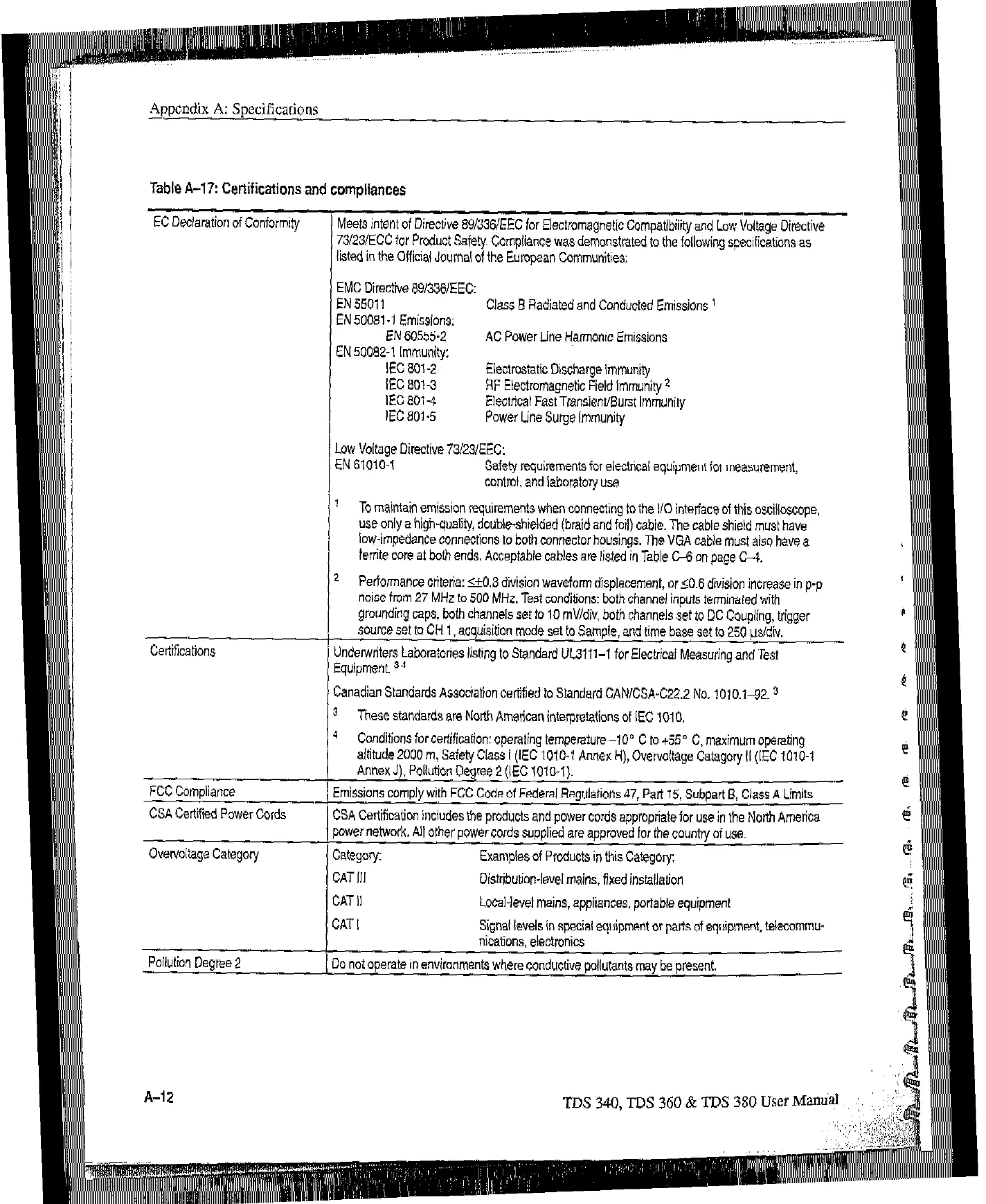

Appendix A: Specifications
-
Table A-lf: Certifications and compliances
EC Declaration of Conformity
FCC Compliance
CSA Certified Power Cords
Overvoltage Category
Pollution Oeoree 2
A-l 2
Meets intent of Directive 8913WEEC for Electromagnetic Compatibility and Low Voltage Directive
73/23/ECC for Product Safely. Compliance was demonstrated to the following specifications as
listed in the Official Journal of the European Communities:
EMC Directive 39/336/EEC:
EN 55011 Class B Radiated and Conducted Emissions ’
EN 50081-i Emissions:
EN 60555.2
AC Power Line Hanonic Emissions
EN 50082-l Immunity:
EC 801-Z
IEC 801-3
Electrostatic Discharge immunity
lEC801-4
RF Eleclromagnetic Field Immunity2
IEC 601.5
Electrical Fast Transient/Burst Immunity
Power Line Surge Immunity
Low Voltage Directive 73/23/EEC:
EN 61010-l Safety requirements for electrical equipment for measurement,
control, and laboratory use
To maintain emission requirements when connecting to the I/O interface of this oscilloscope,
use only a high-qualiv, double-shielded (braid and foil) cable. The cable shield must have
low-impedance connections to both connector housings. The VGA cable must also have a
ferrite cars at both ends. Acceptable cables are listed in Table C-6 on page C-1.
’
Performance criteria: -0.3 division waveform displacement, or SO.6 division increase in p-p
noise from 27 MHz to 500 MHz. Test conditions: both channel inputs terminated with
grounding caps, both channels set to 10 mV/div, both channels set to DC Coupling, trigger
source set to CH 1, acquisition mode sat to Sample, and time base set to 250 ps/div.
Underwriters Laboratories listing to Standard Wlil-1 for Electrical Measuring and ‘Test
Equipment. 34
Canadian Standards Association certified to Standard CANICSA-C22.2 No. 1010.1-92. 3
1 These standards are North Atnelican interpretations of IEC 1010.
’
Conditions for certification: operating temperature -10” C to +55” C, maximum operating
altitude 2000 m, Safety Class I (IEC 1010-I Annex HI. Overvoltaae Cataaow II (IEC 1010-l
Annex J), Pollution Degree 2 (l&S 1010-1).
” ” ’ ’
imissions comply with FCC Coda of Federal Regulations 47$ Pan 15, Subpart B, Class A Limits
:SA Certification includes the prod&a and DOWW cords anorooriate for use in the Notth America
oower network. All other power cords supplied are approved f&the country of use.
?ategory:
Examples of Products in this Category:
:AT Ill
Distribution-level mains. fixed installation
:AT II
:AT I
Local-level mains, appliances. portable equipment
Signal levels in special equipment or parts of equipment, telecommu-
nications. electronics
IO not operate in environments where conductive pollutants may be present.
TDS 340, TDS 3GO & TRS 380 User Man@,
