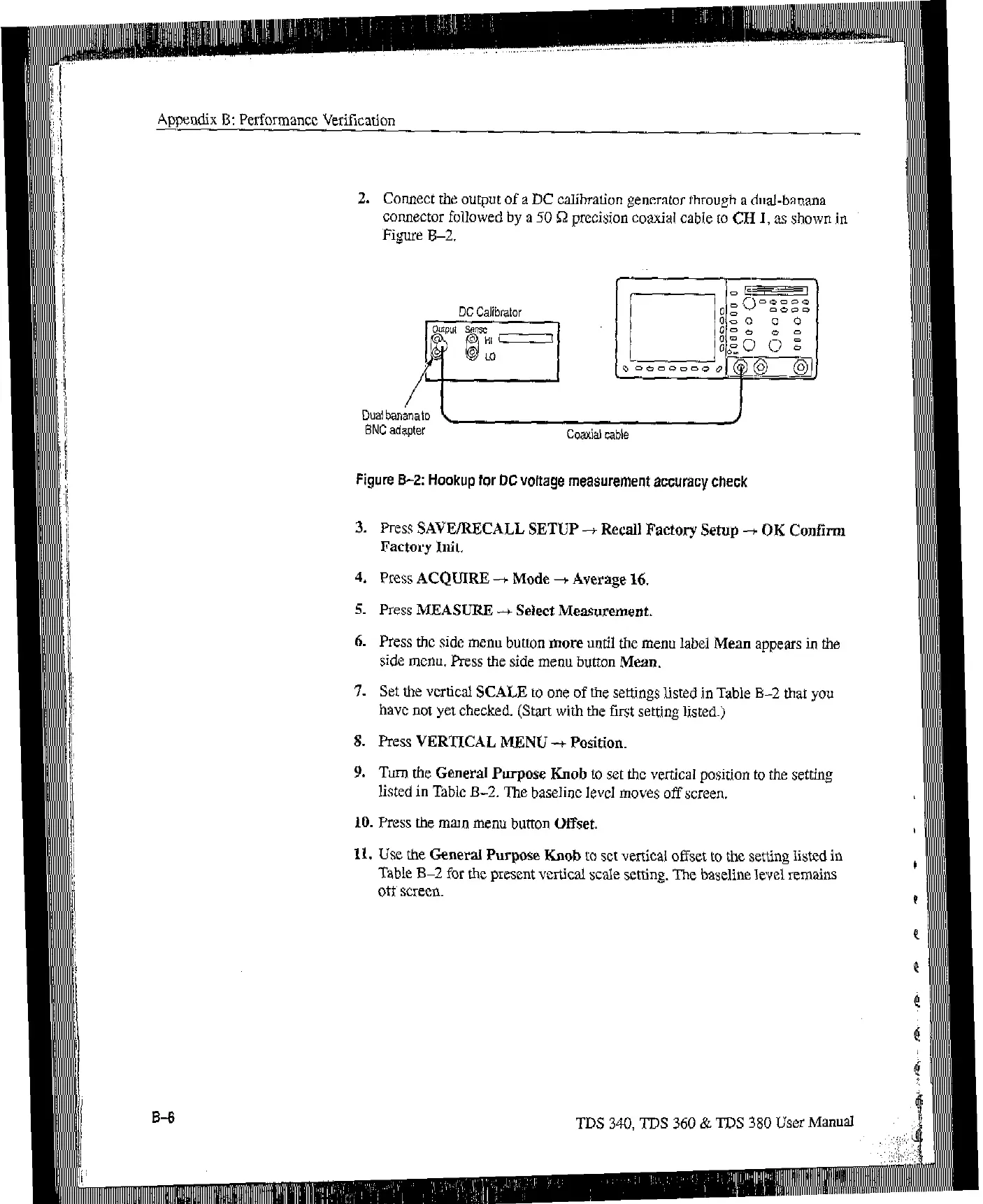

Appendix
B: Pcrformancc Verification
-
llllll/ i!
2. Connect the output of a DC calibration generator through a dual-banana
connector followed by a 50 8 precision coaxial cable to CII 1. as shown in
Figure B-2.
DC Calibrator
Coaxial cable
Figure B-2:
Hookup for DC voltage measurement accuracy check
3.
Press
SAVE/RECALL SETUP i Recall Factory Setup + OK Confirm
Factory Init.
4.
Press
ACQUIRE -+ Mode + Average 16.
5.
Press
MEASURE -t Select Measurement.
6. Press tic side menu button
more
undl UK menu label Mean appears in the
side menu. Press the side menu button Mean.
7. Set the
vertical SCALE
to one of the settings listed in Table E-2 that you
have
not yet checked. (Start with the first setting listed.)
8. Press
VERTICAL MENU-t Position
9. Turn the
General Purpose Knob
to set the vertical position to the setting
listed in Table B-2. The baseline level moves off screen.
10. Press the main
menu button Offset.
11. Use the General
Purpose
Knob to set
vertical offset to the setting listed in
‘fibk B-2 for the present vertical scale setting. The baseline level remains
off screen.
TDS 340, TDS 360 & TDS 380 User Manual
B-6
