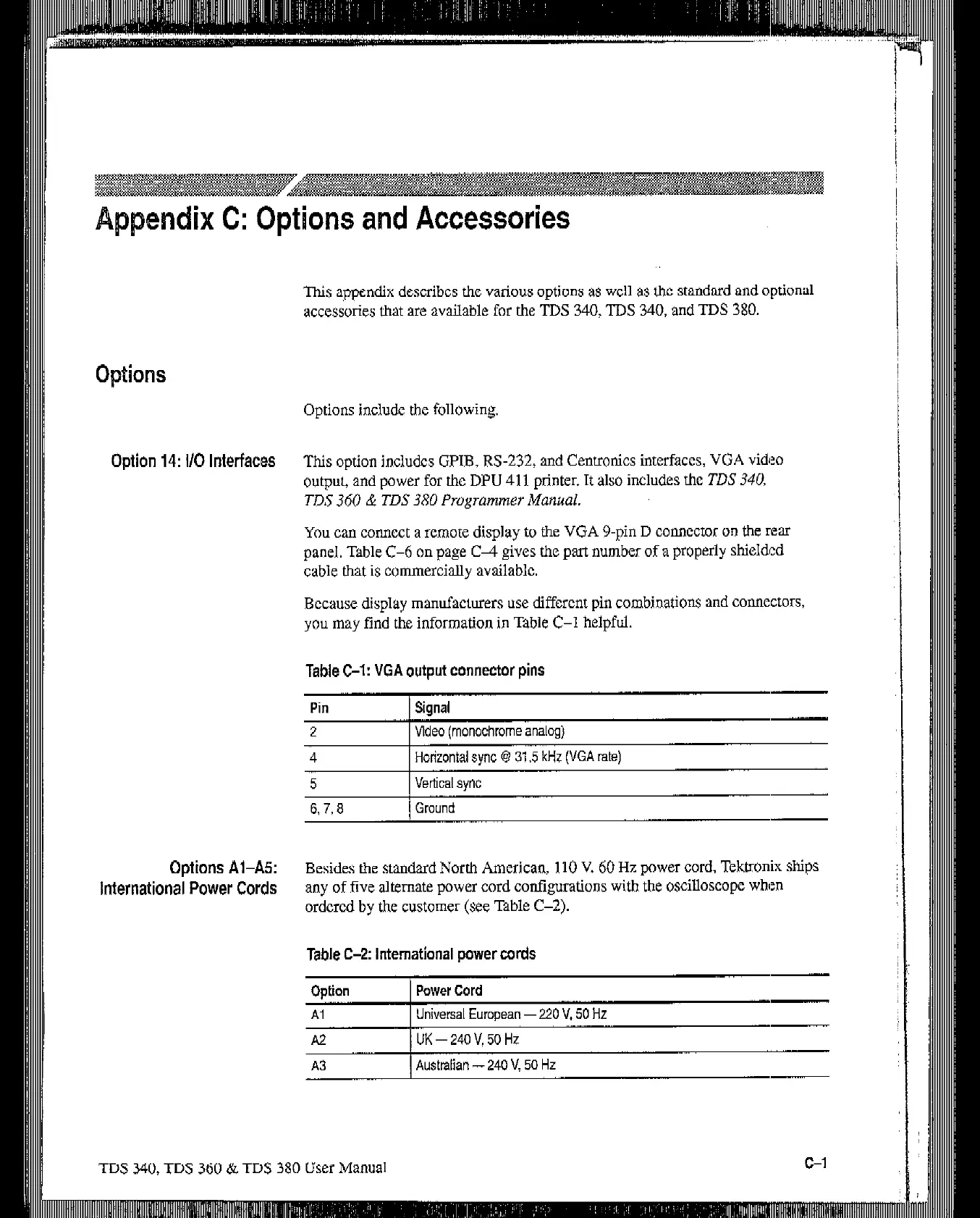

This appendix dcscribcs the various options as well as the standard and optional
accessuries that are available for the TDS 340. TDS 340, and TDS 380.
Options
Options include the following.
Option 14: l/O Interfaces
This option includes GPIB, RS-232, and Centronics interfaces, VGA video
output, and power for the DPU 411 printer. It also includes the TDS 340,
TDS 360 & TDS 380 Programmer Manual.
You can connect a remote display to the VGA 9.pin D cotmccmr on the rear
panel. Table C-6 on page CA gives the part number of a properly shielded
cable that is commercially
available.
Because display manufacturers use diffcrcnt pin combinations and connectors,
you may find Ihe information in Table C-l helpful.
Table C-l: VGA output connector pins
Pin Signal
2 1 Video (monochrome analog)
4
I
1 Horizontal sync @ 31.5 kHz (VGA rate)
5
I Vertical sync
6. 7.6
I
Ground
Options Ai-AS:
Besides the standard North American, 110 V, 60 Hz power cord, Tektronix
ships
International Power Cords
any of five alternate power cord configurations with the oscilloscope when
ordcrcd by the customer (see Table C-2).
Table C-2: International
power cords
Option
Al
A2
Power Cord
Universal European - 220 V, 50 Hz
UK - 240 V, 50 Hz
A3 Australian - 240 V, 50 Hz
TDS
340,
TDS
360
& TDS
380
user hhnUd
