CURSOR:HBARS:SELECT CURSOR1

selects the first horizontal bar cursor as the active cursor.

CURSOR:HBARS:SELECT?

returns CURSOR1 when the first cursor is the active cursor.

CURSor:HBArs:UNIts

TDS 4XXA, 5XXA, 6XXA, & 7XXA Only

Sets or queries the units for the horizontal bar cursors. This command is

equivalent to setting Amplitude in the Cursor menu.

Cursor

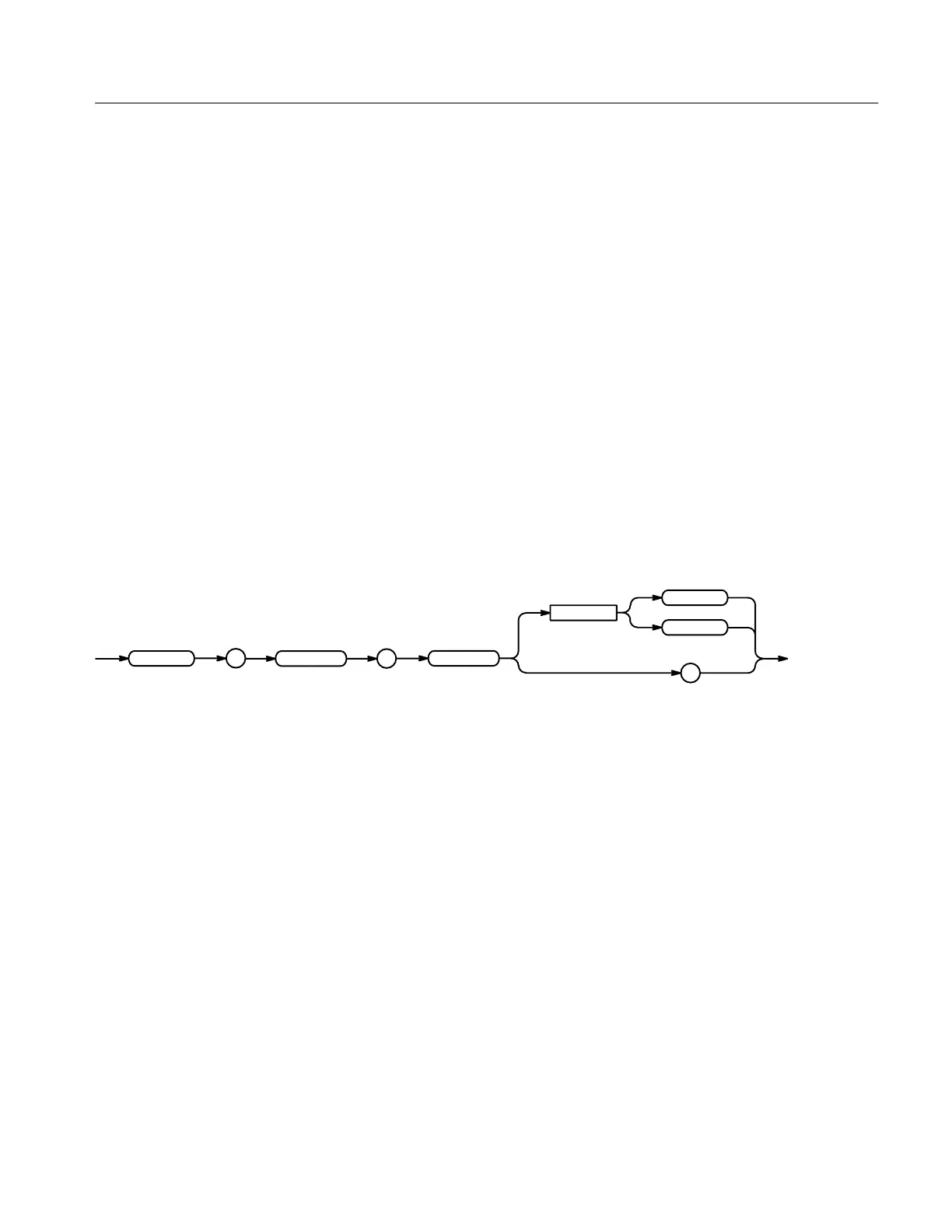

CURSor:HBArs:UNIts { BASe | IRE }

CURSor:HBArs:UNIts?

CURSor

HBArs

UNIts

<Space>

IRE

BASe

BASe specifies base as the unit of measure.

IRE specifies IRE as the unit of measure. These units are typically used with

video signals.

CURSOR:HBARS:UNITS BASE

sets the units for the horizontal bar cursors to base.

CURSOR:HBARS:UNITS?

returns IRE when the horizontal bar cursor units are IRE.

CURSor:MODe

Selects whether the two cursors move together in unison or separately.

Cursor

Examples

Group

Syntax

Arguments

Examples

Group
