Command Descriptions

2–74

TDS Family Oscilloscope Programmer Manual

CURSor:FUNCtion

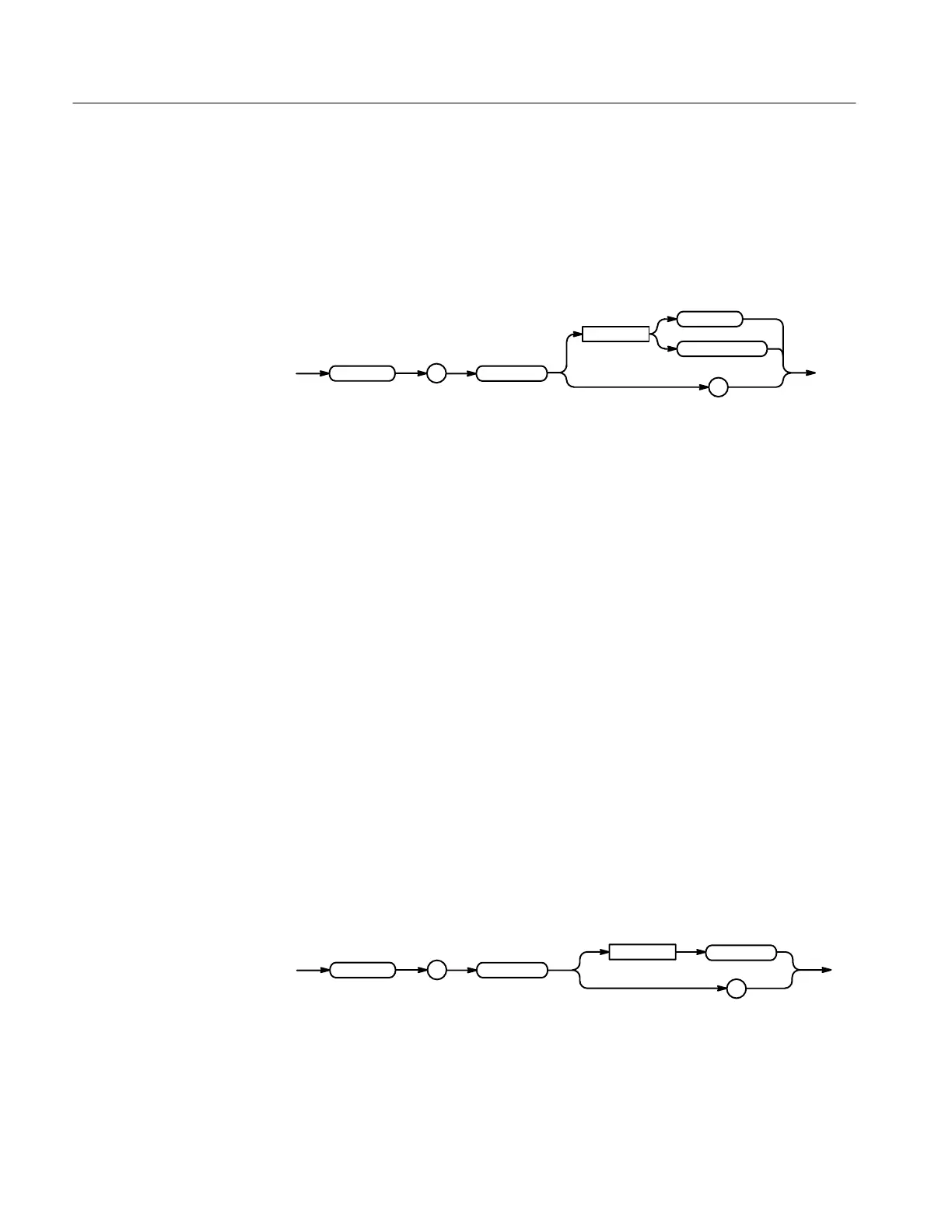

CURSor:MODe { TRACk | INDependent }

CURSor:MODe?

<Space>

INDependent

CURSor

MODe

TRACk

TRACk ties the two cursors together as you move the general purpose knob.

INDependent frees the two cursors to move separately.

CURSOR:MODE TRACK

specifies that the cursors positions move in unison.

CURSOR:MODE?

might return :TRACK showing the two cursors move in unison.

CURSor:PAIred

Positions the paired cursors. Also, returns the current paired cursor settings.

Cursor

DATa:STARt, DATa:STOP

CURSor:PAIred SNAp

CURSor:PAIred?

CURSor

PAIred

<Space>

SNAp

SNAp positions the paired cursors at DATa:STARt and DATa:STOP.

Related Commands

Syntax

Arguments

Examples

Group

Related Commands

Syntax

Arguments
