Command Descriptions
2–116
TDS Family Oscilloscope Programmer Manual
DISplay:COLOr:MAP:<item name>: TO
TDS 6X4B & 700C Only
Defines the color index to use if setting the color for a math or reference
waveform to the color assigned to a specific index. This is similar, but not
identical, to pressing Map Math Colors or Map Reference Colors on the Color
main menu, pressing Color on the resulting side menu, and entering an index
with the general purpose knob or the keypad. The difference is that, when you
press Color on the front panel, you not only select a color index but also state
that you wish to select by index rather than by contents. In contrast, when you
use this command you only select the index to use. To state you want to select by
index, use the DISplay:COLOr:MAP:...:BYCONTents command with the OFF
argument.
Display

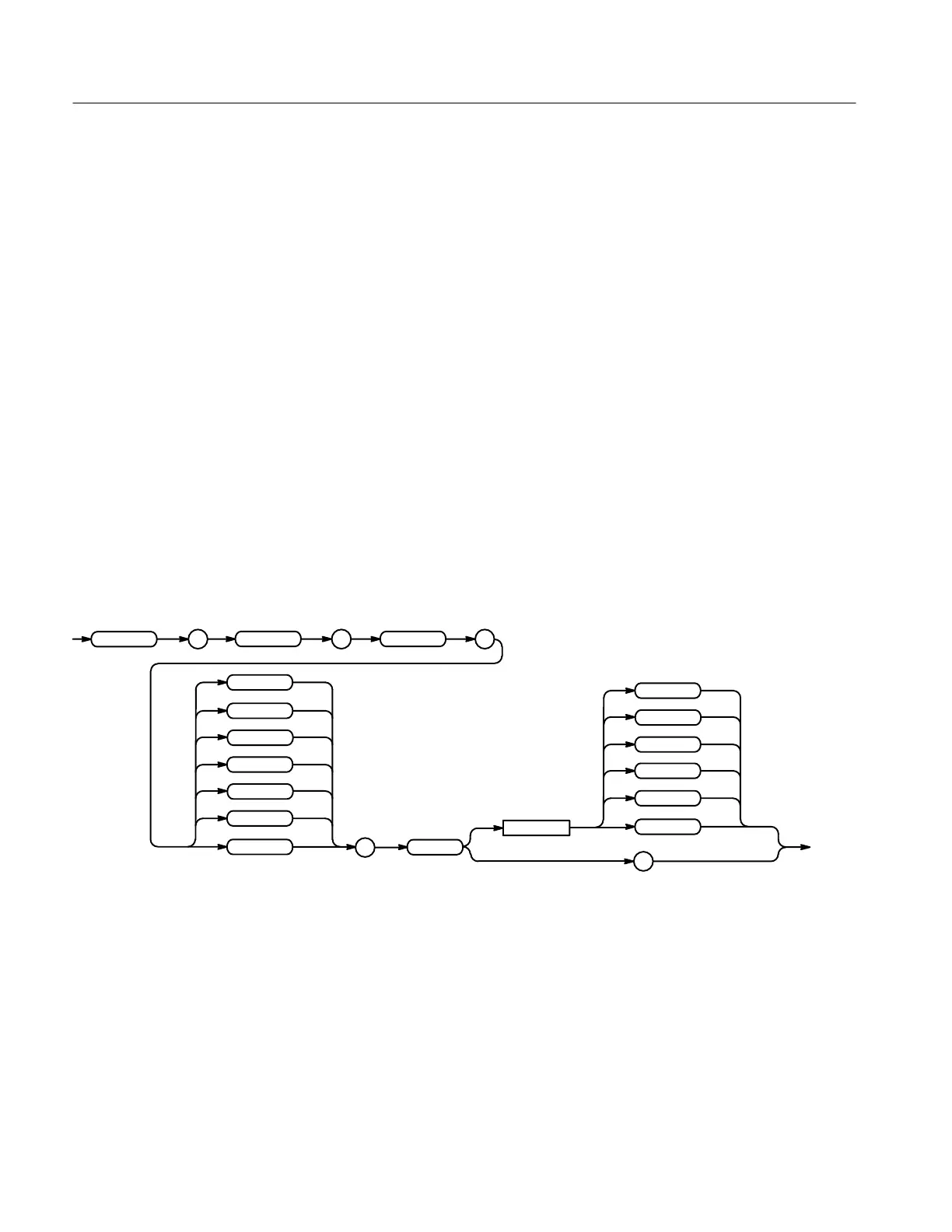

DISplay:COLOr:MAP:{ MATH1 | MATH2 | MATH3 | REF1 | REF2 | REF3 |
REF4 }:TO { CH1 | CH2 | CH3 | CH4 | MATH | REF }
DISplay:COLOr:MAP:TO?
DISplay
:
COLOr MAP
: :
REF4
REF3
REF1
MATH2
MATH3
REF2
:
TO
MATH1
<Space>
?
REF
MATH
CH3
CH1
CH2
CH4
DISPLAY:COLOR:MAP:MATH1:TO CH3
sets the color of math waveform # 1 to that assigned to channel 3. Note: this
assumes that Color Matches Contents is set to OFF.
DISPLAY:COLOR:MAP:MATH1:TO?
might return CH3.
Group
Syntax
Examples
