Tektronix TDS 500C Programmer's Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–123

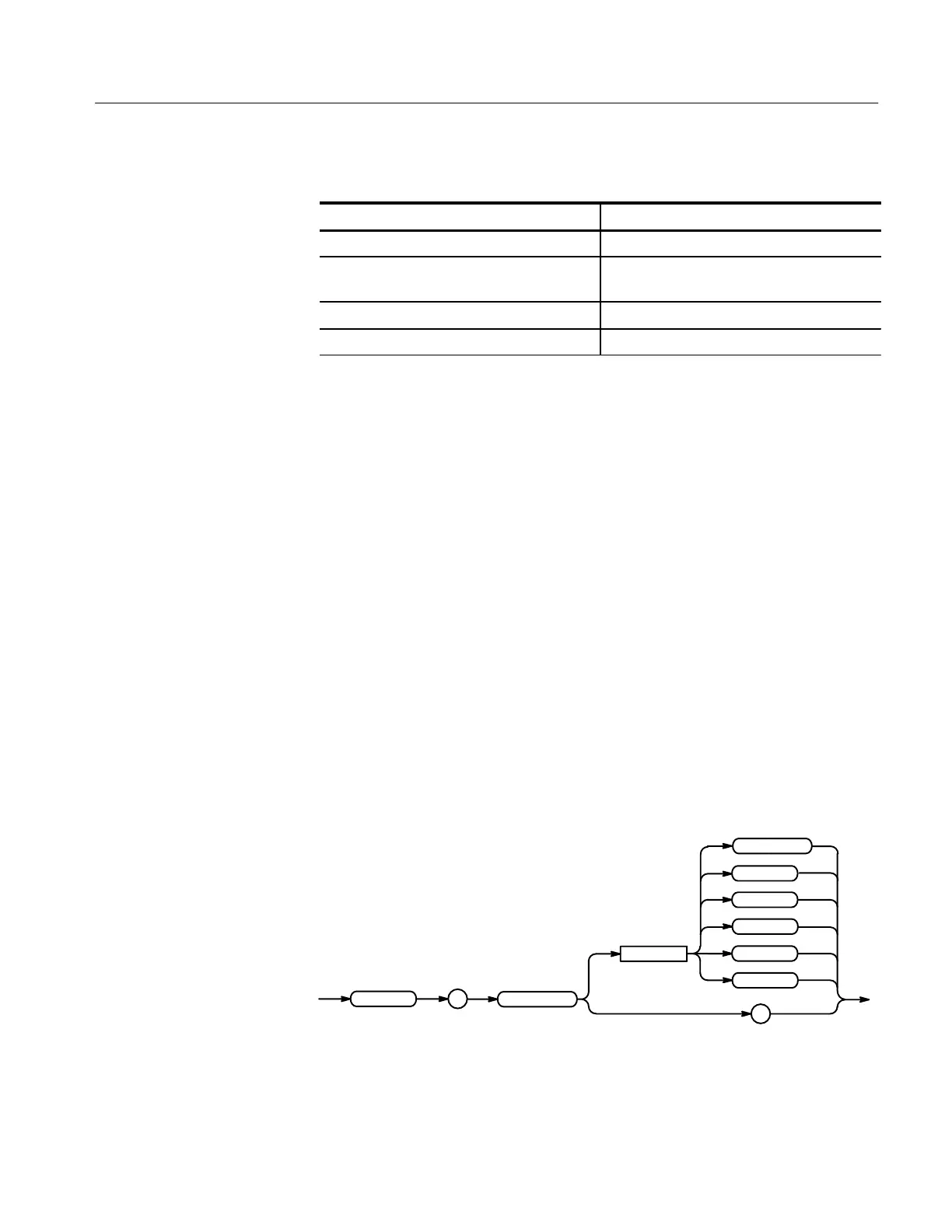

Table 2–31: XY Format Pairs
X-Axis Source Y-Axis Source
Ch 1 Ch 2
Ch 3 (or AUX 1)
(All models except TDS 430A)
Ch 4 (or AUX 2)
(All models except TDS 430A)
Ref 1 Ref 2
Ref 3 Ref 4
YT sets the display to a voltage versus time format and is the normal mode.
DISPLAY:FORMAT YT
selects a voltage versus time format for the display.
DISPLAY:FORMAT?
might return XY for the display format.
DISplay:GRAticule
Selects the type of graticule that will be displayed. This command is equivalent
to setting Graticule in the Display menu.
Display
DISplay:GRAticule { CROSSHair | FRAme | FULl | GRId | NTSc | PAL}
DISplay:GRAticule?
GRAticule
DISplay :
GRId
<Space>
?
FULl
FRAme
CROSSHair
PAL
NTSc
CROSSHair specifies a frame and cross hairs.
FRAme specifies just a frame.
Examples
Group
Syntax
Arguments
