Command Descriptions
2–122
TDS Family Oscilloscope Programmer Manual

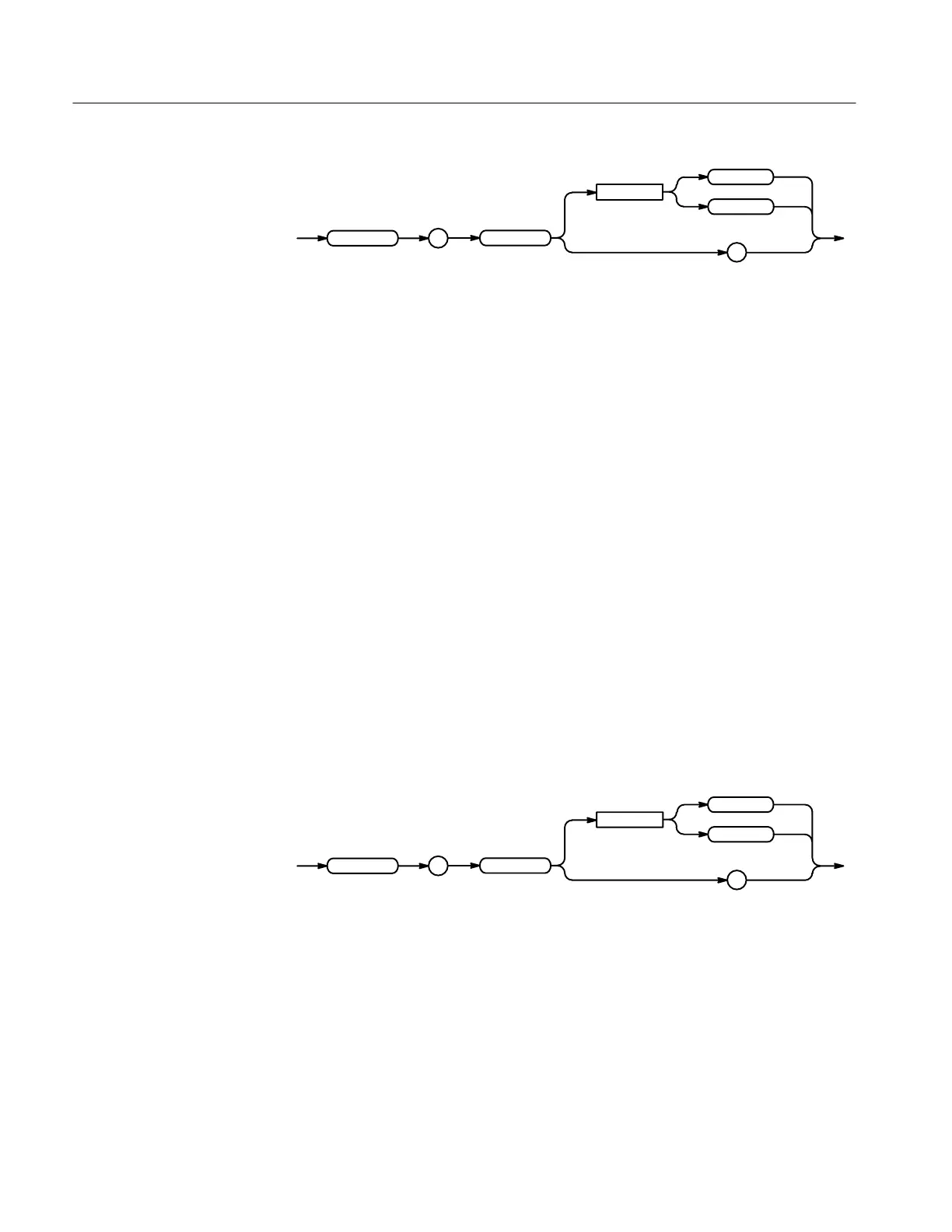

DISplay :
FILTer
?
SINX
LINEAr
<Space>
LINEAr specifies linear interpolation where acquired points are connected with
straight lines.
SINX specifies sin(x)/x interpolation where acquired points are fit to a curve.
DISPLAY:FILTER LINEAR
sets the interpolation filter type to linear.
DISPLAY:FILTER?
returns either LINEAR or SINX, indicating the type of interpolation filter.
DISplay:FORMat
Sets or queries the display format. This command is equivalent to setting
Format in the Display menu.
Display
DISplay:FORMat { XY | YT }
DISplay:FORMat?
DISplay :
FORMat
?
YT
XY
<Space>
XY displays one waveform against another. The source pairs that make up an XY
trace are predefined and are listed in Table 2–31. Displaying one source causes
its corresponding source to be displayed.
Arguments
Examples
Group
Syntax
Arguments
