DISplay:INTENSITy:CONTRast

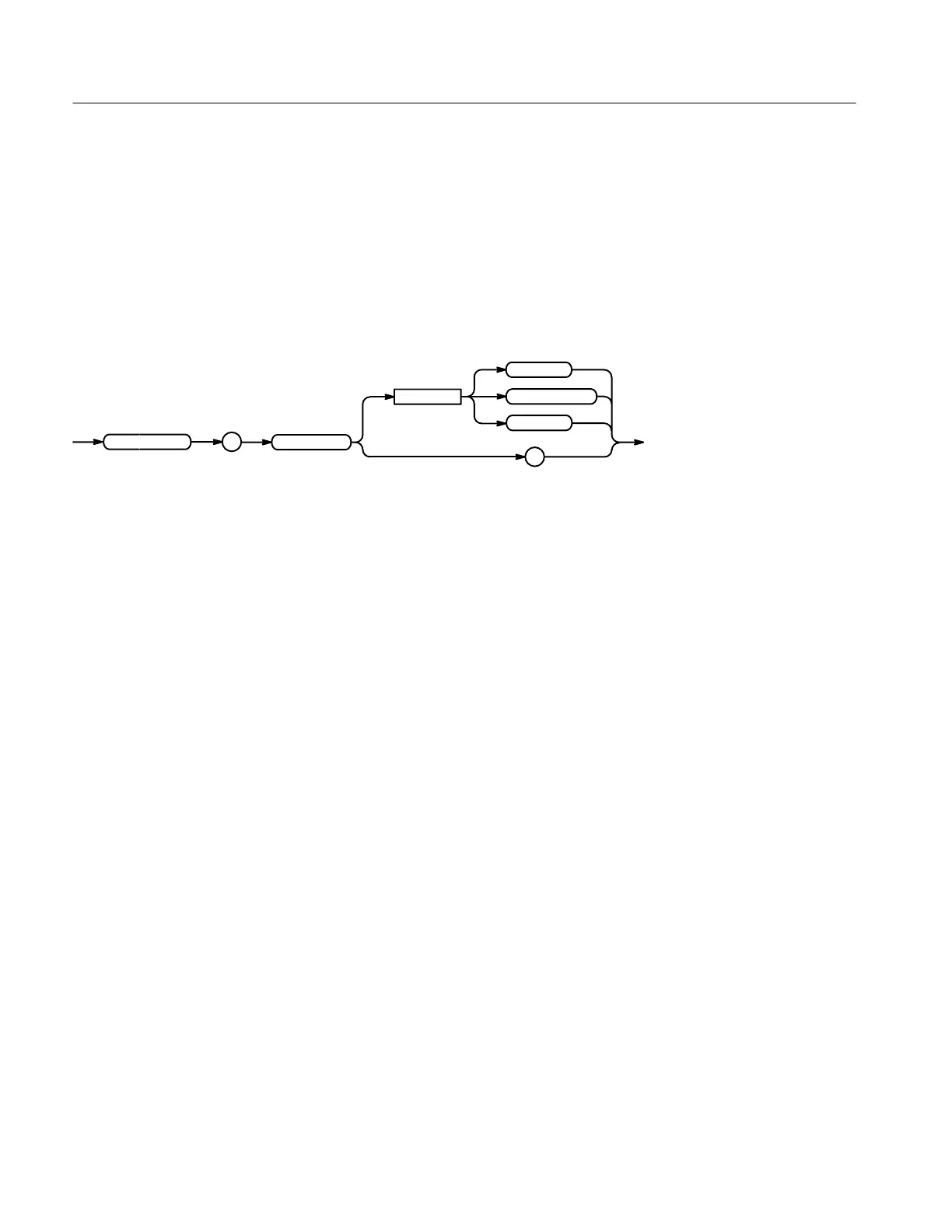

HORizontal:MODe { DELAYEd | INTENSIFied | MAIn }
HORizontal:MODe?
INTENSIFied
MODe
<Space>
?
DELAYEd
:
MAIn
HORizontal
DELAYEd means that the selected waveform is horizontally scaled relative to the
delayed time base.
INTENSIFied uses both the main and delay scales to display the waveform. The
portion of the waveform that would be displayed in DELAYEd mode is
intensified. The level of intensity is set by the DISplay:INTENSITy:CONTRast
command.
MAIn means that the waveform is horizontally scaled relative to the main time
base.
HORIZONTAL:MODE DELAYED
uses the delayed horizontal scale to display the waveform.
HORIZONTAL:MODE?
might return INTENSIFIED, indicating that the waveform is displayed using both
the main and delayed time base scale.
HORizontal:POSition
Positions the waveform horizontally on the display. This is used for both main
and delayed time bases. This command is equivalent to adjusting the front-panel
Horizontal Position knob or setting the position in the Horizontal Position side
menu.
Horizontal
HORizontal:POSition <NR3>
Group
Related Commands
Syntax
Arguments
Examples
Group
Syntax
