Command Descriptions
2–200
TDS Family Oscilloscope Programmer Manual
MASK:MASK7:POINTSPCNT 20.4, 10.5, 90, 10.5, 50, 80
defines the points in mask 7.
MASK:SOUrce
TDS 500C & 700C Only
Selects which trace will be compared against the mask(s) when counting is
turned on.
Mask

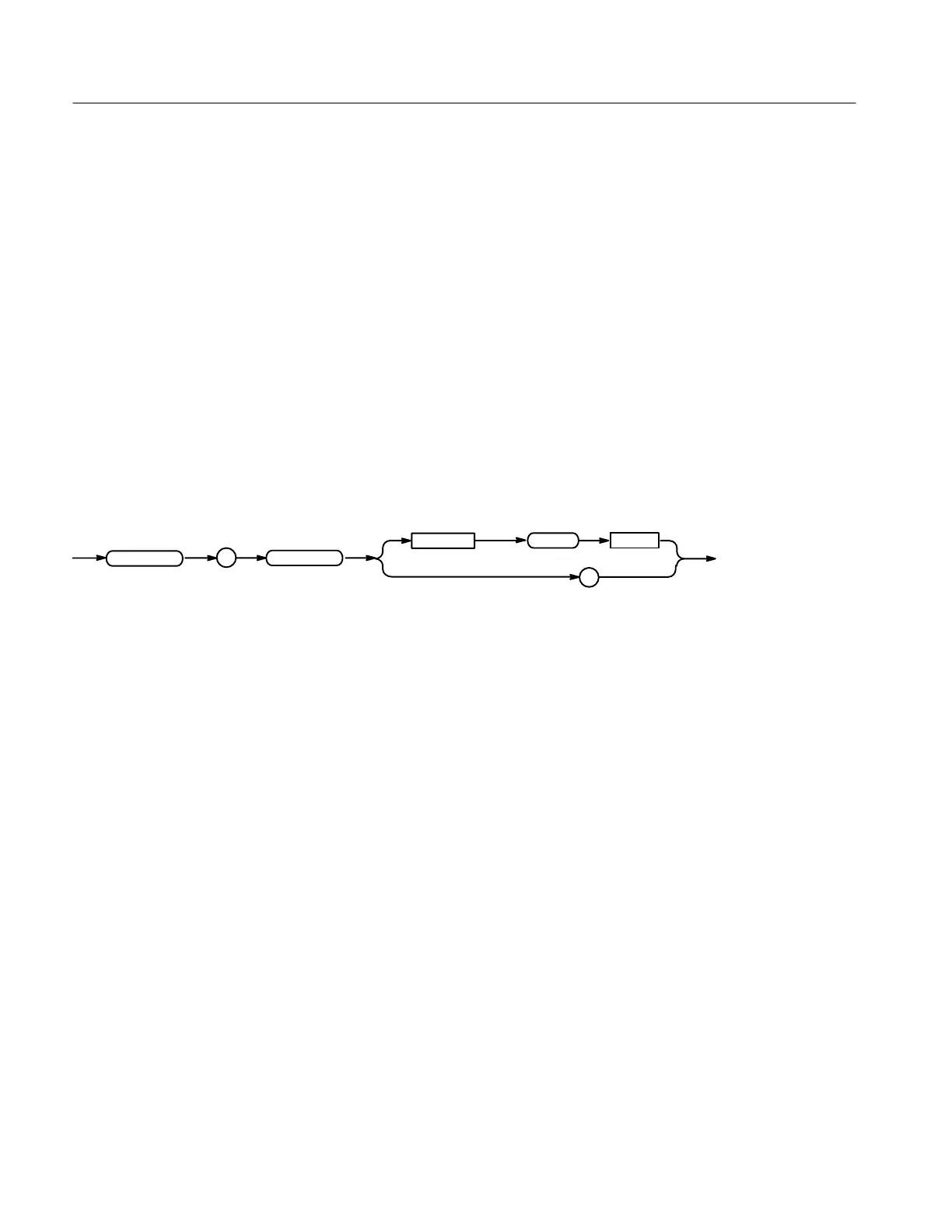

MASK:SOUrce CH<x>
MASK:SOUrce?
:
SOUrce
<Space>
MASK
?
CH <x>
<x> indicates CH #. It may be 1, 2, 3, or 4. 1 is the default.
MASK:SOURCE CH1 would enable CH1 to be compared against the mask.
MASK:STANdard
TDS 500C & 700C Only
Deletes the existing mask and sets the standard mask. The query form queries the
standard mask.
Mask
MASK:STANdard { OC1 | OC3 | OC12 | DS0Single | DS0Double |
DS0Contra | DS0Timing | E1Symmetrical | E1Coax | E2 | E3 | E4_0 |
E4_1 | E5 | STM1E_0 |STM1E_1 | DS1 | DS1A | DS1C | DS2 | DS3 |
DS4NA |DS4NA_Max | STS1Eye | STS1Pulse | STS3 | STS3_Max | FC133
| FC266 | FC531 | FC1063 | FC133E | FC266E | FC531E | FC1063E |
D2 | D1 | FDDI | NONe | USERMask }
MASK:STANdard?
Examples
Group
Syntax
Arguments
Examples
Group
Syntax
