Tektronix TDS 500C Programmer's Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–297
TRIGGER:MAIN:LOGIC:SETHOLD:CLOCK:LEVEL 1.4
sets the main logic trigger setup/hold clock level to 1.4 volts.
TRIGger:MAIn:LOGIc:SETHold:CLOCk:SOUrce
TDS 500C, 600B & 700C Only
Sets or queries the source for the clock for the main logic trigger setup/hold
input. The channel is specified by <x> and is 1, 2, 3, or 4. This is equivalent to
selecting Define Clock from the main Trigger menu and CH1, CH2, CH3, or
CH4 in the resulting side menu.
Trigger
TRIGger:MAIn:LOGIc:CLAss

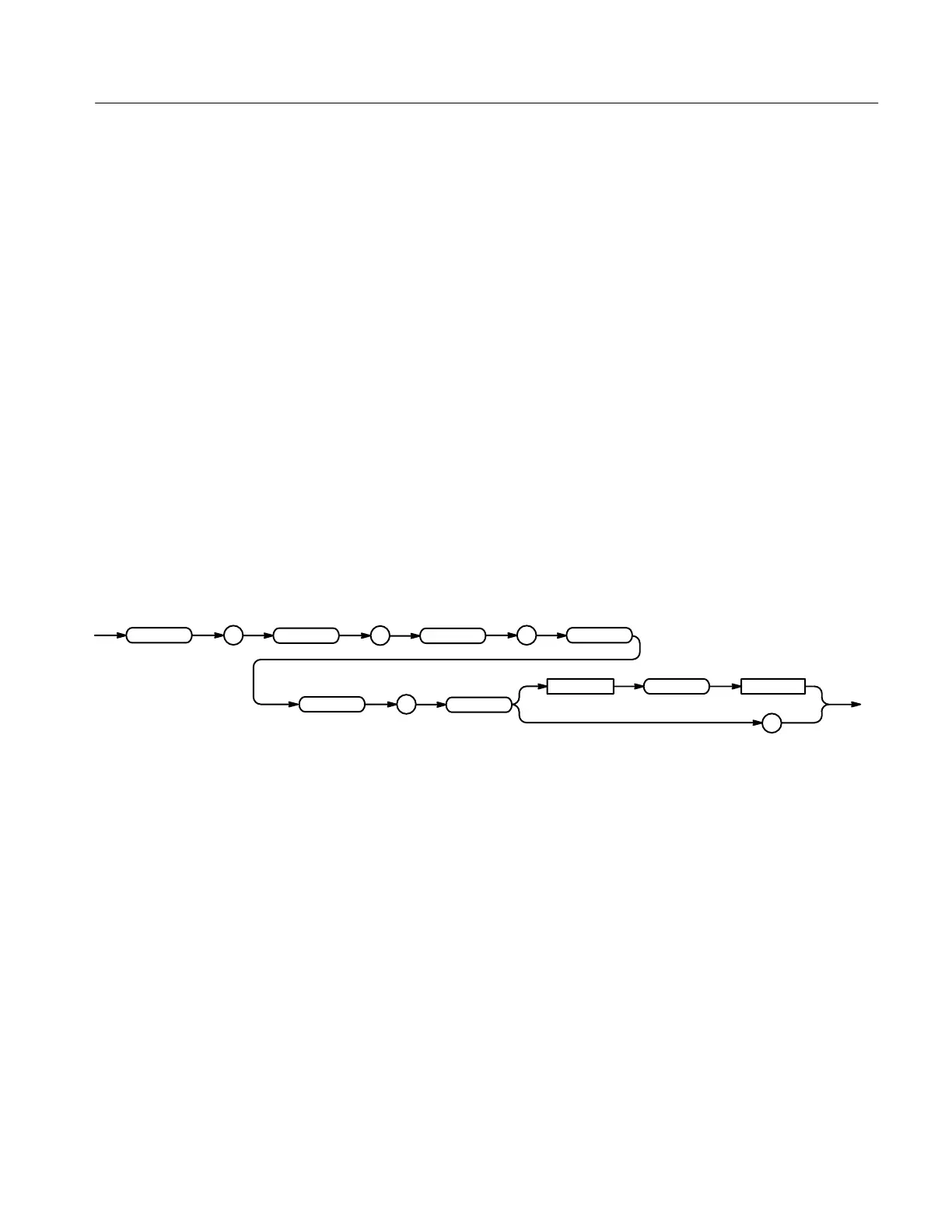

TRIGger:MAIn:LOGIc:SETHold:CLOCk:SOUrce: CH<x>
TRIGger:MAIn:LOGIc:SETHold:CLOCk:SOUrce?
?
<Space> <X>
CH
TRIGger
:
:
LOGIc
MAIn
SETHold
:
CLOCk :
SOUrce
CH<x> specifies one of the input channels (CH1, CH2, CH3, or CH4).
TRIGGER:MAIN:LOGIC:SETHOLD:CLOCK:SOURCE CH2
selects Channel 2 as the clock source for the main logic trigger setup/hold.
TRIGger:MAIn:LOGIc:SETHold:DATa:LEVel
TDS 500C, 600B & 700C only
Sets or queries the main logic set/hold data level. This is equivalent to selecting
Levels from the main Trigger menu and Data Level in the resulting side menu.
Trigger
TRIGger:MAIn:LOGIc:SETHold:DATa:LEVel { ECL | TTL | <NR3> }
Examples
Group
Related Commands
Syntax
Arguments
Examples
Group
Syntax
