<NR3> specifies the cursor position relative to ground, in volts.
CURSOR:HBARS:POSITION1 25.0E-3
positions one of the horizontal cursors at 25.0 mV.
CURSOR:HBARS:POSITION2?
might return -64.0E-3, indicating that one of the horizontal bar cursors is at
–64.0 mV.
CURSor:HBArs:POSITION<x>Pcnt
TDS 400A Only
Sets or queries the position of the horizontal bar cursors (x is either 1 or 2) in
units of % of vertical range.
Cursor
CURSor:HBArs:POSITION<x>Pcnt <NR3>
CURSor:HBArs:POSITION<x>Pcnt?

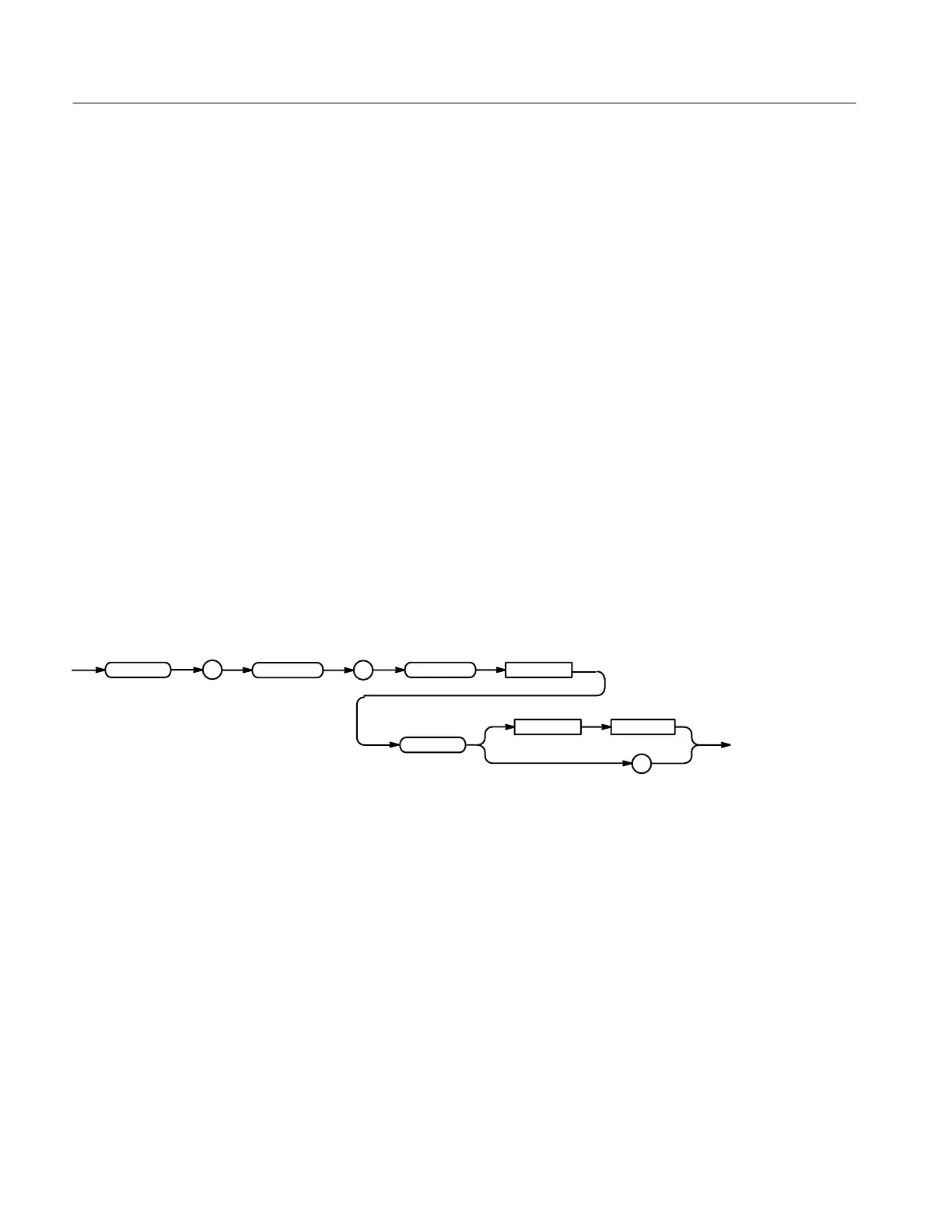

CURSor
:
HBArs :
POSITION
<x>
?
<Space> <NR3>
Pcnt
<NR3> has a range of 0 to 100 (%). It specifies the cursor position relative to the
vertical range of the selected waveform.
CURSOR:HBARS:POSITION1PCNT?
might return 4.50 E+1, indicating cursor 1 is positioned at 45% of the vertical
range of the selected waveform.
Arguments
Examples
Group
Syntax
Arguments
Examples
