Reference
3Ć140
Status
The Status menu lets you see information about the oscilloscope state.
To operate the Status menu:
Press SHIFT STATUS ➞ Status (main) ➞ System, Display, Trigger,
Waveforms, or I/O (side).
Note: some oscilloscopes do not have a main
Status menu. On these instruments, press SHIFT STATUS ➞ System,
Display, Trigger, Waveforms, or I/O (side).
H
System displays information about the Horizontal, Zoom, Acquisition,
Measure, and Hardcopy systems (Figure 3-74). This display also tells you
the firmware version.
H
Display provides parameter information about the display and color
systems.
H
Trigger displays parameter information about the triggers.
H
Waveforms displays information about the various waveforms, including
live, math, and reference.
H
I/O displays information about the I/O port(s).
Firmware
Version

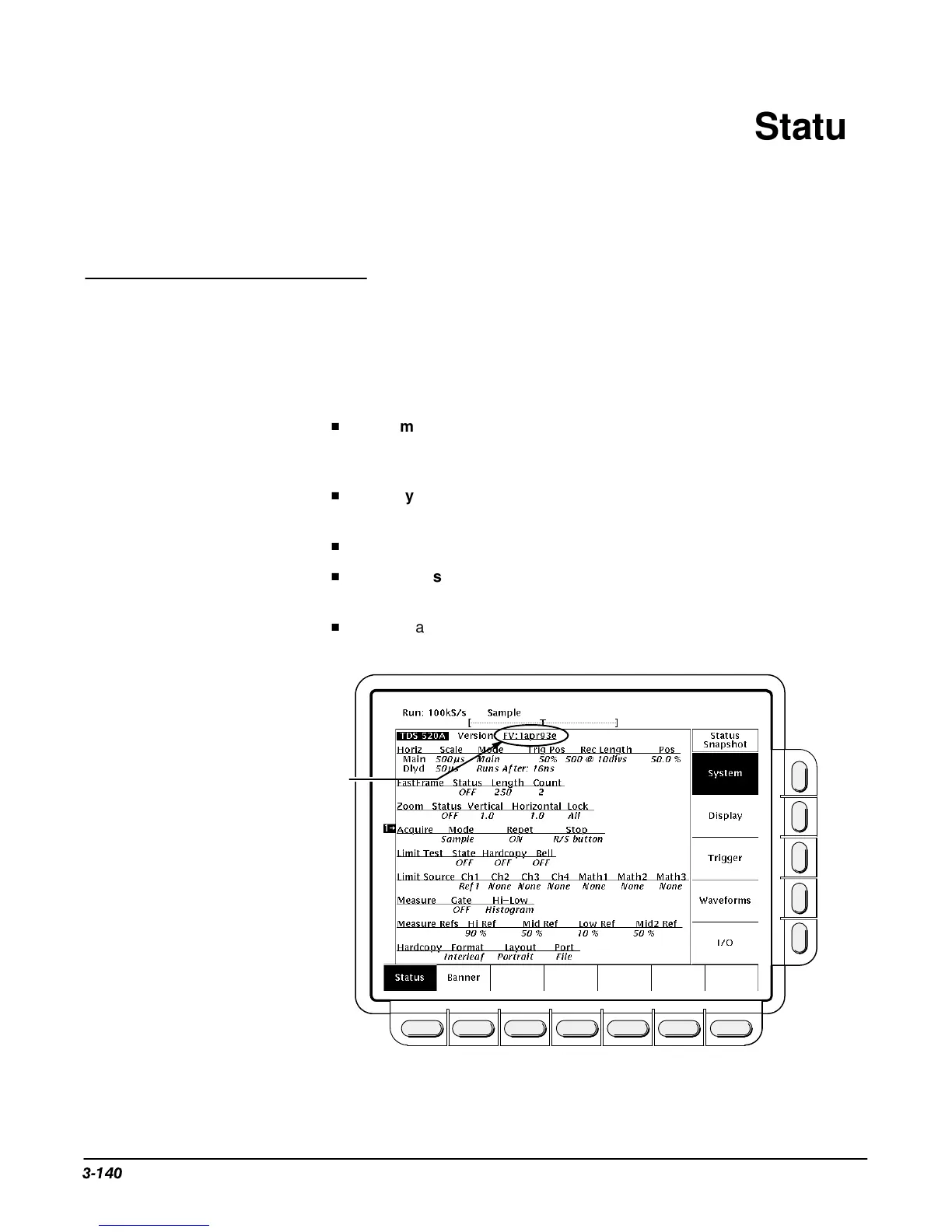

Figure 3-74: Status Menu — System
Operation
