Command Descriptions

2–88

TDS Family Oscilloscope Programmer Manual

DATa:DESTination REF<x>

DATa:DESTination?

DATa

DESTination

REF

REF<x> (REF1, REF2, REF3 or REF4) is the reference memory location where the

waveform will be stored.

DATA:DESTINATION REF3

stores incoming waveform data in reference memory 3.

DATA:DESTINATION?

might return REF2 as the reference memory location that is currently selected.

DATa:ENCdg

Sets or queries the format of the waveform data. This command is equivalent to

setting WFMPre:ENCdg, WFMPre:BN_Fmt, and WFMPre:BYT_Or as shown

in Table 2–27. Setting the DATa:ENCdg value causes the corresponding

WFMPre values to be updated and vice versa.

Waveform

WFMPre:ENCdg, WFMPre:BN.FMT, WFMPre:BYT_Or

DATa:ENCdg { ASCIi | RIBinary | RPBinary | SRIbinary | SRPbinary}

DATa:ENCdg?

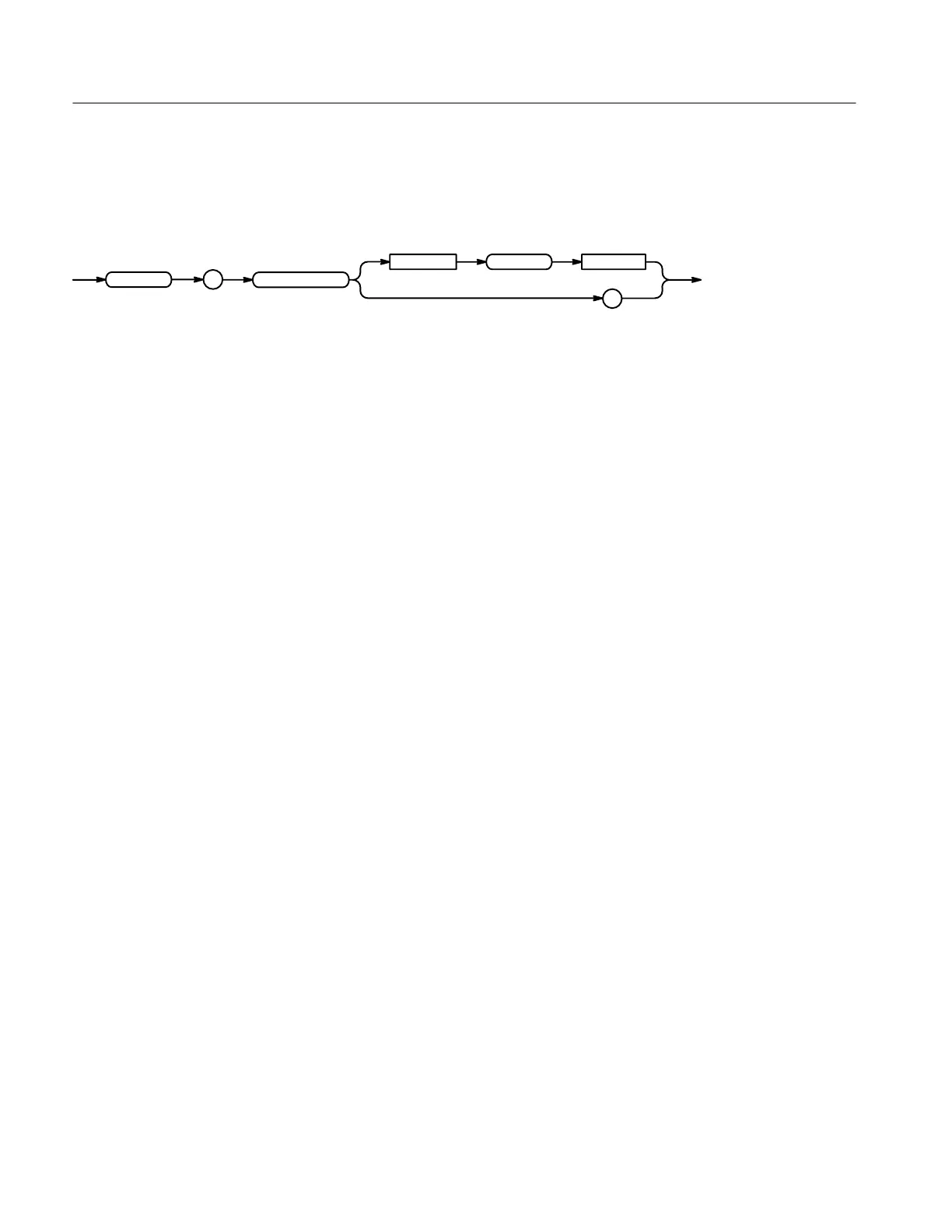

Syntax

Arguments

Examples

Group

Related Commands

Syntax
