Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–93
DATa:DESTINATION command and is included for compatibility with older
Tektronix instruments.
Waveform
CURVe
DATa:WIDth

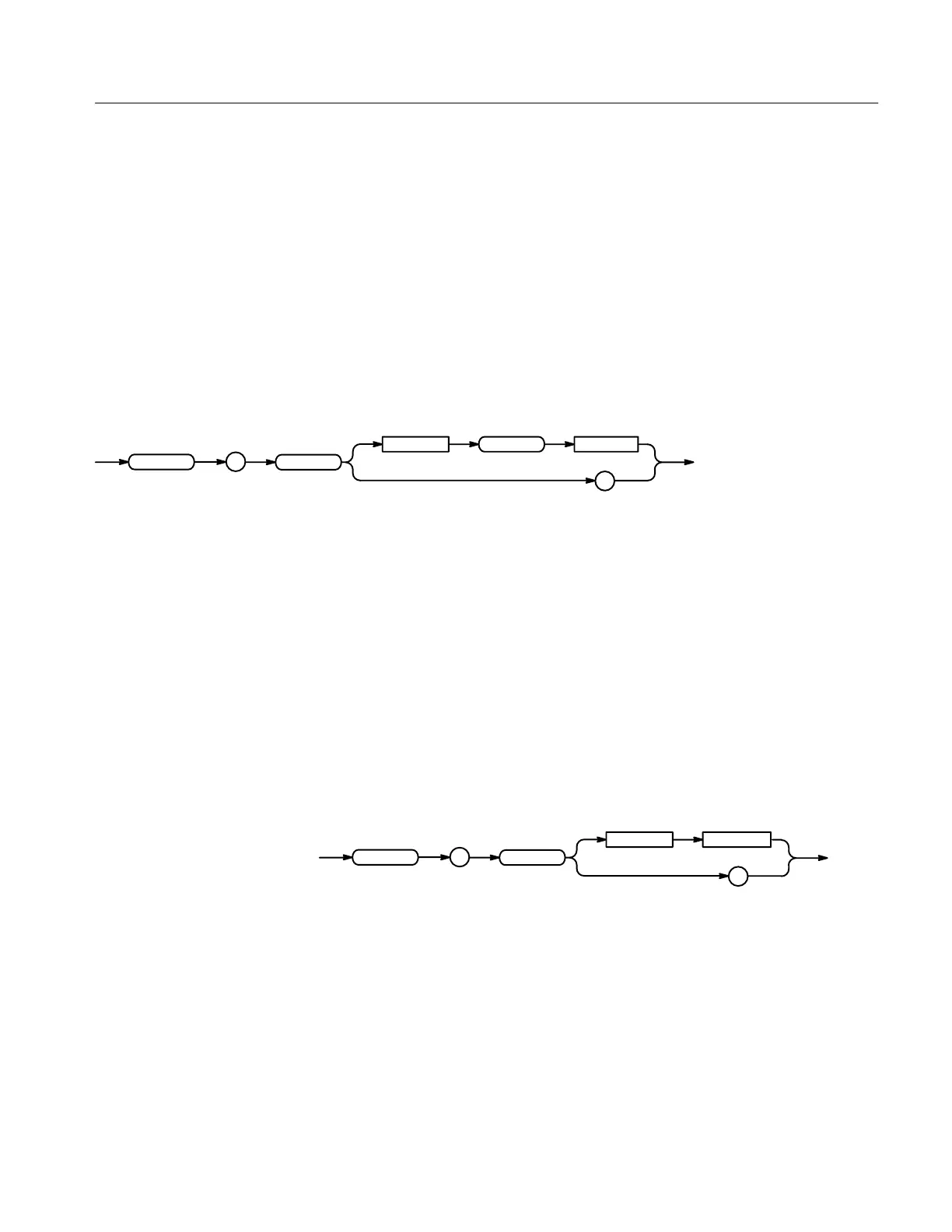

Sets the number of bytes per data point in the waveform transferred using the
CURVe command.
Waveform
CURVe, WFMPre:BIT_Nr, WFMPre:BYT_Nr
= 1 specifies that there is 1 byte (8 bits) per point. This format is useful
when the acquisition mode is set to SAMple, ENVelope, or PEAKdetect (one
byte per point). If used for AVErage or HIRes (two bytes per point), the low
order byte is not transmitted.
= 2 specifies that there are 2 bytes (16 bits) per point. This format is
useful for AVErage and HIRes (two bytes per point) waveforms. If used for
ENVelope, PEAKdetect, or SAMple (one byte per point), the least significant
byte is always zero.
Group
Related Commands
Syntax
Group
Related Commands
Syntax
Arguments
