Command Descriptions

2–98

TDS Family Oscilloscope Programmer Manual

DIAg:RESUlt:LOG?

DIAg:RESUlt:FLAg?

RESUlt

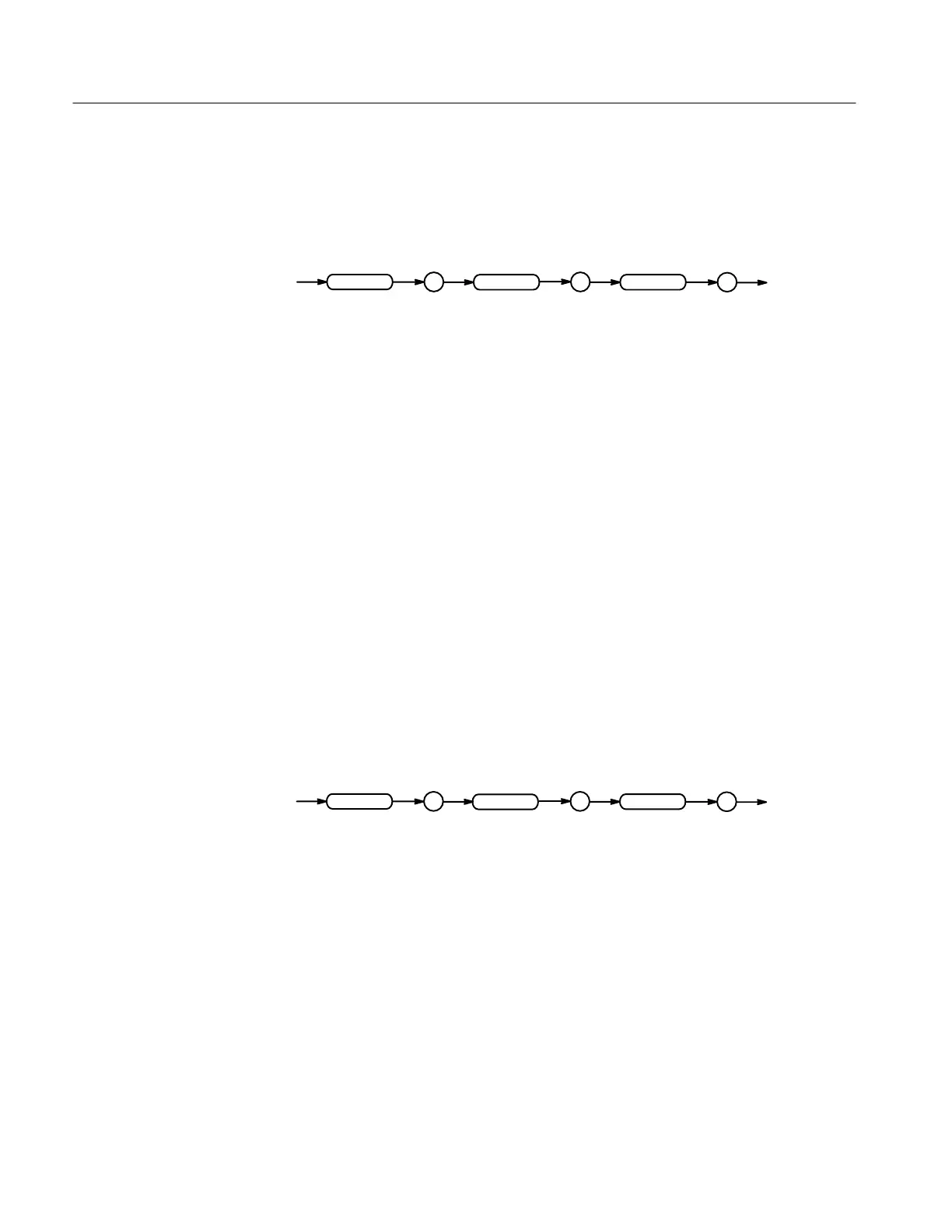

DIAg :

FLAg

PASS indicating that all of the selected diagnostic tests have passed.

FAIl indicating that at least one of the selected diagnostic tests has failed.

DIAG:RESULT:FLAG?

returns either PASS or FAIl.

DIAg:RESUlt:LOG? (Query Only)

Returns the internal results log from the last diagnostic test sequence execution.

The list contains all modules and module interfaces that were tested along with

the pass/fail status of each.

Calibration and Diagnostic

DIAg:RESUlt:FLAg?

DIAg:RESUlt:LOG?

:DIAg :

LOG

RESUlt

<QString> in the following format:

<Status>,<Module name>[,<Status>,<Module name>...]

DIAG:RESULT:LOG?

might return :DIAG:RESULT:LOG "pass--Processor,pass--Display,

pass--FP/Proc Interface,FAIL--Front Panel"

Related Commands

Syntax

Returns

Examples

Group

Related Commands

Syntax

Returns

Examples
