Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–45

Acquisition

ACQuire:STATE, ACQuire:STOPAfter

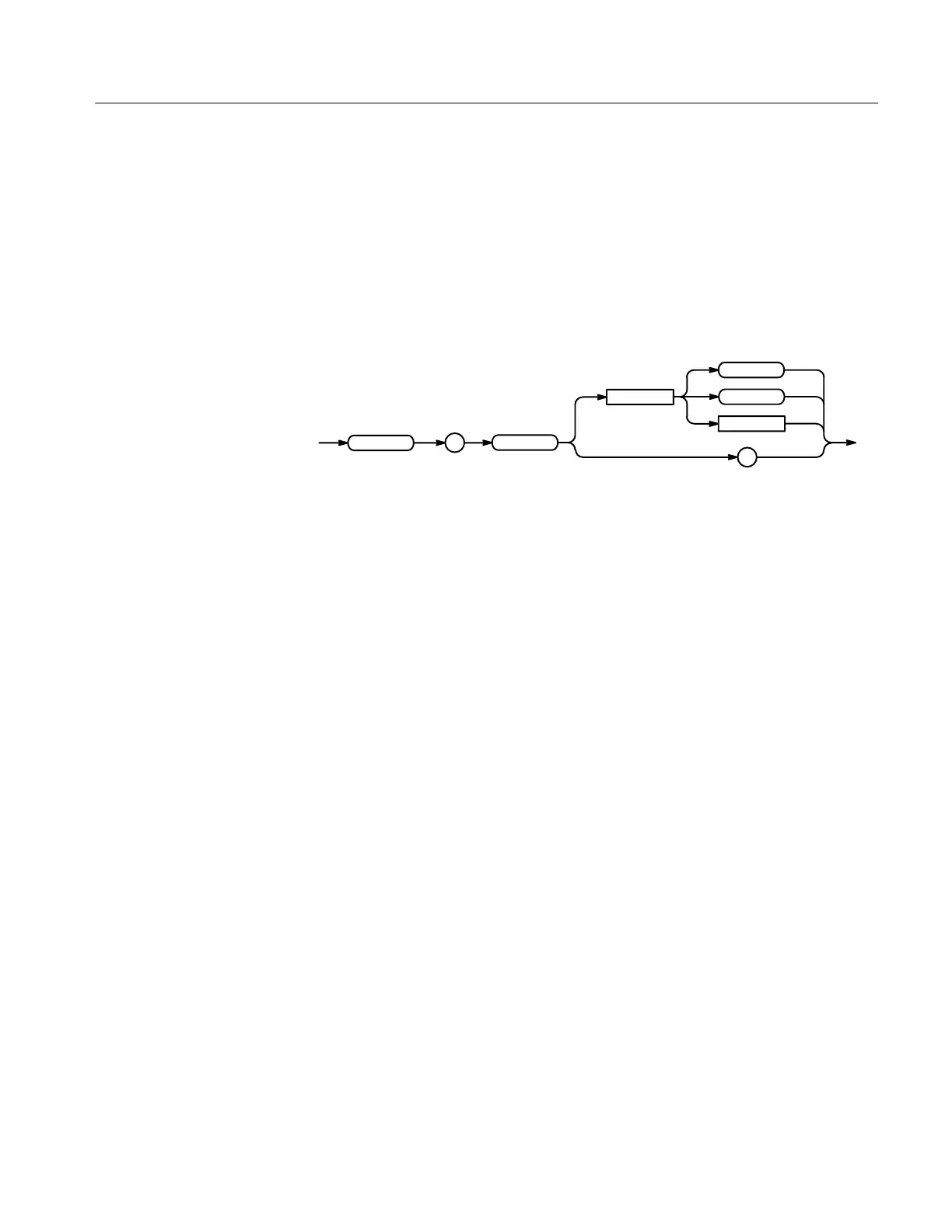

ACQuire:REPEt { OFF | ON | <NR1> }

ACQuire:REPEt?

ACQuire

REPEt

<Space>

<NR1>

OFF

OFF or <NR1> = 0 turns repetitive mode off.

ON or <NR1>  0 turns repetitive mode on.

ACQUIRE:REPET 1

turns repetitive mode on.

ACQUIRE:REPET OFF

turns repetitive mode off.

ACQUIRE:REPET?

might return 1, indicating that repetitive signal acquisition mode is on.

ACQuire:STATE

Starts or stops acquisitions. This is the equivalent of pressing the front-panel

RUN/STOP button. If ACQuire:STOPAfter is set to SEQuence, other signal

events may also stop acquisition.

Acquisition

ACQuire:NUMACq?, ACQuire:REPEt, ACQuire:STOPAfter

ACQuire:STATE { OFF | ON | RUN | STOP | <NR1> }

ACQuire:STATE?

Group

Related Commands

Syntax

Arguments

Examples

Group

Related Commands

Syntax
