Command Descriptions
2–44
TDS Family Oscilloscope Programmer Manual
0 is the number of waveform acquisitions, from 1 to 2000. The
envelope will restart after the specified number of envelopes have been acquired
or when the ACQuire:STATE RUN command is sent.
or = 0 specifies continuous enveloping.
NOTE. If you set the acquisition system to single sequence, envelope mode, and
set the number of envelopes to infinity, the digitizing oscilloscope will envelope a
maximum of 2001 acquisitions.
specifies that an enveloped waveform will show the result of combining 10
separately acquired waveforms.
might return , indicating that acquisitions are acquired infinitely for enveloped
waveforms.
ACQuire:REPEt
TDS 4XXA, 5XXA, & 7XXA Only
Controls repetitive signal acquisition. This is equivalent to setting Repetitive
Signal in the Acquire menu. When the digitizing oscilloscope is in real-time
operation, this setting has no effect.
The ACQuire:REPEt command specifies the behavior of the acquisition system
during equivalent-time (ET) operation. When repetitive mode is on, the
acquisition system will continue to acquire waveform data until the waveform
record is filled with acquired data. When repetitive mode is off and you specify
single acquisition operation, only some of the waveform data points will be set
with acquired data, and the displayed waveform shows interpolated values for
the unsampled data points.

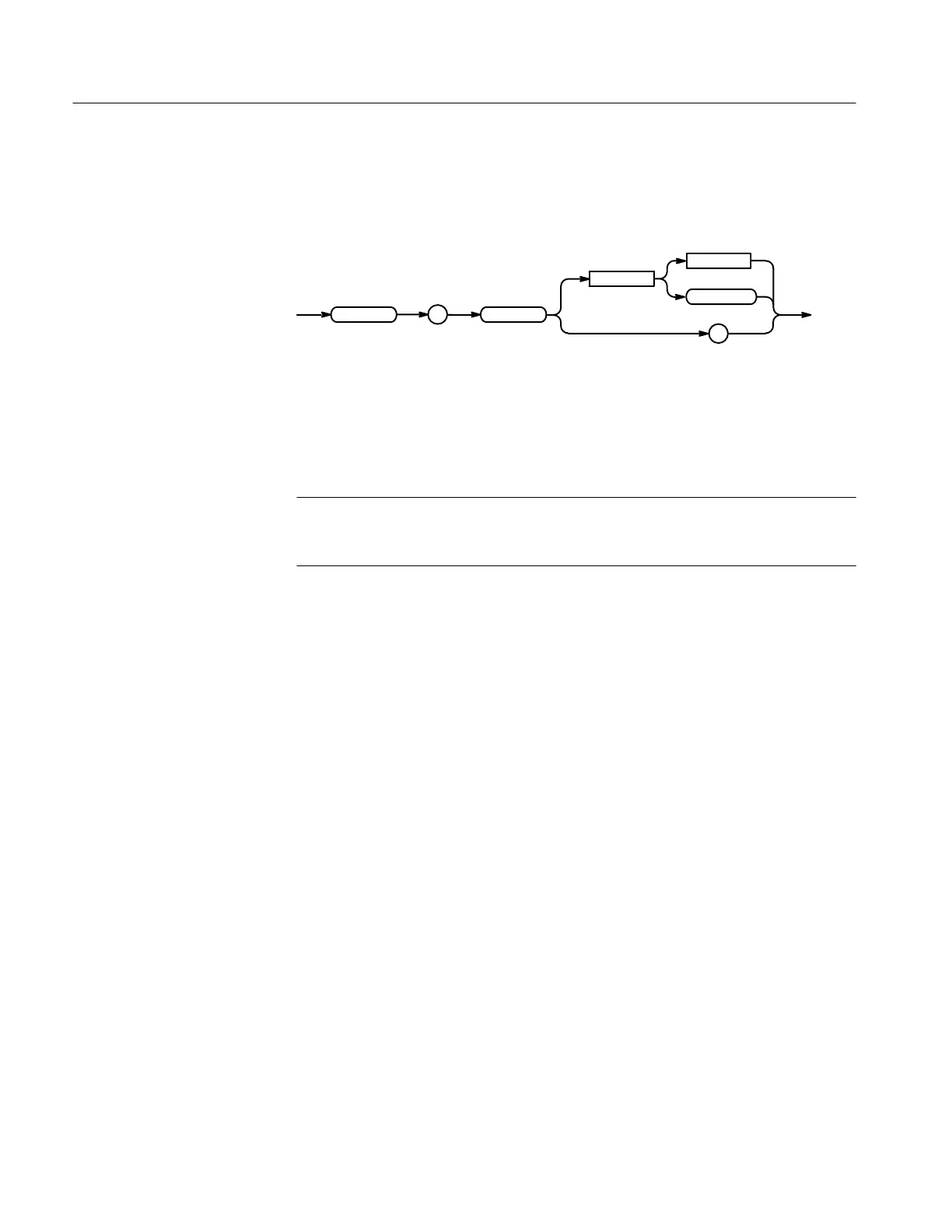

Syntax
Arguments
Examples
