Command Descriptions
2–88
TDS Family Oscilloscope Programmer Manual
Cursor

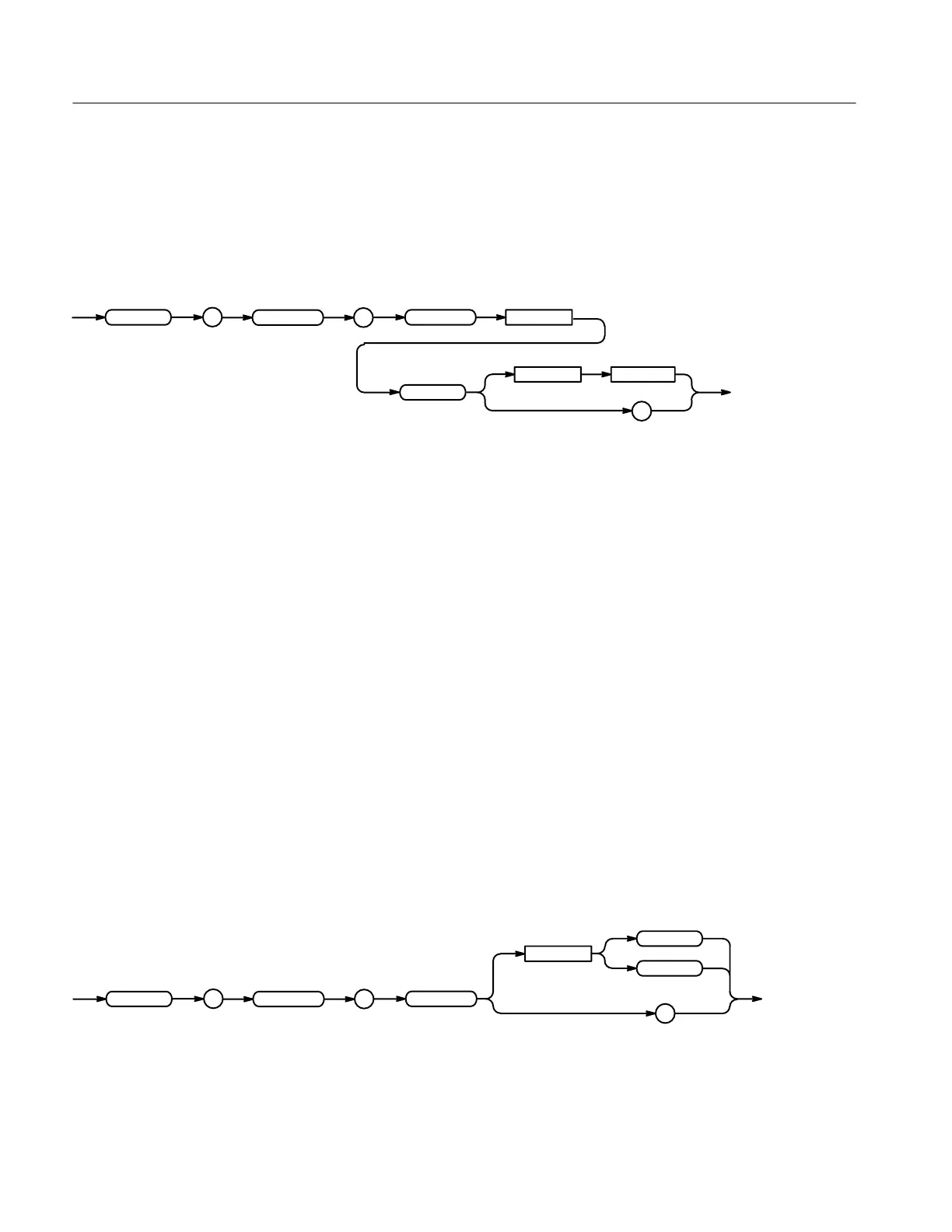

CURSor:PAIred:POSITION<x>Pcnt <NR3>
CURSor:PAIred:POSITION<x>Pcnt?
CURSor
:
PAIred :
POSITION
<x>
?
<Space> <NR3>
Pcnt
<NR3> has a range of 0 to 100 (%). It specifies the cursor position relative to the
record length of the selected waveform.
CURSOR:PAIRED:POSITION1PCNT?
might return 4.50 E+1, indicating cursor 1 is positioned at 45% of the record
length of the selected waveform.
CURSor:PAIred:SELect
Selects the active paired cursor. The active cursor appears as a solid vertical line.
The unselected cursor appears as a dashed vertical line. This command is
equivalent to pressing the SELECT button on the front panel when the Cursor
menu is displayed.
Cursor
CURSor:PAIred:SELect { CURSOR1 | CURSOR2 }
CURSor:PAIred:SELect?
CURSor
:
PAIred
:
SELect
?
<Space>
CURSOR2
CURSOR1
CURSOR1 specifies the first paired cursor.
CURSOR2 specifies the second paired cursor.
Group
Syntax
Arguments
Examples
Group
Syntax
Arguments
