Command Descriptions
2–276
TDS Family Oscilloscope Programmer Manual
TRIGger :
:
MAIn :
<Space>
?
COMMunication
BITRate
<NR3>
<NR3>is the bit rate in bits per second. The default is 1.544e+6.
TRIGGER:MAIN:COMM:BITRATE 1.053 E+8
sets the bit rate to 105.3 Mb/s.
TRIGger:MAIn:COMMunication:CMI:PULSEForm
TDS 500C & 700C Only
Sets or queries the communication trigger CMI pulse form to one of three
possibilities.
Trigger

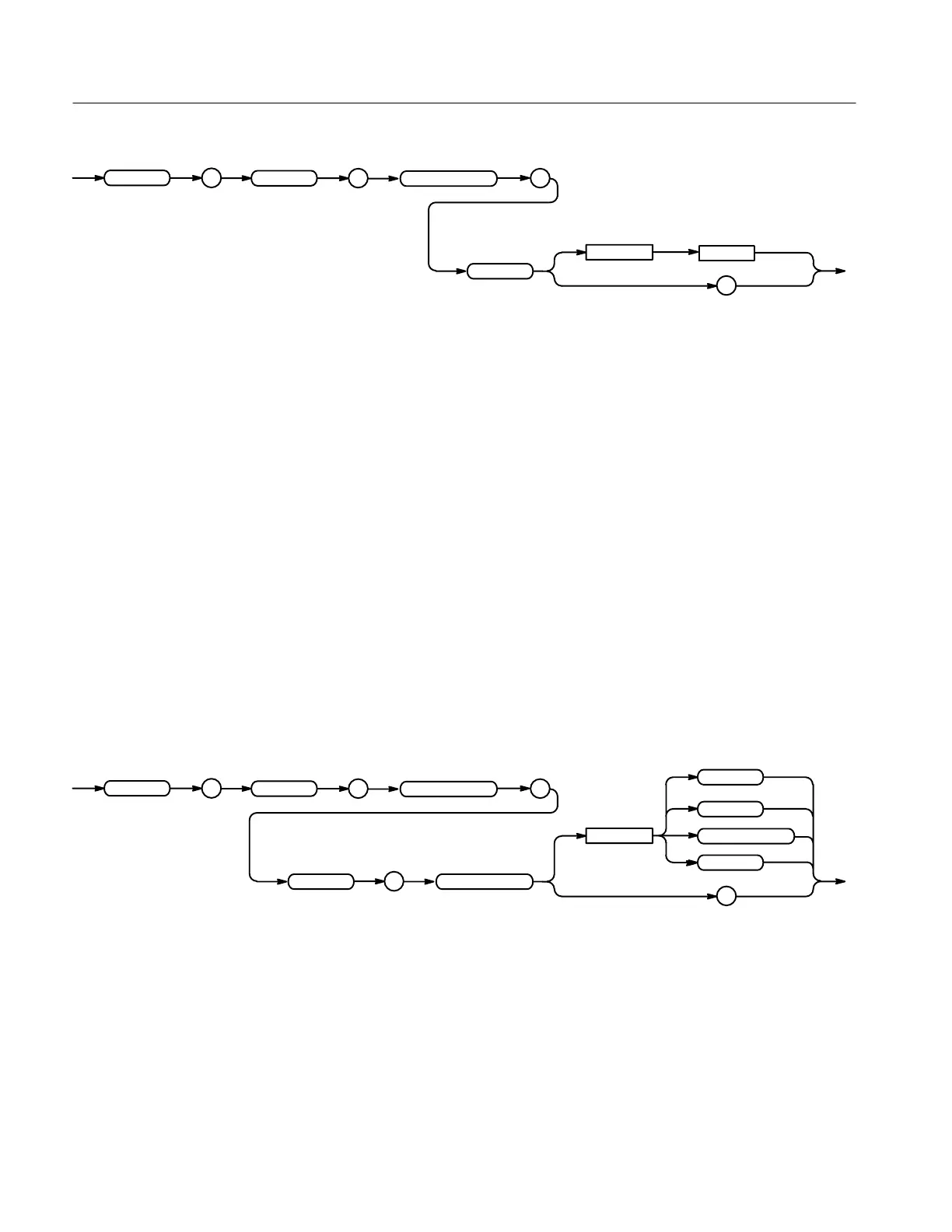

TRIGger:MAIn:COMMunication:CMI:PULSEForm { PLUSOne | MINUSOne |
EYEdiagram | ZERO }
TRIGger:MAIn:COMMunication:CMI:PULSEForm?
TRIGger :
:
MAIn :
<Space>
?
MINUSOne
COMMunication
CMI
EYEdiagram
:
PULSEForm
PLUSOne
ZERO
PLUSOne corresponds to triggering on a positive mark. This is the default value.
MINUSOne corresponds to triggering on a negative mark.
EYEdiagram selects an Eye Diagram image.
ZERO corresponds to triggering on a Zero bit.
Arguments
Examples
Group
Syntax
Arguments
