Tektronix TDS 600B Programmer's Manual

Command Descriptions
2–298
TDS Family Oscilloscope Programmer Manual

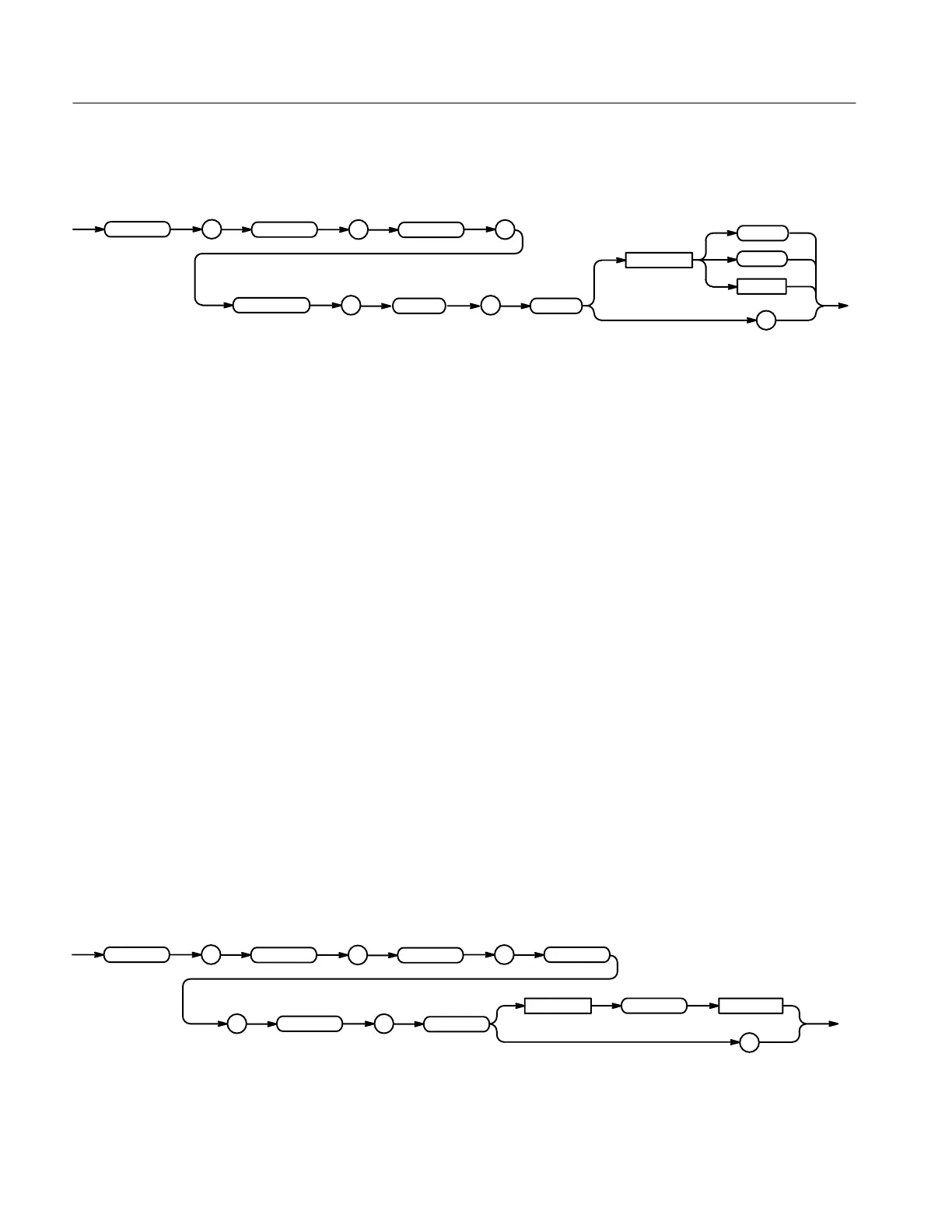

TRIGger:MAIn:LOGIc:SETHold:DATa:LEVel?
<NR3>
<Space>
ECL
?
TTL
TRIGger :
:
LOGIc
MAIn
:
:
SETHold
DATa LEVel
:
ECL specifies a preset ECL level of –1.3 V.
TTL specifies a preset TTL level of 1.4 V.
<NR3> is the main trigger level, in volts.
TRIGGER:MAIN:LOGIC:SETHOLD:DATA:LEVEL 1.4
sets the main logic setup/hold data level to 1.4 volts.
TRIGger:MAIn:LOGIc:SETHold:DATa:SOUrce
TDS 500C, 600B & 700C Only
Sets or queries the data channel for the main logic trigger set/hold input. The
channel is specified by <x> and is 1, 2, 3, or 4. This is equivalent to selecting
Data Source from the main Trigger menu and CH1, CH2, CH3, or CH4 in the
resulting side menu.
Trigger
TRIGger:MAIn:LOGIc:CLAss
TRIGger:MAIn:LOGIc:SETHold:DATa:SOUrce CH<x>
TRIGger:MAIn:LOGIc:SETHold:DATa:SOUrce?
?
<Space> <X>
CH
TRIGger
:
:
LOGIc
MAIn
SETHold
:
DATa :
SOUrce
:
CH<x> specifies one of the input channels (CH1, CH2, CH3, or CH4)
Arguments
Examples
Group
Related Commands
Syntax
Arguments
