Saving Waveforms and Setups
TDS 500C, TDS 600B, & TDS 700C User Manual
3–155
To save a waveform, do the following steps:
1. Select the channel that has the waveform you want to save.
STOP. Before doing step 2 that follows, note that if you choose a reference
memory location labeled active (see Figure 3–72), you will overwrite the
waveform that was previously stored there. You can store waveforms in reference
locations labeled empty without disturbing previously stored waveforms.
2. TDS 600B: To store a waveform internally, press SAVE/RECALL
WAVEFORM ➞ Save Wfm (main) ➞ To Ref1, To Ref2, To Ref3, or To
Ref4 (side).
3. TDS 500C and TDS 700C: To store a waveform internally, press SAVE/RE-
CALL WAVEFORM ➞ Normal (pop-up) ➞ Save Wfm (main) ➞ To
Ref1, To Ref2, To Ref3, or To Ref4 (side).

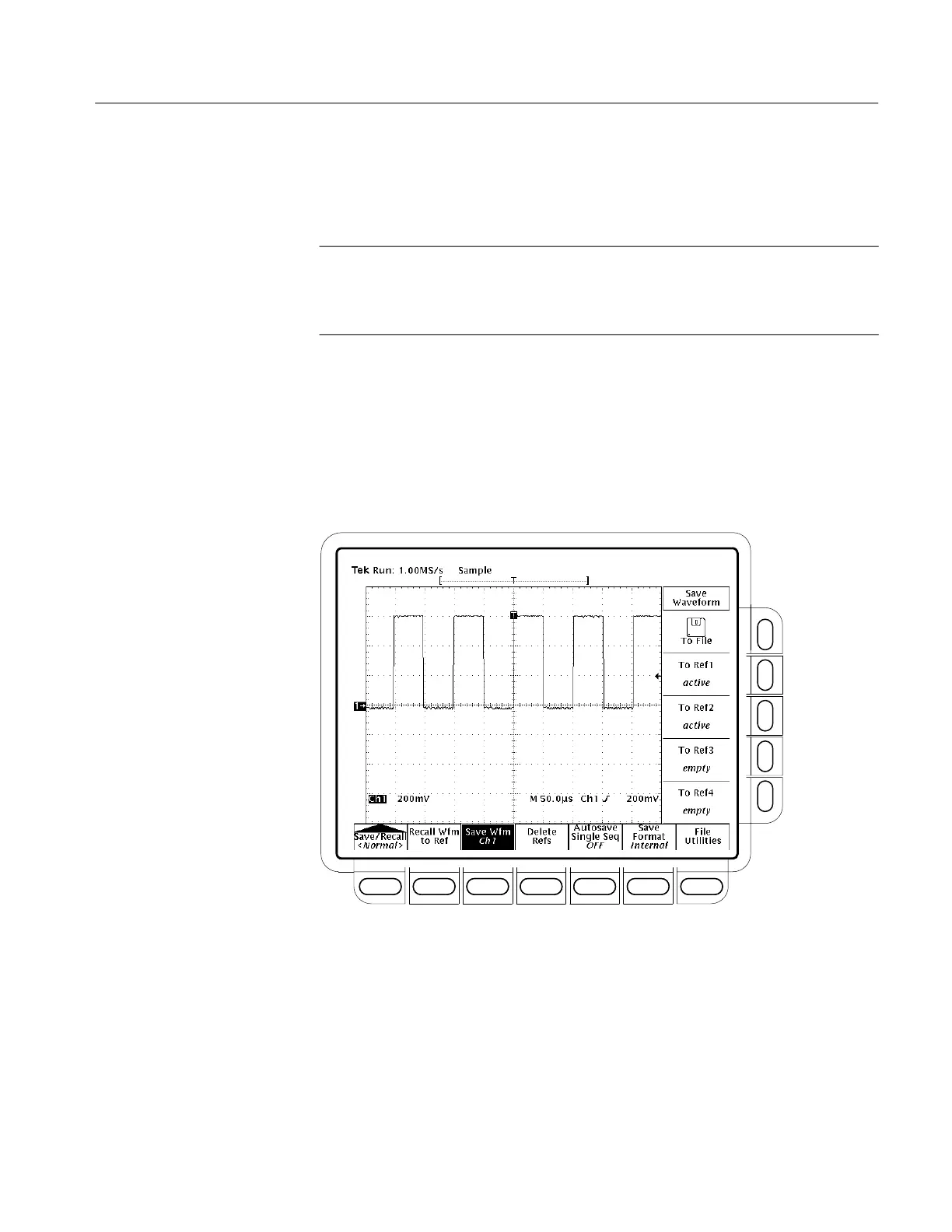

Figure 3–72: Save Waveform Menu
To Save a Waveform
