Saving Waveforms and Setups
3–158
TDS 500C, TDS 600B, & TDS 700C User Manual
To remove all stored reference waveforms and setups, use the feature called Tek
Secure. See To Delete All Setups and Waveforms on page 3–153.
To display a waveform in internal reference memory:
Press MORE ➞ Ref1, Ref2, Ref3, or Ref4 (main). (See Figure 3–73.)
Note that in Figure 3–73, the main menu items Ref2, Ref3, and Ref4 appear
shaded while Ref1 does not. References that are empty appear shaded in the
More main menu.

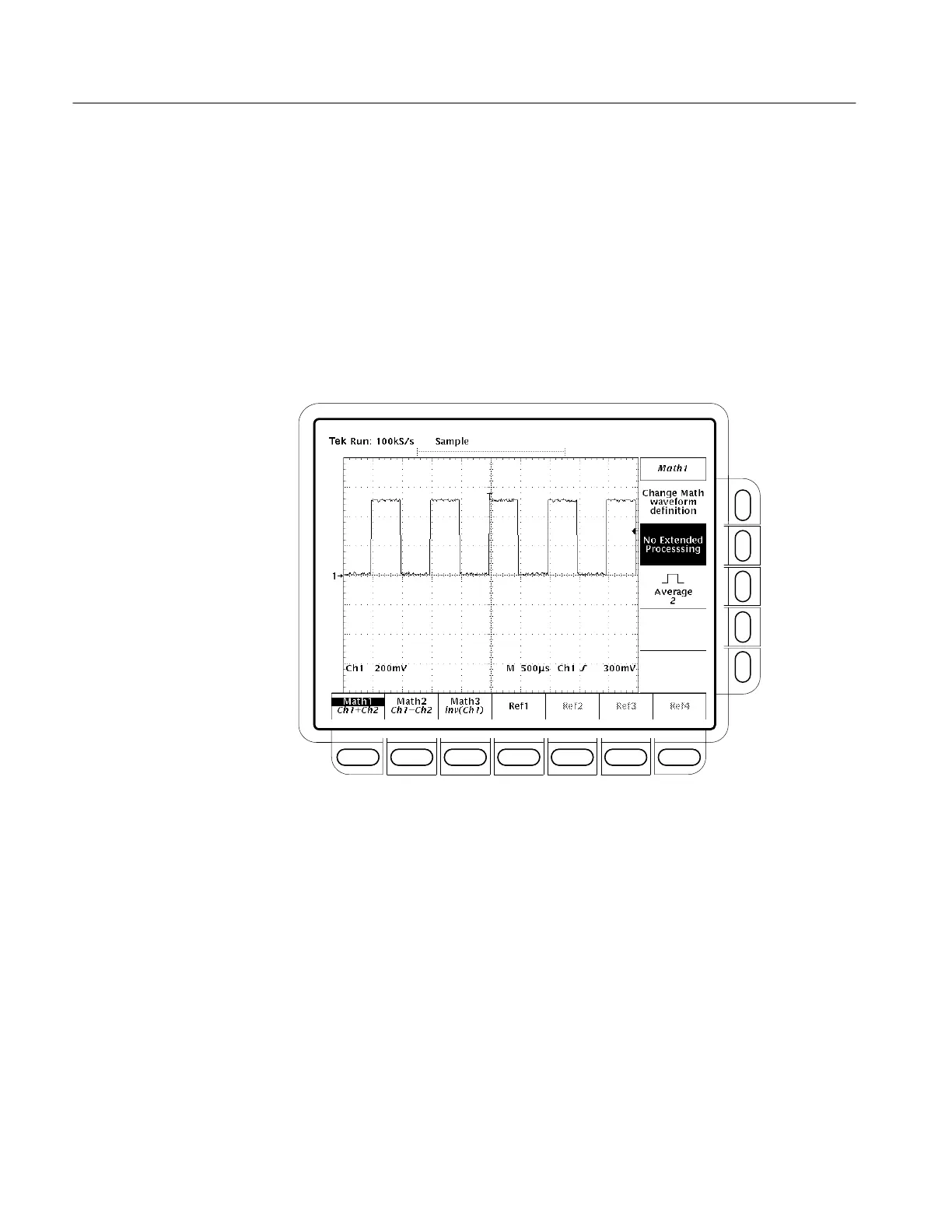

Figure 3–73: More Menu
To recall a waveform from disk to an internal reference memory:
TDS 600B: Press SAVE/RECALL WAVEFORM ➞ Recall Wfm To
Ref (main) ➞ Recall From File (side).
To Delete All Waveforms
and Setups
To Display a
Saved Waveform
To Recall a Waveform
From Disk
