Saving Waveforms and Setups
3–176
TDS 500C, TDS 600B, & TDS 700C User Manual

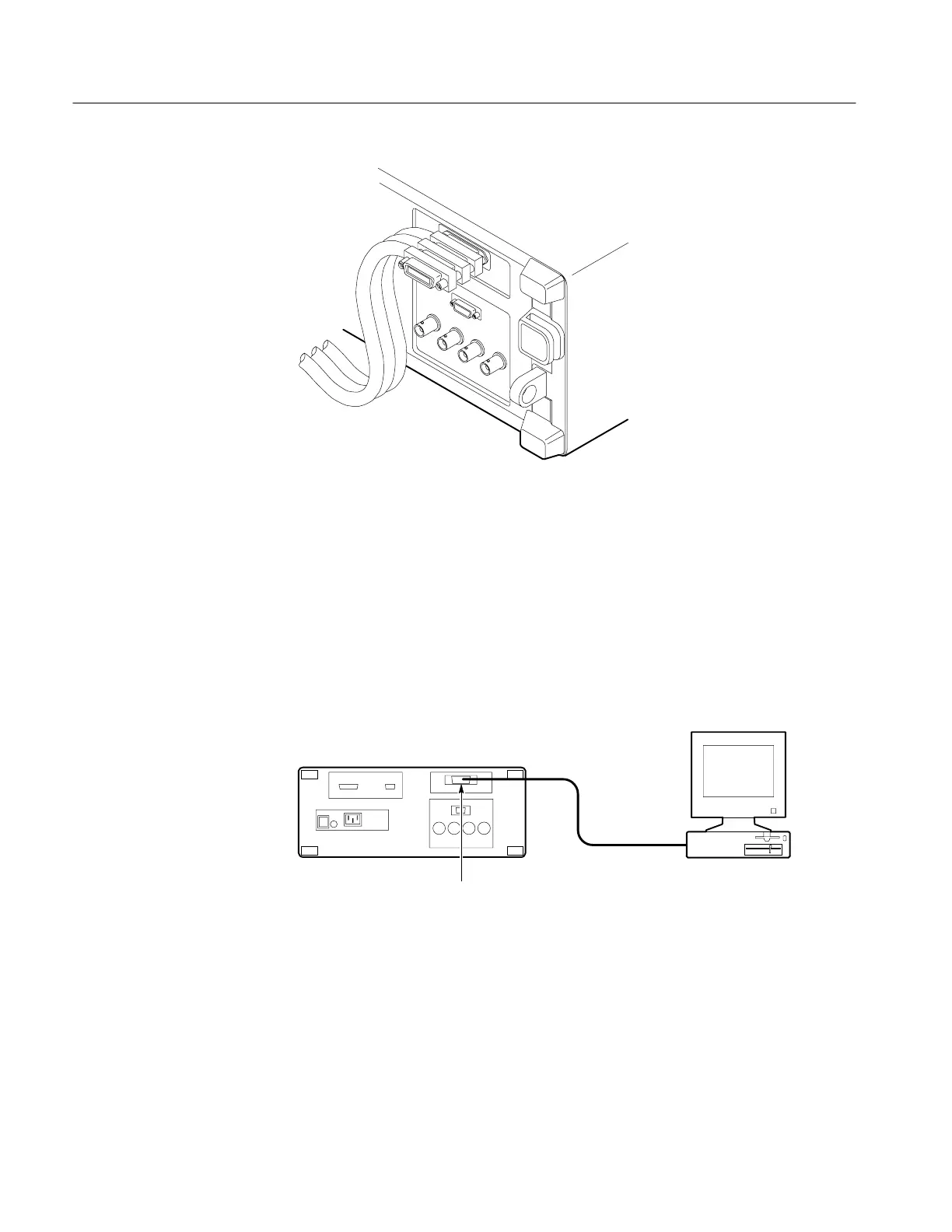

Figure 3–82: Stacking GPIB Connectors
To set up remote communications, be sure your setup will meet GPIB protocol
and interface requirements just described. Then do the following procedures.
Connect the Oscilloscope to the GPIB. To connect the oscilloscope, plug an IEEE
Std 488.2-1987 GPIB cable into the GPIB connector on the oscilloscope rear
panel and into the GPIB port on your controller. (See Figure 3–83.)
Digitizing Oscilloscope (Rear Panel)
Controller
GPIB Connector
Figure 3–83: Connecting the Oscilloscope to a Controller
Select GPIB Port. To select the GPIB port, press SHIFT ➞ UTILITY ➞
System (main) ➞ I/O (pop-up) ➞ Port (main) ➞ GPIB (pop-up).
To Set Up for Remote
Operation
