Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–157

*IDN

The instrument id in the following format:

TEKTRONIX,<model number>,0,CF:92.1CT FV:<firmware version

number>

*IDN?

might return the response

TEKTRONIX,TDS 544A,0,CF:92.1CT FV:2.0

LIMit:BELl

Rings the bell when the waveform data exceeds the limits set in the limit test, if

the limit state is on.

Limit Test

LIMit:COMPARE:CH<x>, LIMit:STATE

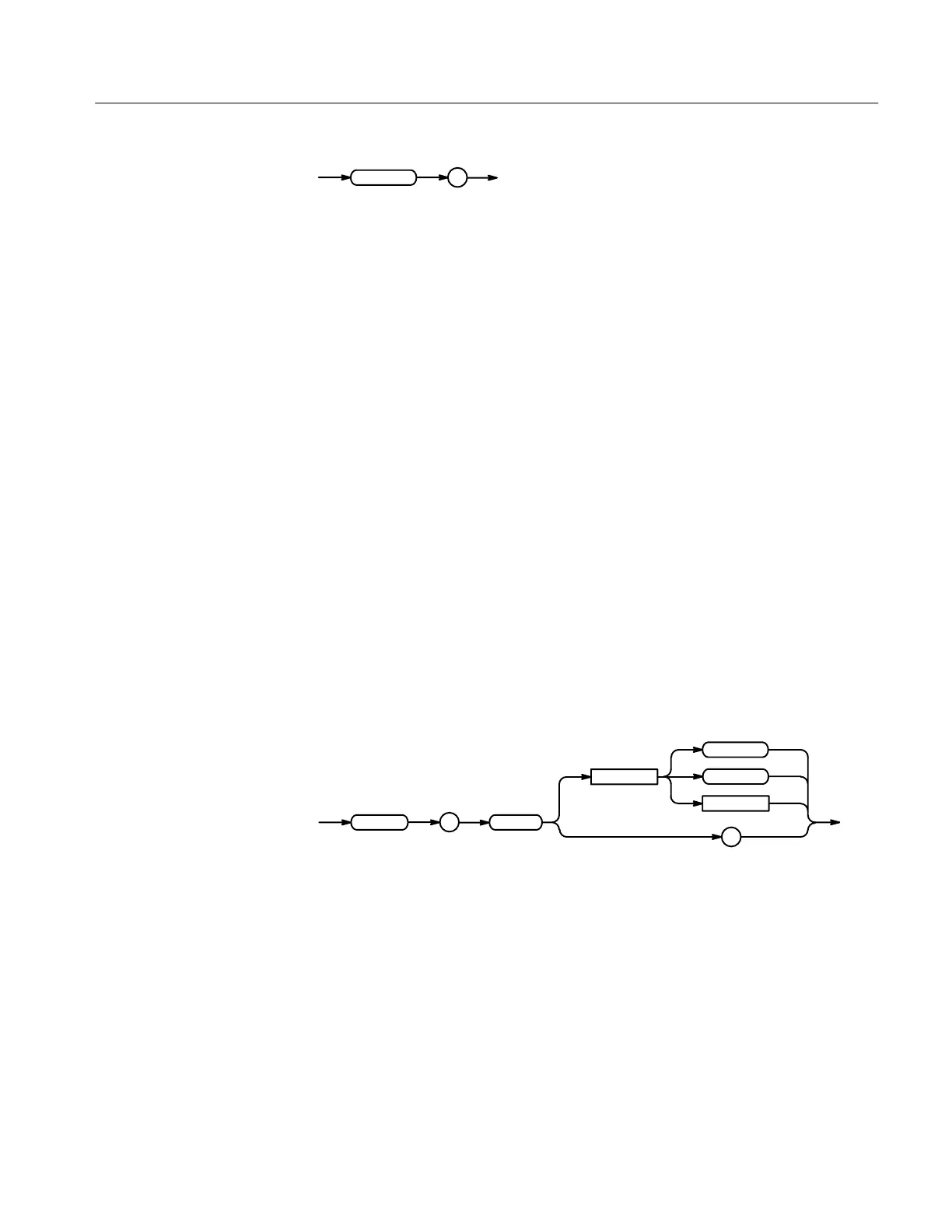

LIMit:BELl { OFF | ON | <NR1> }

LIMit:BELl?

BELl

LIMit

<Space>

<NR1>

OFF

OFF or <NR1> = 0 turns off ringing the bell when any waveform data exceeds the

limits set by the limit test.

ON or <NR1>  0 turns on ringing the bell.

LIMit:BELl ON

specifies that the bell is to ring when any waveform data exceeds the limits

specified in the limit test.

Returns

Examples

Group

Related Commands

Syntax

Arguments

Examples
