Tektronix TDS 620A - Figure 2-4: Message Window Coordinates

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–197
 






   
 and  = 0 to 640, and are pixel positions along the horizontal axis. 
defines the left and  defines the right side of the window.
 and  = 0 to 480, and are pixel positions along the vertical axis. 
defines the top and  defines the bottom of the window. The reserved height
of all characters is 15 pixels so the window must be at least that high to fully
display characters. For a complete list of character widths in pixels, see Table
A–1 on page A–1. Shorter windows clip characters.
Figure 3-1 shows the coordinate system relative to the screen.
0
34
84
480
134
184
234
284
334
384
434
0
24 74
124 174 224 274 324 374 424 474 524 640

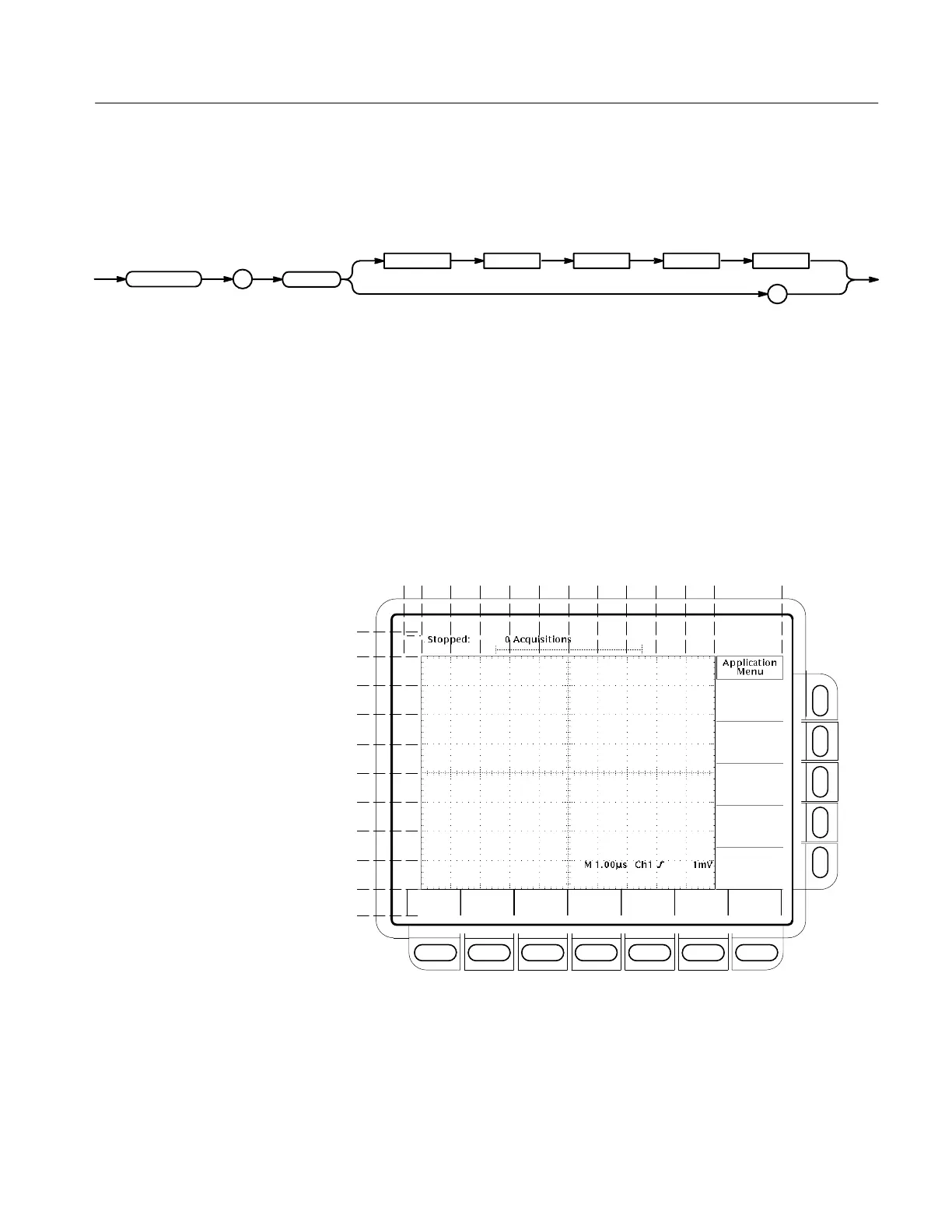

Figure 2–4: Message Window Coordinates
Syntax
Arguments
