To Next Page

To Previous Page

Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–303

ZOOM?

might return :ZOOM:STATE OFF;HORIZONTAL:SCALE 2.00E+0;POSITION

500.0E-3;LOCK LIVE;:ZOOM:VERTICAL:SCALE 2.0E+0;POSITION 0.0E+0.

ZOOm:DUAl

TDS 4XXA & 7XXA Only

Turns Dual Zoom mode on and off.

Zoom

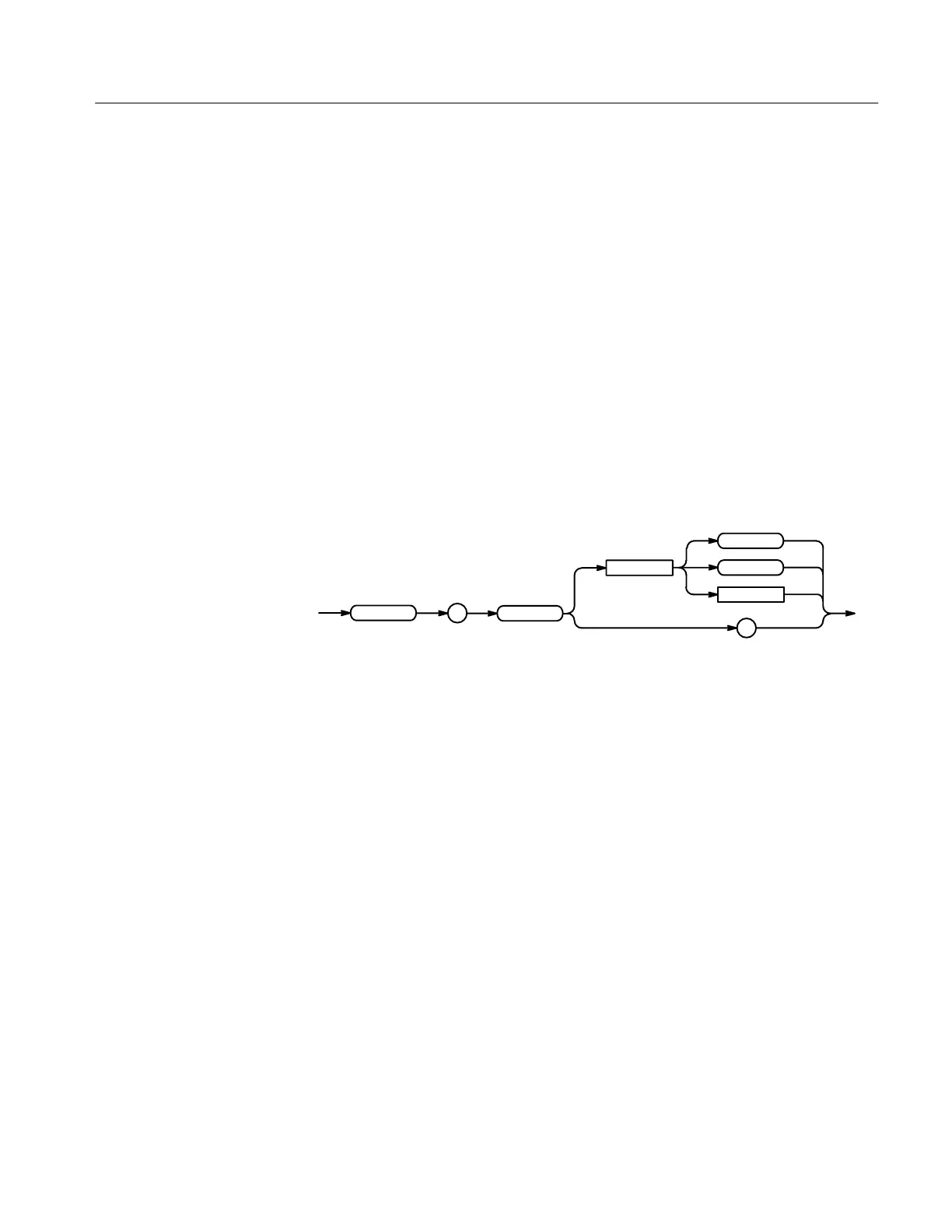

ZOOm:DUAl { OFF | ON | <NR1> }

ZOOm:DUAl?

ZOOm

<Space>

OFF

<NR1>

DUAl

OFF or <NR1> = 0 turns Dual Zoom mode off.

ON or <NR1>  0 turns Dual Zoom mode on.

ZOOM:DUAL ON

enables the Dual Zoom feature.

ZOOM:DUAL?

returns either 0 or 1 depending on the state of Dual Zoom mode.

ZOOm:DUAl:OFFSet

TDS 4XXA & 7XXA Only

Adjusts the requested horizontal offset between the centers of the main and

second zoom boxes.

Zoom

ZOOm:DUAl:OFFSet <NR3>

Examples

Group

Syntax

Arguments

Examples

Group

Syntax
