Command Descriptions

2–180

TDS Family Oscilloscope Programmer Manual

<NR3>

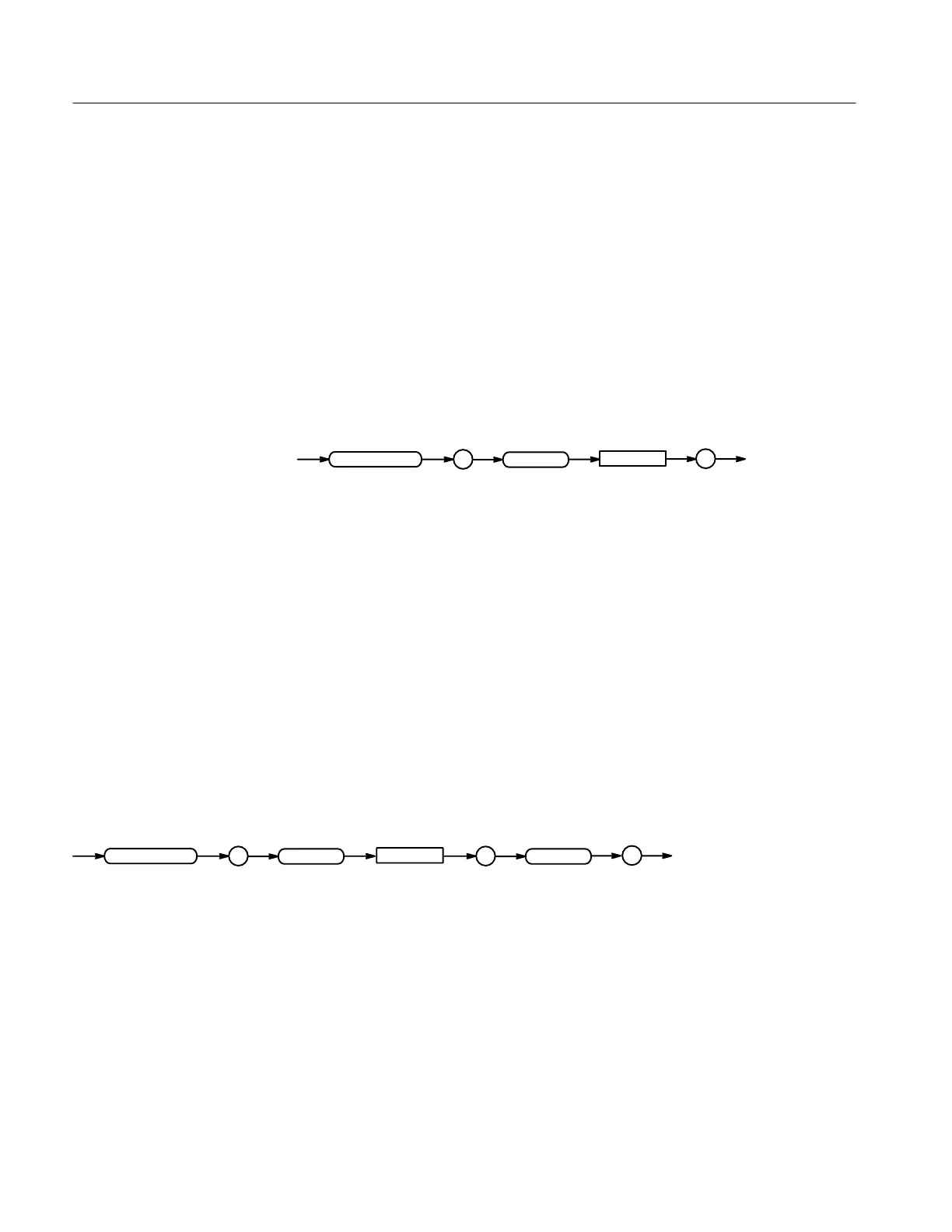

MEASUrement:MEAS<x>? (Query Only)

Returns all measurement parameters for the displayed measurement specified by

<x>.

Measurement

MEASUrement:MEAS<x>?

:MEASUrement

MEAS

<x> ?

MEASUREMENT:MEAS3?

might return :MEASUREMENT:MEAS3:STATE 0;TYPE PERIOD;

UNITS "s";SOURCE1 CH1;SOURCE2 CH2;DELAY:EDGE1 RISE;

EDGE2 RISE;DIRECTION FORWARDS.

MEASUrement:MEAS<x>:DELay? (Query Only)

Returns the delay measurement parameters for the measurement specified by

<x>.

Measurement

MEASUrement:MEAS<x>:DELay?

:MEASUrement

MEAS

<x> ?

DELay

MEASUREMENT:MEAS3:DELAY?

might return :MEASUREMENT:MEAS3:DELAY:EDGE1 RISE;

EDGE2 RISE;DIRECTION FORWARDS.

MEASUrement:MEAS<x>:DELay:DIREction

Sets or queries the starting point and direction that determines the delay “to”

edge when taking a delay measurement. The waveform is specified by

Returns

Group

Syntax

Examples

Group

Syntax

Examples
